Description

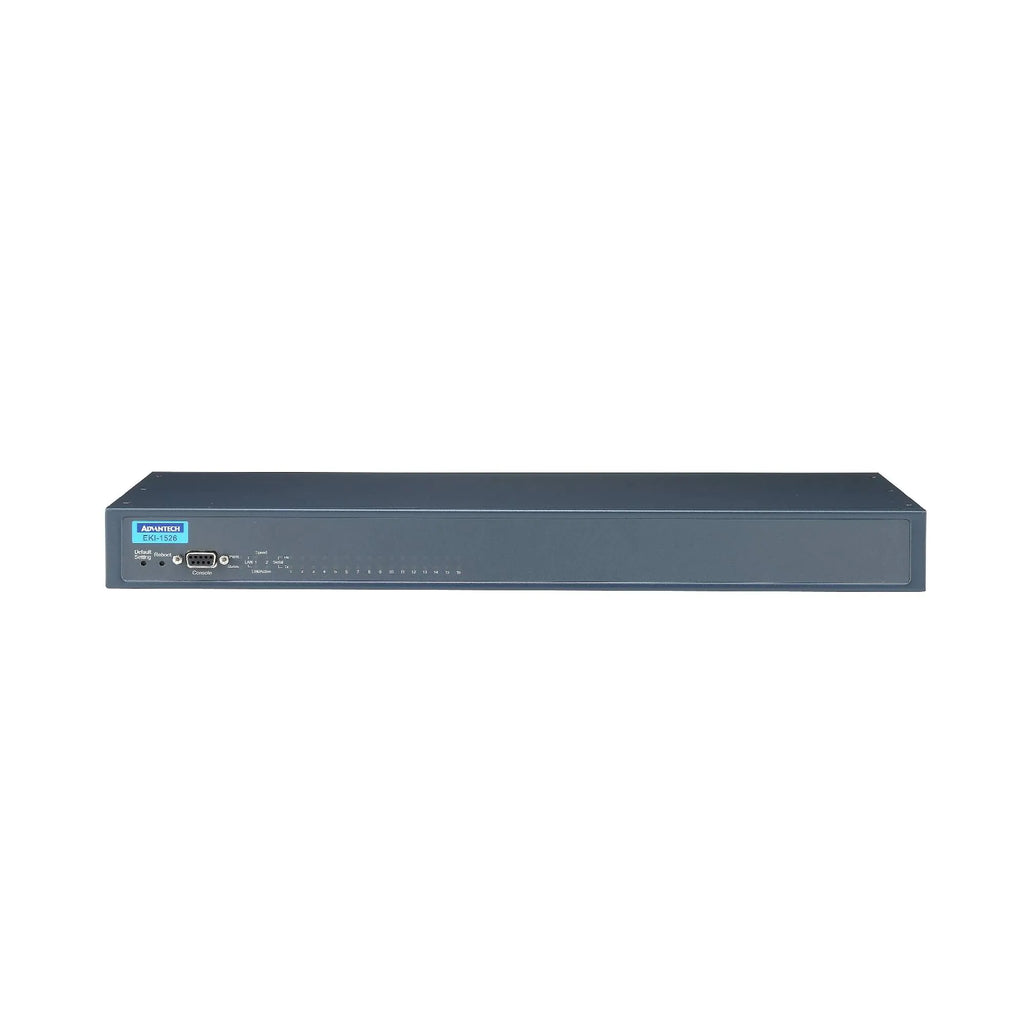

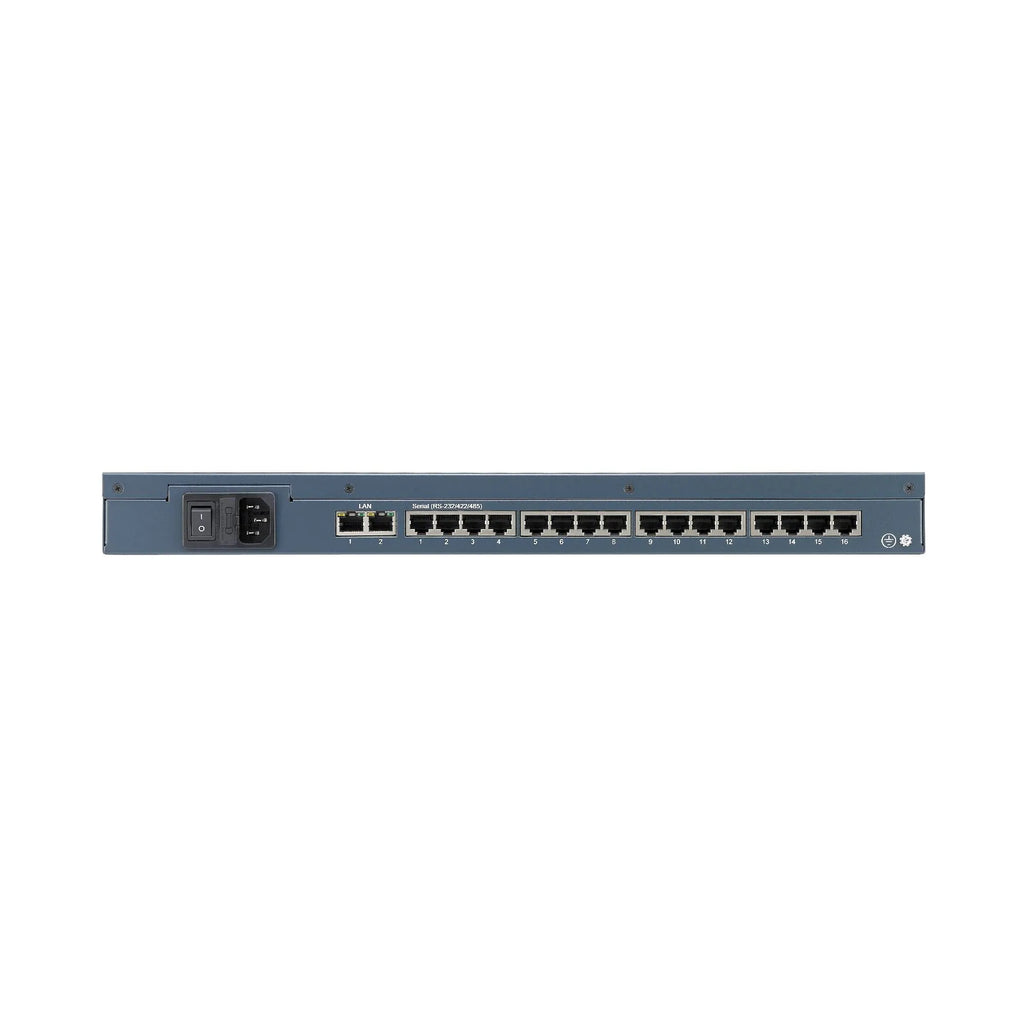

The Advantech EKI-1526N-CE is an industrial-grade 16-port serial device server designed to connect legacy RS-232/422/485 equipment directly to modern Ethernet networks. Built for reliable industrial communication, it features dual Gigabit Ethernet ports for LAN redundancy, multiple operation modes including Virtual COM, TCP/UDP server/client, and advanced remote management through web, Telnet, and Windows utility tools. With built-in 15kV ESD protection, SNMP network management support, and a standard 1U rackmount form factor, the EKI-1526N-CE is ideal for integrating CNC machines, PLCs, scanners, scales, and other serial-based devices into secure TCP/IP infrastructures.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | EKI-1526N-CE |
| Product Type | Serial Device Server |
| Serial Ports | 16 x RS-232/422/485 (RJ45 connector) |
| Ethernet Ports | 2 x 10/100/1000 Mbps Gigabit Ethernet |
| Network Redundancy | Dual LAN with independent MAC addresses |
| Operation Modes | Virtual COM, TCP/UDP Server, TCP/UDP Client, Pair Connection, RFC2217 |
| Supported Protocols | ARP, ICMP, IPv6, TCP, UDP, DHCP, SNMP, HTTP, DNS, SMTP, NTP |
| Protection | 15 kV ESD protection on all serial signals |
| Management | SNMP MIB-II, Web Browser, Telnet Console, Windows Utility |
| Mounting | Standard 1U Rackmount (Rear Wiring) |
| Dimensions (W x H x D) | 438 x 43.6 x 259.2 mm |
| Operating Temperature | -10°C to 60°C |
| Power Input | 100–240 VAC, 50–60 Hz |
| Power Consumption | 5.6 W |
