Description

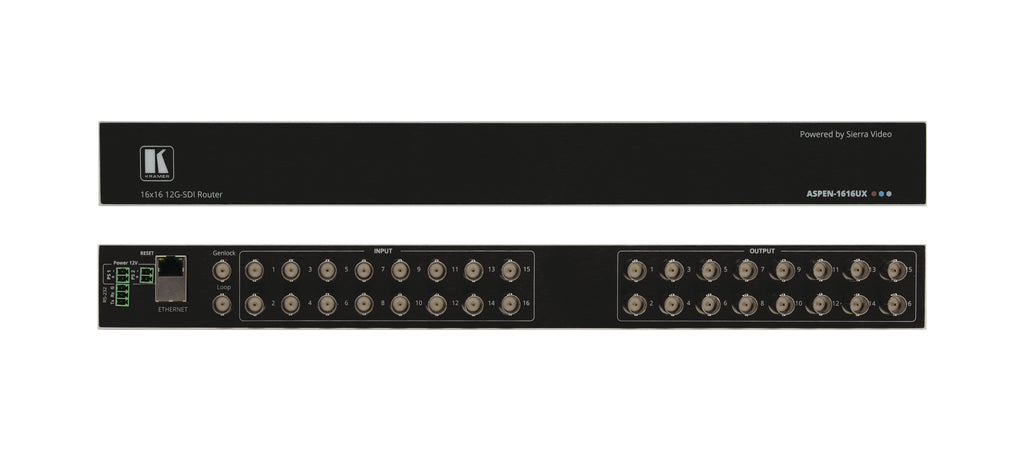

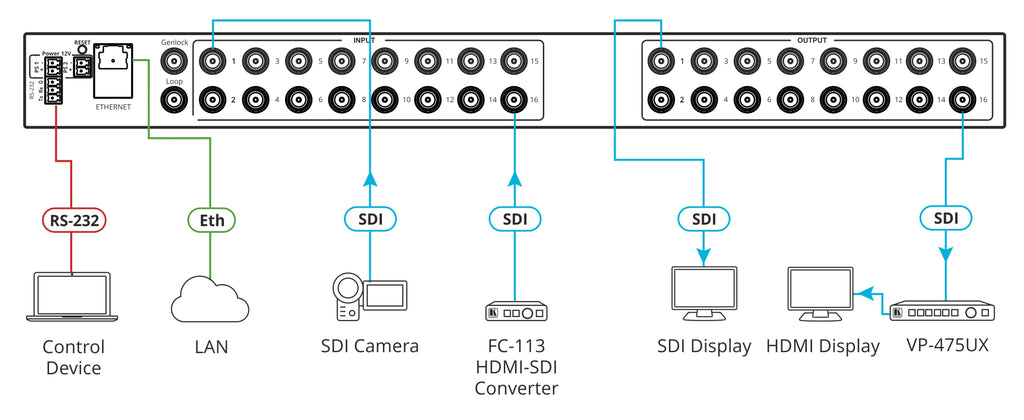

The Kramer ASPEN-1616UX is a high-performance 16×16 12G-SDI matrix switcher engineered for mission-critical broadcast, production, and AV environments requiring ultra-reliable 4K@60Hz signal routing. Designed with Kramer Equalization & reKlocking™ Technology, it ensures pristine signal integrity across long cable runs by equalizing all inputs and reclocking all outputs.
Supporting data rates from 270Mbps up to 12Gbps, the ASPEN-1616UX is fully compliant with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI standards, enabling seamless operation across multi-format infrastructures. Extended-reach input support allows transmission distances up to 300m for SD signals and up to 80m for 12G 4K signals over quality coaxial cable.
With clean genlock switching, intuitive web-based control, RS-232 integration, and preset storage for fast recall, the ASPEN-1616UX delivers flexibility and reliability in a compact 1U rackmount design. Ideal for live studios, OB vans, post-production, and high-resolution video workflows.
| Category | Details |
|---|---|
| Inputs | 16× 12G/HD-SDI/SDI (75Ω BNC), 1× Genlock (looping BNC) |
| Outputs | 16× 12G/HD-SDI/SDI (75Ω BNC), 1× Genlock passive loop (BNC) |
| Supported Standards | SMPTE ST-2082-1 (12G), SMPTE 424M (3G), SMPTE 292M (HD-SDI), SMPTE 259M/344M (SD-SDI) |
| Max Resolution | 4K@60Hz (4:2:2), up to 30bpp |
| Max Bandwidth | 12Gbps |
| Signal Extension | SD: up to 300m; 1.5G HD: up to 200m; 3G: up to 100m; 6G: up to 100m; 12G: up to 80m (depending on cable quality) |
| Coupling | DC |
| Control Interfaces | Ethernet (web UI), RS-232, Protocol 3000 API |
| Preset Storage | 8 recallable presets |
| Enclosure | 19" aluminum chassis, 1U height |
| Cooling | Fan-ventilated |
| Power Consumption | 12V DC, 1.35A (unit) |
| Power Source | 12V DC, 5A |
| Environmental – Operating | 0° to +40°C (32° to 104°F) |
| Environmental – Storage | −40° to +70°C (−40° to 158°F) |
| Humidity | 10%–90%, non-condensing |
| Product Dimensions (W×D×H) | 43.64 × 10.00 × 4.36 cm (17.18" × 3.94" × 1.72") |
| Product Weight | 1.0 kg (2.1 lbs) |
| Accessories Included | Power adapter |
| Recommended Cables | Belden 4794R, Belden 4855R (12G SDI coax) |
