Description
The SmartAVI HDR-16X16PLUS-V3 is a high-performance 16x16 HDMI matrix switch designed for professional AV environments that require seamless, flexible signal routing across multiple displays. Engineered for reliability and scalability, this solution enables users to independently route up to sixteen HDMI sources to sixteen displays with zero signal degradation.
Supporting resolutions up to 4K at 30Hz, this matrix ensures crisp, high-quality video output across all connected endpoints. Its versatile control options including front panel controls, RS-232, IR, and TCP/IP allow for both local and remote management, making it ideal for command centers, digital signage, control rooms, and large-scale AV deployments.
With robust EDID management, support for surround sound audio, and compatibility with a wide range of HDMI devices, the HDR-16X16PLUS-V3 delivers consistent performance and simplified system integration. Its rack-mountable design and enterprise-grade build make it a dependable solution for mission-critical applications.
| Specification | Details |
|---|---|
| Video Resolution Support | Up to 3840 x 2160 @ 30Hz (4K), also supports 480p, 720p, 1080i, 1080p |
| HDMI Compliance | HDMI 1.4 and HDCP compliant |

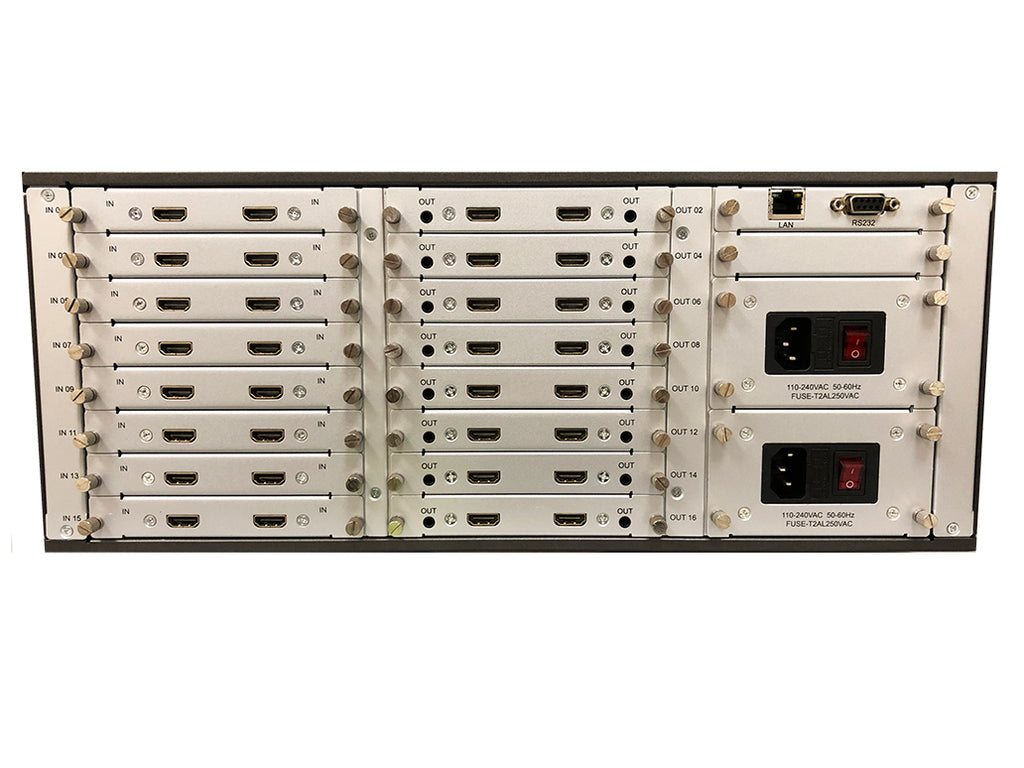

| Input Ports | 16 x HDMI Type A (19-pin Female) |
| Output Ports | 16 x HDMI Type A (19-pin Female) |
| Audio Support | Supports 7.1 digital surround sound and stereo audio |

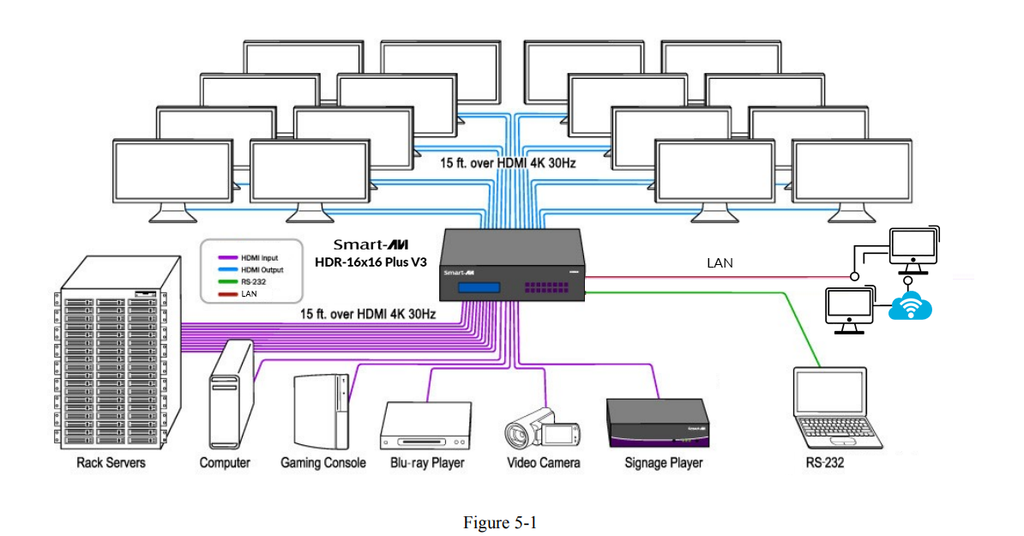

| Switching Capability | Independent routing of any input to any output |

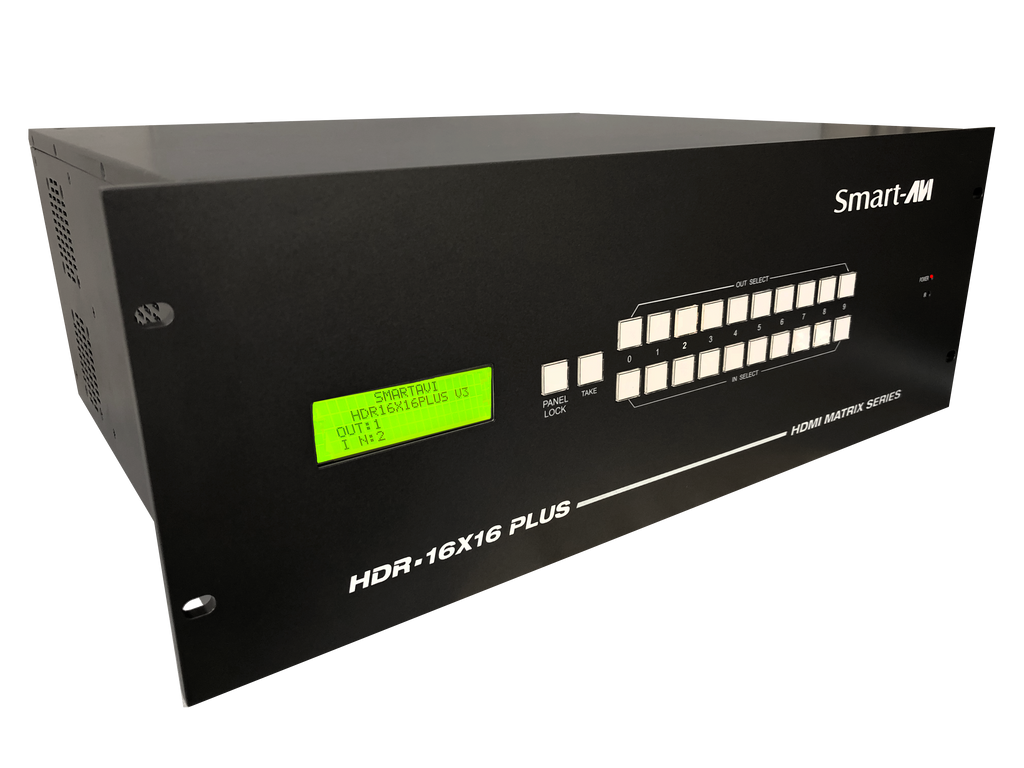

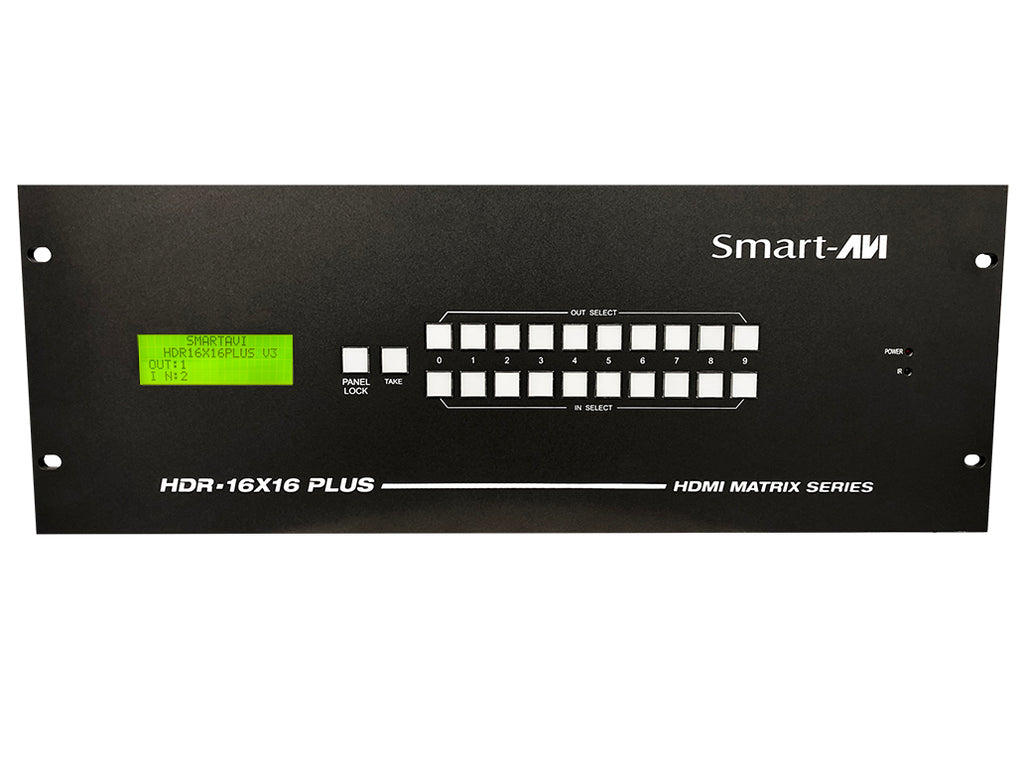

| Control Methods | Front panel buttons with LCD display, RS-232, IR, TCP/IP |
| RS-232 Specs | DB9 Female, 9600 bps, 8 data bits, no parity, 1 stop bit |
| Network Control | On-board LAN (TCP/IP control) |
| EDID Management | Full EDID support for display compatibility |
| Maximum Cable Length | Up to 40 feet (input and output) |
| Video Quality | Uncompressed digital video with zero signal loss |
| Power Supply | Internal 110–240 VAC |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
| Humidity | 10% to 85% non-condensing |
| Chassis Type | Rack-mountable (fits standard 19-inch rack) |
| Dimensions | 17"W x 7.1"H x 15"D |
| Weight | 24.45 lbs |
| Compliance | FCC, CE, RoHS compliant |
| Included in Package | 16x16 HDMI Matrix Switch, Power Supply Cord |
