Description

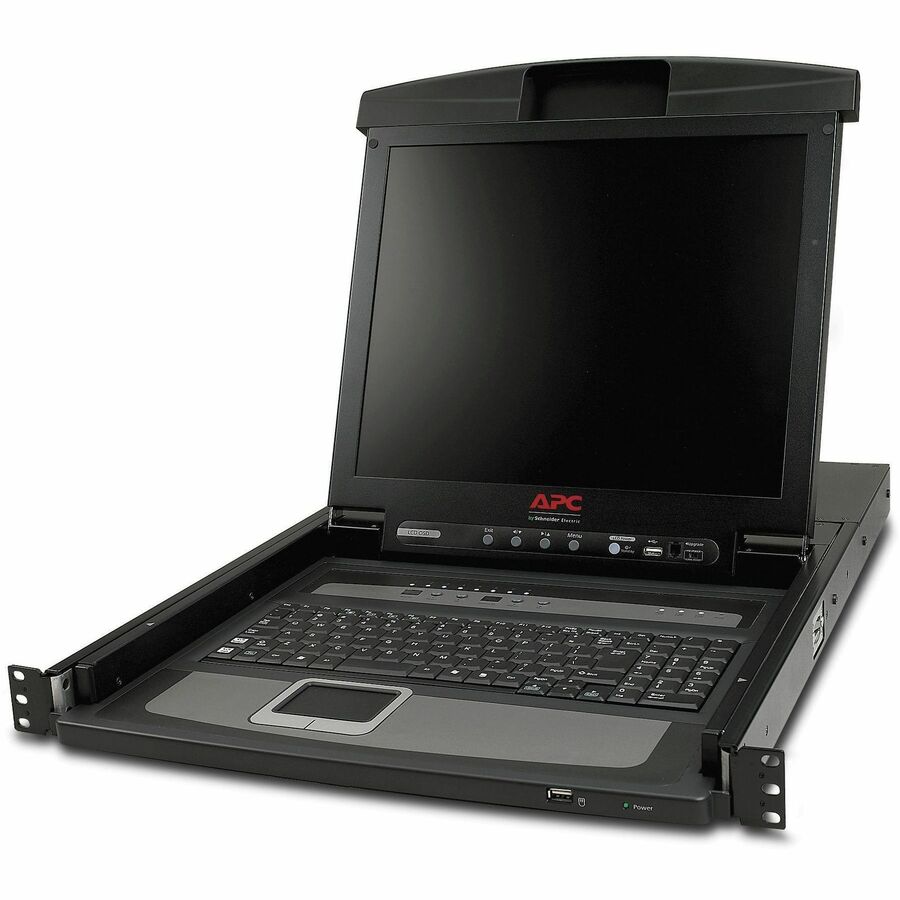

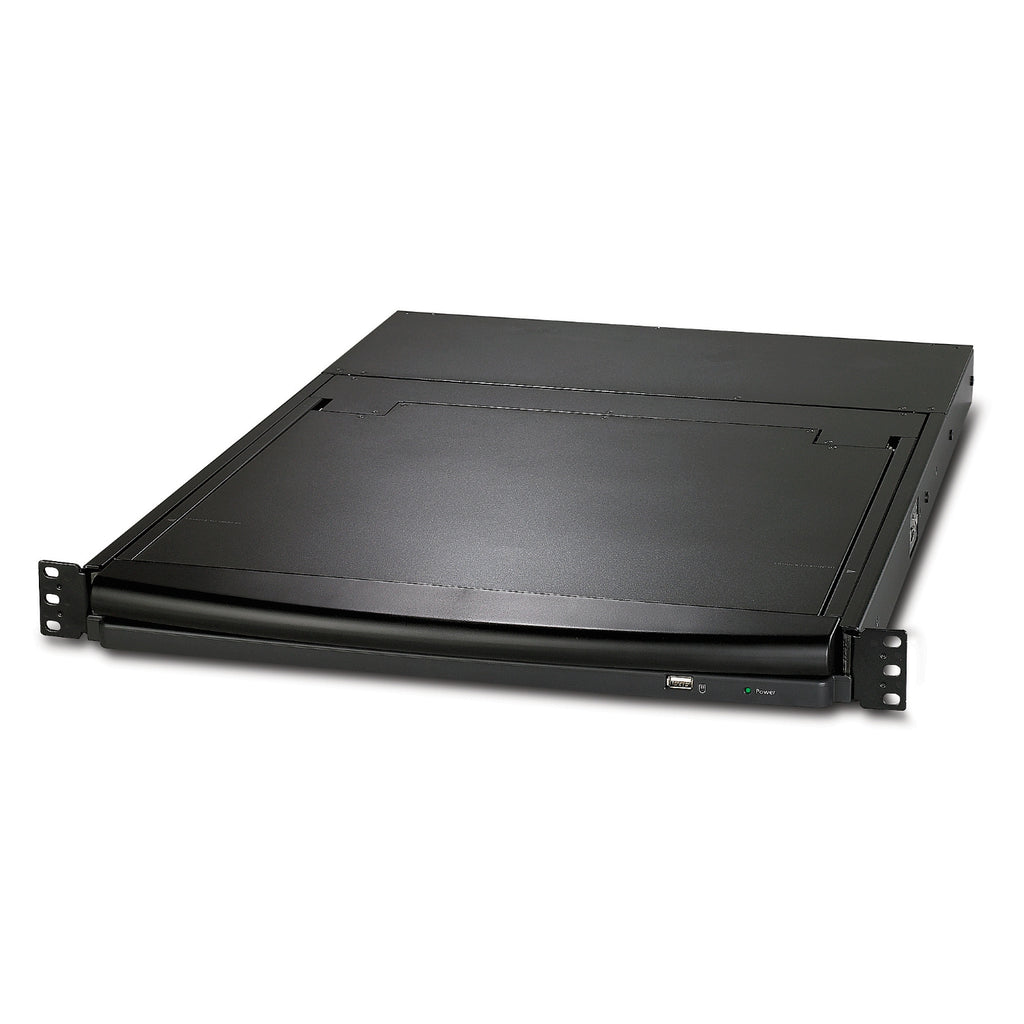

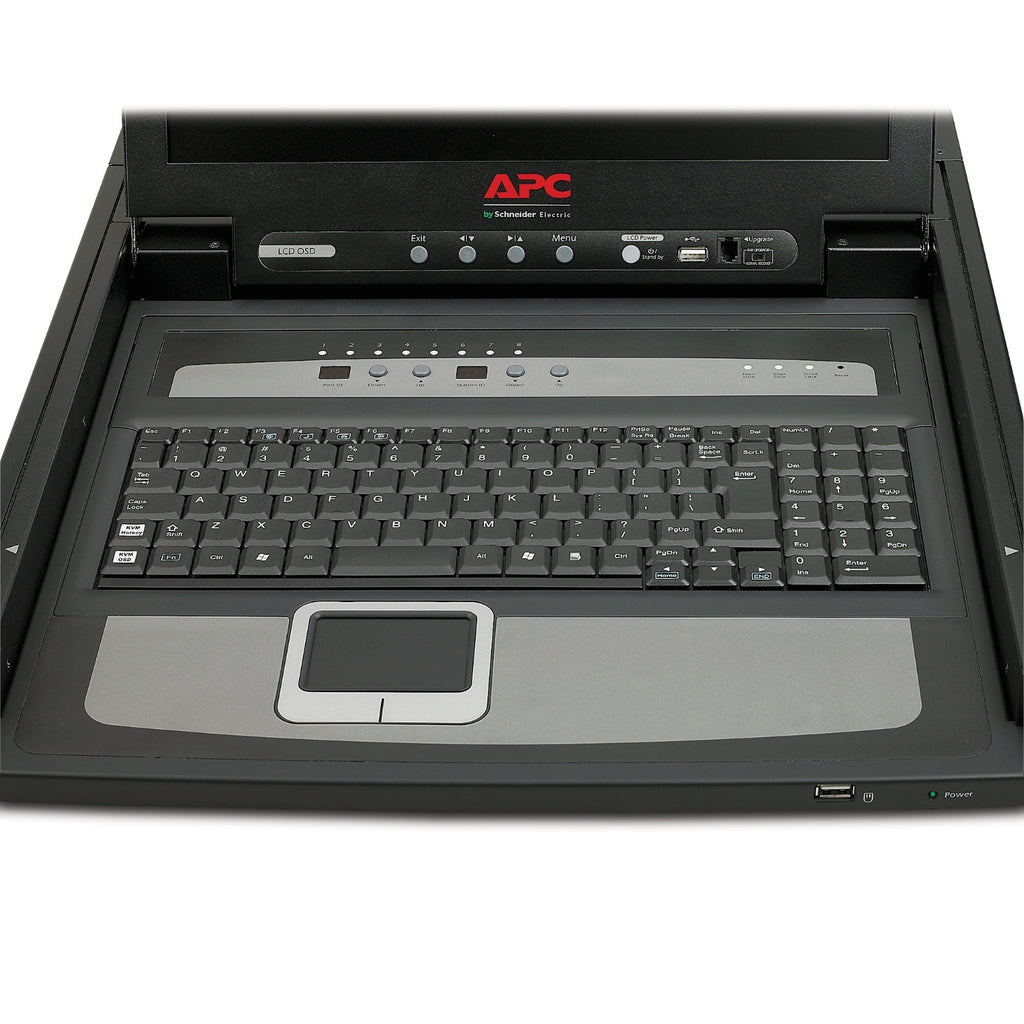

The APC AP5808 Rack LCD Console integrates a 17-inch LCD monitor, full-size keyboard, touchpad, and an 8-port analog KVM switch into a single 1U rack-mountable unit. Designed for space optimization and streamlined cable management, it offers centralized control of up to eight servers from one console. Ideal for high-density IT environments, the AP5808 comes with essential accessories and supports both USB and PS/2 interfaces.
| Category | Details |
|---|---|
| Model | AP5808 |
| Display Size | 17" LCD, 16-color display (337.9 x 270.3 mm) |
| KVM Ports | 8-port analog KVM switch |
| Keyboard Layout | US English |
| Touchpad | PS/2 touchpad, USB mouse compatible |
| Mounting | 1U rack-mountable |
| Mounting Depth | Min: 26.77 in (68 cm), Max: 41.33 in (104.98 cm) |
| Input Voltage | 120V / 240V |
| Input Frequency | 50/60 Hz |
| Input Connection Type | IEC 60320 C14 |
| Cable Length | 6 ft (1.8 m) |
| Included Accessories | USB and PS2 KVM cables, power cord, rack mount kit |
| Color | Black |
| Dimensions (HxWxD) | 1.69 x 19.02 x 27.99 in (4.3 x 48.3 x 71.1 cm) |
| Weight | 30.36 lb (13.77 kg) |
| Operating Temp | 32 to 104 °F (0 to 40 °C) |
| Certifications | UL, CE, VDE, KCC, TAA Compliant |
| Warranty | 2 years, repair or replace |
