Description

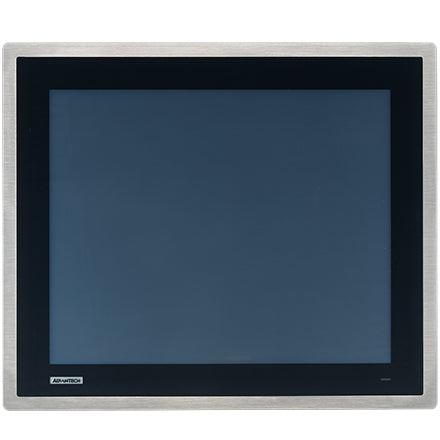

The Advantech FPM-817S-R6AE is a rugged 17-inch SXGA industrial touch monitor engineered for demanding industrial and hygienic environments. Featuring a true-flat front panel with an IP66-rated 304 stainless steel bezel, this monitor is ideal for applications requiring high durability, easy cleaning, and resistance to dust and water.
Equipped with a 5-wire resistive touchscreen and enhanced ITO film, the FPM-817S-R6AE delivers reliable touch accuracy even when operated with gloves or under harsh conditions. Its wide operating temperature range and long-life LED backlight ensure consistent performance across diverse industrial deployments. Direct VGA and DisplayPort inputs provide flexible system integration, while multiple mounting options allow seamless installation in control panels, workstations, or machinery enclosures.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | FPM-817S-R6AE |
| Display Size | 17 inches |
| Display Type | SXGA TFT LCD |
| Resolution | 1280 × 1024 |
| Aspect Ratio | 5:4 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle (H/V) | 160° / 140° |
| Touchscreen Type | 5-wire resistive touchscreen |
| Touch Interface | USB |
| Touch Lifespan | 36 million touches |
| Light Transmission | >80% |
| Video Inputs | VGA, DisplayPort |
| Front Panel Protection | IP66-rated |
| Bezel Material | 304 stainless steel |
| Enclosure Material | SPCC with anti-rust coating |
| Backlight Type | LED |
| Backlight Lifetime | 50,000 hours |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 10–90% non-condensing |
| Power Input | 24 VDC (Phoenix connector) |
| Power Consumption | 12 W (+20%) |
| Mounting Options | Panel, VESA, wall, desktop |
| Dimensions (W × H × D) | 432.5 × 365.5 × 59.3 mm |
| Weight (Net) | 6.2 kg |
| Certifications | CE, FCC Class A, UL |
