Description

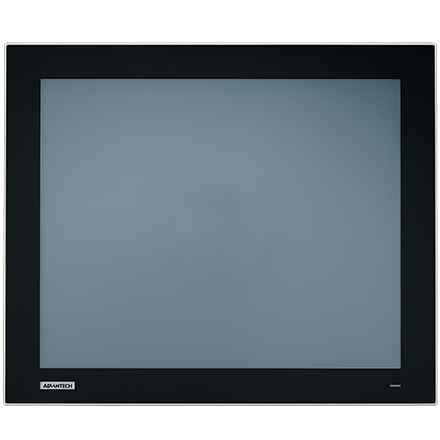

The Advantech FPM-217-R8AE is a rugged 17-inch industrial-grade monitor designed for demanding factory automation, machine control, and Industry 4.0 visualization environments. Built with a durable die-cast aluminum chassis and an IP66-rated front bezel, it provides reliable performance in harsh industrial settings.
Equipped with a 5-wire resistive touchscreen, the monitor supports precise operation even with gloves, making it ideal for smart manufacturing applications. Multiple video input options including HDMI, DisplayPort, and VGA ensure flexible integration with industrial systems.
With its slim true-flat design, long backlight lifetime, and versatile mounting support (panel, desktop, VESA arm), the FPM-217-R8AE is an excellent solution for industrial HMI display deployments.
| Specification Category | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | FPM-217-R8AE |
| Display Size | 17-inch TFT LCD |
| Resolution | SXGA (1280 × 1024) |
| Touchscreen Type | 5-wire Analog Resistive Touch |
| Touch Interface | USB |

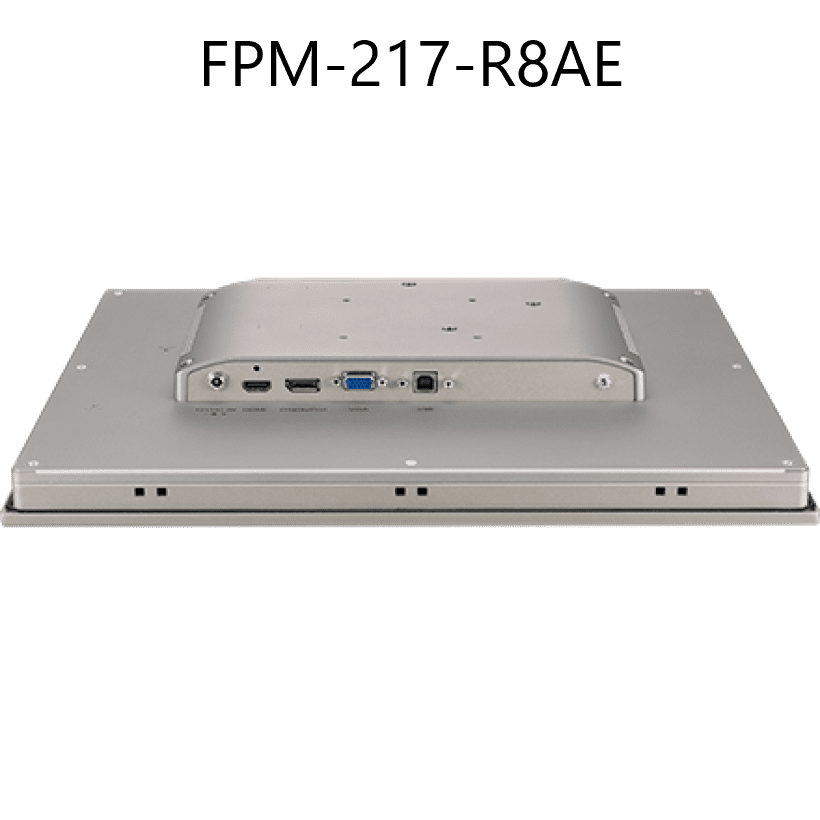

| Video Inputs | HDMI, DisplayPort (DP), VGA |
| Front Bezel Protection | IP66-rated aluminum alloy front panel |
| Enclosure Material | Die-cast magnesium alloy front / Aluminum rear cover |
| Mounting Options | Panel, Desktop, Wall, VESA Arm (75 × 75 mm) |
| Dimensions (W × H × D) | 410.4 × 343.4 × 54 mm |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Backlight Lifetime | 50,000 hours |
| Power Input | External 36W Adapter (100–240VAC, 12VDC Output) |
| Industrial Features | Anti-glare tempered glass, lockable I/O connectors |
| Typical Applications | Smart factory HMI, automation monitoring, industrial control rooms |
