Description

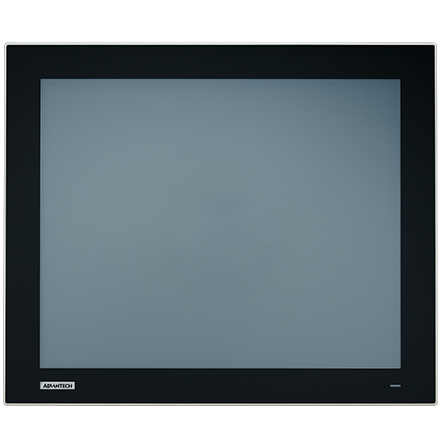

The Advantech FPM-217-R9AE is a 17-inch industrial-grade touchscreen monitor engineered for reliable operation in demanding factory and automation environments. Designed as part of the FPM-200 series, it features a true-flat resistive touchscreen and a rugged IP66-rated front bezel, making it ideal for machine control, smart factory visualization, and IIoT applications.

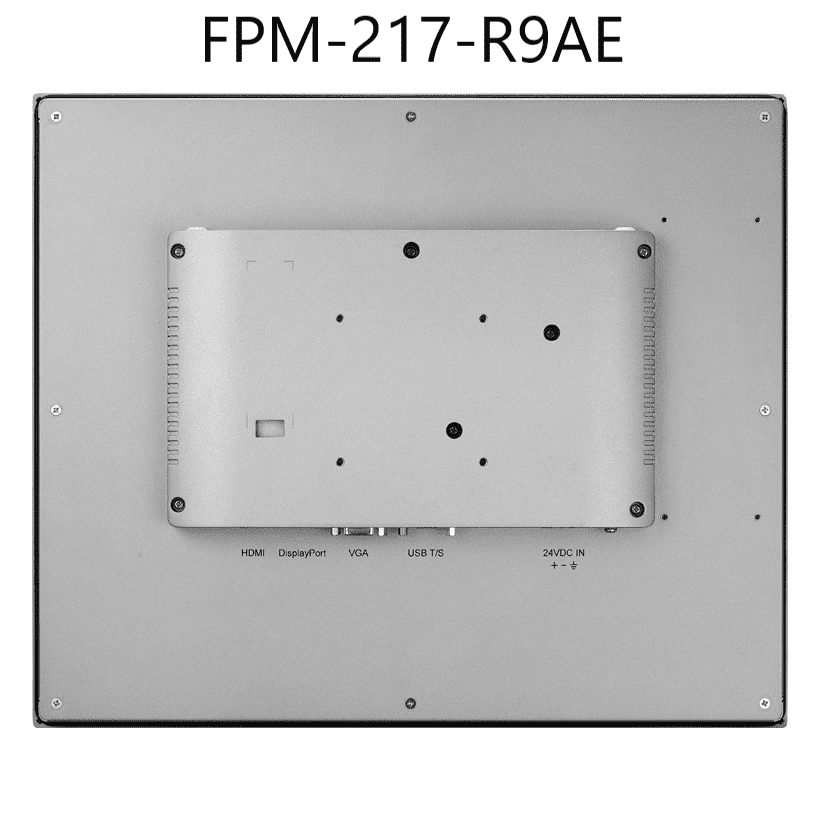

This model is powered via a 24VDC terminal block, ensuring compatibility with industrial power systems. The high-resolution SXGA display delivers clear visuals, while the anti-glare tempered glass enhances durability and visibility. With HDMI, DisplayPort, and VGA inputs, the FPM-217-R9AE integrates seamlessly with a wide range of industrial PCs and controllers. Its slim aluminum chassis, lockable I/O connectors, and multiple mounting options provide flexibility for panel, wall, desktop, or VESA installations.
| Specification | Details |
|---|---|
| Display Size | 17-inch |
| Display Type | SXGA TFT LCD with LED Backlight |
| Maximum Resolution | 1280 × 1024 |
| Touch Technology | 5-wire Analog Resistive Touch |
| Touch Interface | USB |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Backlight Lifetime | 50,000 hours |
| Video Inputs | HDMI, DisplayPort, VGA |
| Power Input | 24 VDC (Terminal Block) |
| Power Consumption | 11.92 W (Idle) / 14.19 W (Max) |
| Front Panel Protection | IP66-rated |
| Enclosure Material | Die-cast aluminum chassis with magnesium alloy front bezel |
| Mounting Options | Panel, Wall, Desktop, VESA (75 × 75 mm) |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| Operating System Support | Windows XP, 7, 8, 10, 11, Linux |
| Dimensions (W × H × D) | 410.4 × 343.4 × 54 mm |
| Net Weight | Approx. 5.4 kg |
