Description

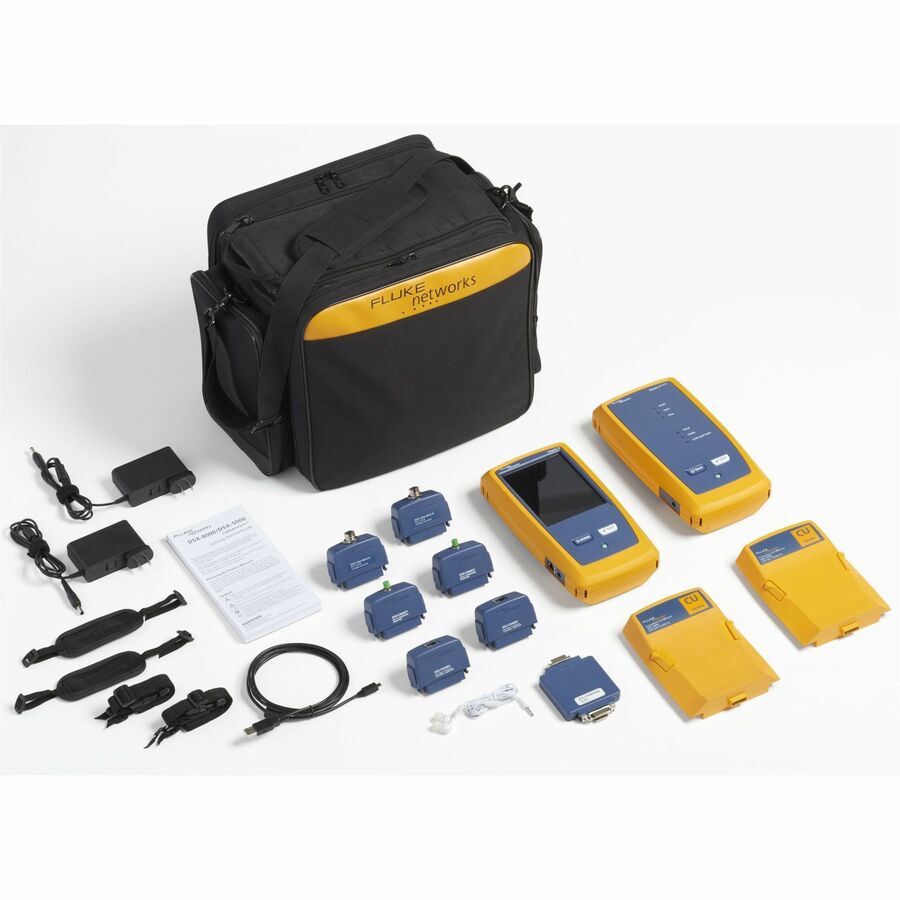

The Fluke Networks DSX2-5000-NW is a 1GHz copper cable certifier designed to test and certify twisted pair cabling for up to Cat 6A and Class FA, ensuring reliable performance in network deployments up to 10 Gigabit Ethernet. As part of the Versiv™ Cabling Certification product family, it delivers Level V accuracy with rapid testing, advanced diagnostics, and streamlined project management tools to help teams meet deadlines and reduce rework.
Equipped with the ProjX™ management system and Taptive™ user interface, the DSX2-5000-NW simplifies job setup, minimizes testing errors, and accelerates troubleshooting by graphically pinpointing crosstalk, return loss, and shield faults. Its compatibility with LinkWare™ PC software enables comprehensive test result analysis and professional reporting, while its modular Versiv™ design supports future upgrades to fiber testing modules.
Built for contractors, network installers, and system integrators, the DSX2-5000-NW offers unmatched efficiency, precision, and reliability for copper certification jobs—helping you achieve faster system acceptance and improved profitability.
| Feature / Specification | DSX2-5000-NW Details |
|---|---|
| Type | 1GHz Copper Cable Certifier (Non-Wireless) |
| Supported Cable Types | Shielded & unshielded twisted pair LAN cabling (Cat 3, 4, 5, 5e, 6, 6A; ISO/IEC Class C, D, E, EA, F, FA) |
| Maximum Frequency | 1000 MHz |
| Autotest Time | Cat 5e/6: 9s; Cat 6A/Class EA: 10s |
| Accuracy | Level V (1 GHz) |
| Diagnostics | HDTDX/HDTDR location-based fault analysis (~3s) |
| Memory Capacity | ~12,000 Cat 6A results with plots |
| Test Standards | ANSI/TIA-1152-A, ISO/IEC 11801 Series |
| Measurements | Wire Map, Length, Delay, Insertion Loss, Return Loss, NEXT, PS NEXT, ACR-N, PS ACR-N, ACR-F (ELFEXT), PS ACR-F, PS ANEXT, PS AACR-F |
| Shield Integrity | Shield continuity check with distance-to-fault |

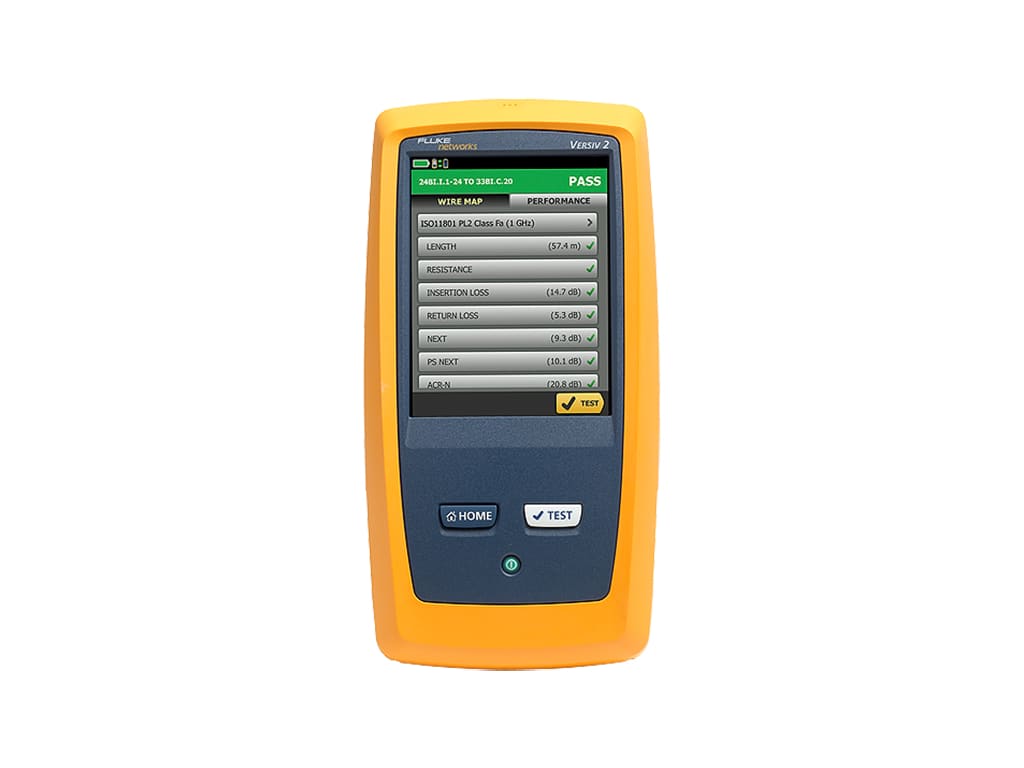

| Display | 5.7" LCD capacitive touchscreen |
| Dimensions | 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight | 1.28 kg (with battery) |
| Battery Life | ~8 hours |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -30°C to +60°C |
| Calibration Interval | 1 year |
| Modular Compatibility | Supports Versiv™ copper certification, fiber OLTS, OTDR, and fiber inspection modules |
