Description

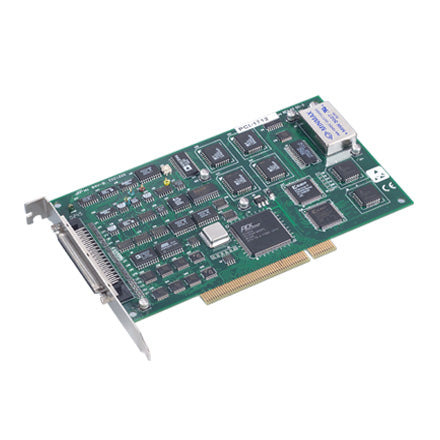

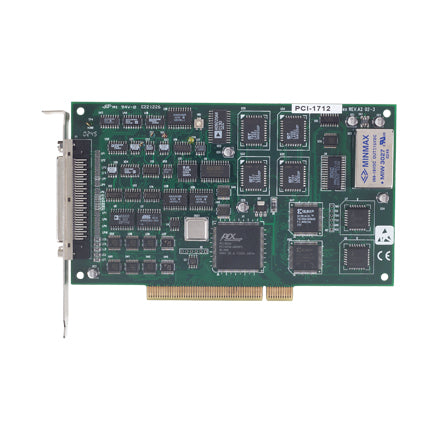

The Advantech PCI-1712-BE is a high-speed multifunction data acquisition (DAQ) card designed for precision measurement, control, and automation applications. Featuring a 12-bit A/D converter with sampling rates of up to 1 MS/s, this PCI-based DAQ card supports flexible analog input configurations, analog output waveform generation, digital I/O, and high-resolution counter/timer functions.
With onboard FIFO memory, programmable gain, multiple trigger modes, and PCI bus-mastering data transfer, the PCI-1712-BE delivers reliable high-throughput performance for industrial testing, data logging, laboratory instrumentation, and process monitoring environments. Its wide operating temperature range and robust electrical protection make it well-suited for demanding industrial systems.
| Specification | Details |
|---|---|
| Product Type | Multifunction Data Acquisition (DAQ) Card |
| Bus Interface | PCI v2.2 |
| Analog Input Channels | 16 single-ended or 8 differential (software-selectable) |
| Analog Input Resolution | 12-bit |
| Maximum Sampling Rate | Up to 1 MS/s |
| Analog Input FIFO | 1,024 samples |
| Input Voltage Ranges | Bipolar and unipolar, software programmable |
| Overvoltage Protection | 30 Vp-p |
| Analog Output Channels | 2 |
| Analog Output Resolution | 12-bit |
| Analog Output Rate | Up to 1 MS/s |
| Analog Output FIFO | 32,768 samples |
| Digital I/O Channels | 16 (TTL compatible) |
| Counter/Timer Channels | 3 × 16-bit programmable counters |
| Counter Input Frequency | Up to 10 MHz |
| Trigger Modes | Pre-trigger, post-trigger, delay-trigger |
| Data Transfer | PCI bus mastering |
| I/O Connector | 1 × 68-pin SCSI female |
| Dimensions | 175 × 100 mm |
| Operating Temperature | 0°C to 60°C |
| Power Requirements | +5 V and +12 V PCI power |
| Compliance | RoHS compliant |
