Description

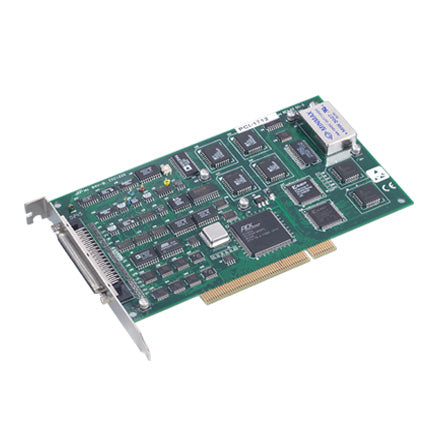

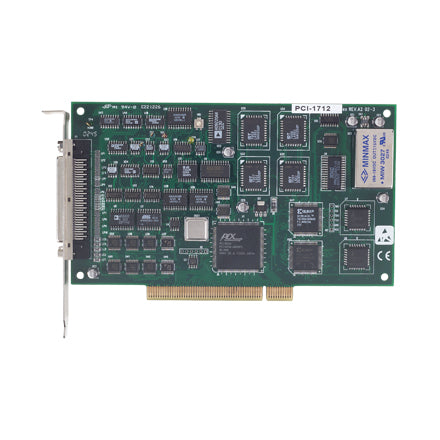

The Advantech PCI-1712-AE is a high-speed multifunction PCI data acquisition (DAQ) card designed for industrial measurement, monitoring, and automation applications. Featuring a 12-bit A/D converter with up to 1 MS/s sampling rate, this card supports 16 single-ended or 8 differential analog input channels, programmable gain, and automatic channel scanning for flexible signal acquisition.
In addition, the PCI-1712-AE includes 2 analog output channels capable of waveform generation, 16 programmable digital I/O lines, and three 16-bit counter/timers for advanced control and timing functions. With onboard FIFO memory and PCI bus mastering for efficient data transfer, this DAQ card is ideal for high-speed, reliable industrial data acquisition systems.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | PCI-1712-AE |
| Product Type | Multifunction PCI DAQ Card |
| Analog Input Channels | 16 single-ended / 8 differential (software programmable) |
| Analog Input Resolution | 12-bit |
| Max Sampling Rate | Up to 1 MS/s |
| FIFO Buffer (AI) | 1,024 samples |
| Analog Output Channels | 2 (PCI-1712 only) |
| Analog Output Resolution | 12-bit |
| Output Rate | Up to 1 MS/s |
| FIFO Buffer (AO) | 32,768 samples |
| Digital I/O Channels | 16 (programmable input/output) |
| Counter/Timer Channels | 3 x 16-bit multifunction counters |
| Max Counter Input Frequency | 10 MHz |
| Trigger Modes | Pre, Post, Delay, About-trigger |
| Bus Interface | PCI v2.2 |
| Connector Type | 1 x 68-pin SCSI female connector |
| Operating Temperature | 0 to 60°C |
| Dimensions | 175 x 100 mm |
