Description

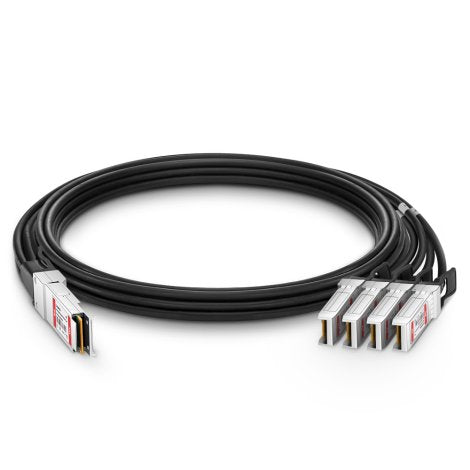

The Lenovo 4X97A81846 is a 1-meter NVIDIA NDRx2 OSFP800 to 4x HDR100 QSFP56 passive copper splitter cable designed for high-performance InfiniBand networking environments. It enables a single NDRx2 OSFP800 connection to break out into four HDR100 QSFP56 connections, supporting flexible connectivity between NVIDIA Quantum InfiniBand infrastructure.
Designed for AI, HPC, and data-intensive deployments, this passive copper cable provides a direct, high-bandwidth connection without requiring active optical components. It is compatible with select NVIDIA Quantum HDR, NDR, and XDR InfiniBand switches offered by Lenovo.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| SKU / Part Number | 4X97A81846 |
| Feature Code | BQKE |
| Product Type | Passive Copper Splitter Cable |
| Cable Length | 1 m |
| Host Connector | NDRx2 OSFP800 |
| Breakout Connectors | 4x HDR100 QSFP56 |
| Cable Technology | Passive Copper |
| NVIDIA Part Number | 980-9I93N-00H001 |
| Compatible Network | NVIDIA InfiniBand |
| QM8700 Maximum Supported | 40 |
| QM8790 Maximum Supported | 40 |
| QM9700 Maximum Supported | 32 |
| QM9790 Maximum Supported | 32 |
| Q3200-RA Maximum Supported | 36 |
| Q3400-RA Support | No |
| Typical Applications | AI, HPC, high-performance data center networking |
