Description

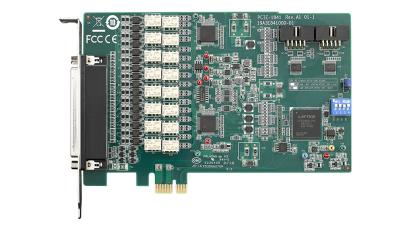

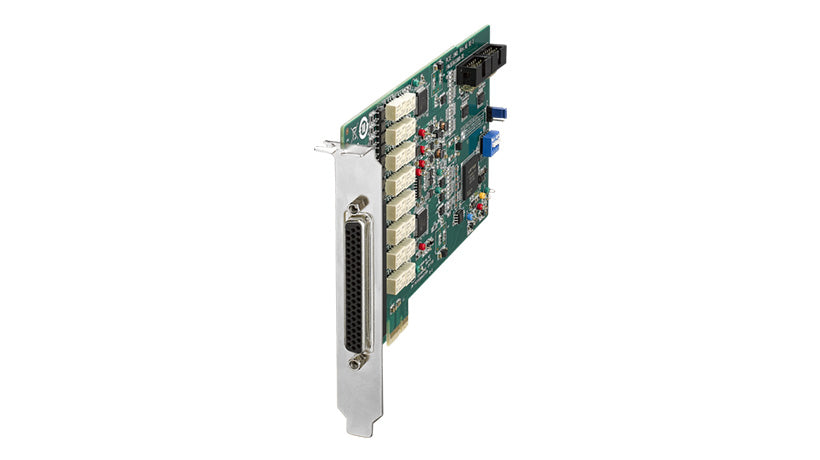

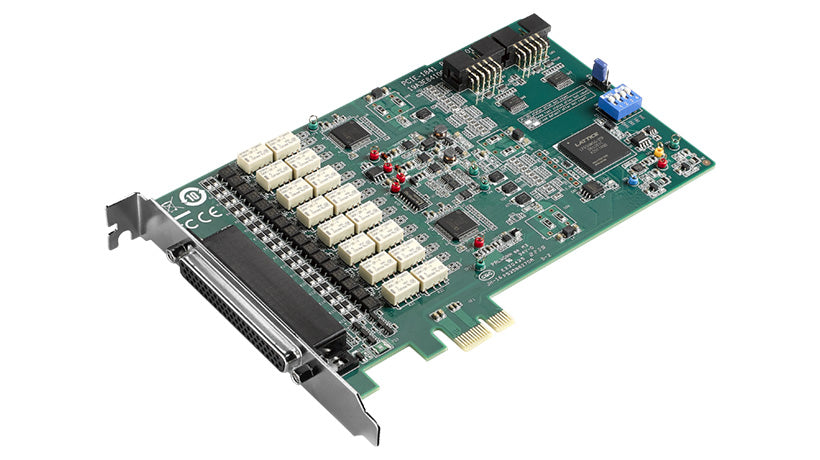

The Advantech PCIE-1841-A is a high-precision PCI Express data acquisition card designed for demanding measurement and test applications. Featuring 16 differential analog input channels with true simultaneous sampling, this DAQ card delivers up to 1 MS/s per channel at 18-bit resolution for accurate, time-aligned signal capture.
The PCIE-1841-A supports both voltage and current measurements with software-configurable input ranges, making it ideal for industrial monitoring, power analysis, and dynamic signal acquisition. Built-in low-pass filtering, multiple trigger modes, and a high-speed onboard FIFO enable reliable buffered acquisition even in high-throughput environments. With robust electrical protection and broad environmental tolerance, this card is well suited for industrial and laboratory systems requiring precise analog performance.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Product Type | PCI Express Data Acquisition Card |
| Analog Input Channels | 16 differential |
| Resolution | 18-bit |
| Maximum Sampling Rate | 1 MS/s per channel (simultaneous) |
| Acquisition Type | Instant or buffered (software configurable) |
| Input Signal Types | Voltage and current |
| Voltage Input Ranges | ±20 V, ±12.5 V, ±10 V, ±5 V |
| Current Input Range | ±20 mA |
| Maximum Input Voltage | ±20 V |
| Over-Voltage Protection | ±30 V |
| Input Impedance | 1 MΩ (voltage), 500 Ω (current) |
| Analog Low-Pass Filter | 22.5 kHz or 250 kHz, software selectable |
| On-Board FIFO | 8,192 samples |
| Trigger Modes | Analog and digital |
| Number of Triggers | 2 |
| Trigger Functions | Start, stop, delay to start, delay to stop |
| Connector Type | DB-62 |
| Interface | PCI Express |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Dimensions | 175 × 100 mm |
| Weight | Approx. 0.12 kg |
| Certifications | CE, FCC |
