Description

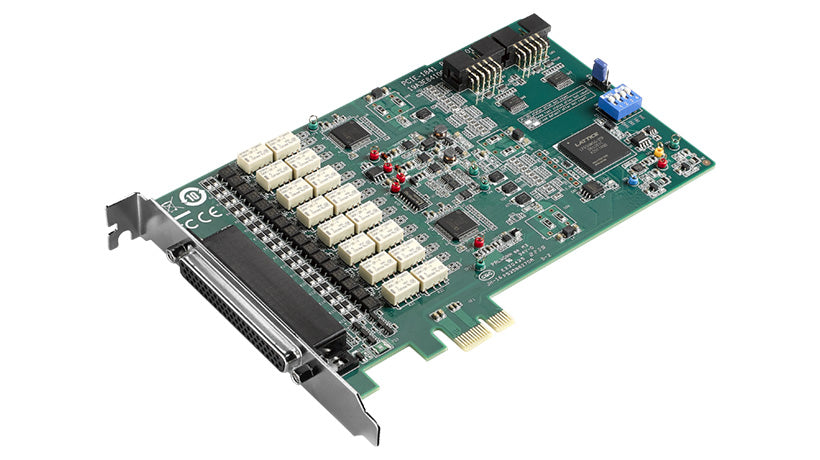

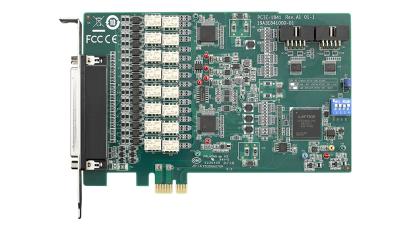

The Advantech PCIE-1841L-A is a high-precision PCI Express data acquisition card designed for demanding measurement and control applications. Featuring 8 differential analog input channels with true simultaneous sampling, this DAQ card delivers up to 1 MS/s per channel at 18-bit resolution, ensuring accurate capture of fast-changing signals without phase delay.
With wide, software-configurable input ranges supporting both voltage and current measurements, the PCIE-1841L-A offers exceptional flexibility for industrial testing, automation, and research environments. Built-in low-pass filtering, advanced trigger modes, and a high-performance ADC architecture make this solution ideal for high-accuracy data acquisition where signal integrity and reliability are critical.
| Specification | Details |
|---|---|
| Product Type | PCI Express Data Acquisition Card |
| Channels | 8 Differential Analog Inputs |
| ADC Resolution | 18-bit |
| Maximum Sampling Rate | 1 MS/s per channel (simultaneous) |
| Acquisition Type | Instant or Buffered (software selectable) |
| Input Ranges | ±20 V, ±12.5 V, ±10 V, ±5 V, ±20 mA (per channel, software configurable) |
| Maximum Input Voltage | ±20 V |
| Input Impedance | 1 MΩ (Voltage), 500 Ω (Current) |
| Input Coupling | DC |
| Analog Low-Pass Filter | 22.5 kHz or 250 kHz (software selectable per channel) |
| On-board FIFO | 8,192 Samples |
| Trigger Modes | Analog and Digital |
| Analog Trigger Source | Any analog input channel |
| Digital Trigger Source | 2 external pins |
| Trigger Actions | Start, Stop, Delay to Start, Delay to Stop |
| Over-Voltage Protection | ±30 V |
| Connector Type | DB-62 |
| Interface | PCI Express |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Dimensions | 175 × 100 mm |
| Weight | 0.12 kg |
| Certifications | CE, FCC |
