Description

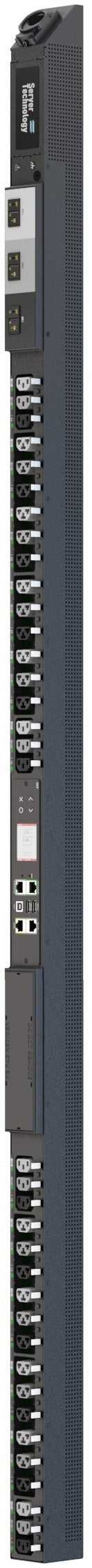

The Server Technology PRO4X C4W36RA-ENBE2FE2 Switched PDU is a high-density, intelligent power distribution unit designed for modern data centers. Powered by the advanced Xerus™ network interface platform, it provides secure remote monitoring, per-outlet switching, and comprehensive environmental sensing. Featuring HDOT Cx hybrid outlets (supporting both C13 and C19 plugs), RamLock® locking outlets to prevent accidental disconnections, and per-inlet power sensing (PIPS®), this PDU ensures uptime, efficiency, and control.
With support for multi-unit linking (up to 16 PDUs under a single IP), a hot-swappable controller, and branch circuit protection, this unit enhances reliability and scalability. Integrated SNMP-based monitoring, waveform capture, and RGB outlet indicators provide real-time visibility into power quality and usage. Built to withstand 60°C operating environments with flexible mounting and multiple color-coded options, this PDU is ideal for mission-critical deployments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched PDU |
| Model / SKU | C4W36RA-ENBE2FE2 |
| Form Factor | Vertical (0U) |
| Outlets | (12) x IEC 60320 C13 ≤10A @230V, (24) x HDOT Cx ≤16A @230V |
| Outlet Features | HDOT Cx hybrid outlets (C13/C19), RamLock® locking, RGB LED indicators, alternating-phase layout |
| Input Voltage | 230V |
| Input Frequency | 50/60 Hz |
| Input Plug Type | IEC 230V/16A 2P+PE 6Hr |
| Max Input Current | 16A |
| Power Capacity | 3.6 kW |
| Branch Circuit Protection | UL 489, CSA C22.2 No. 5, IEC/EN 60947-2; 2-pole 20A breakers |
| Controller | Hot-swappable, LCD display |
| Monitoring | PIPS® per-inlet monitoring; power quality (harmonics, dips, swells, crest factor) |
| Networking / Security | Dual Ethernet, HTTPS, SSH, SNMPv2c/v3, LDAP(S), RADIUS, TACACS+ |
| Multi-Unit Linking | Daisy chain up to 16 PDUs via USB/Ethernet under one IP |
| Environmental Sensors | Supports DX2-series SmartSensors (temp, humidity, airflow, water, etc.) |
| Dimensions (HxWxD) | 70.0 x 2.2 x 2.5 in (1778 x 56 x 64 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | EN IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Color Options | Black standard; optional overlays in Red, Blue, Green, Yellow, White, Orange |
| Warranty | 2-year limited (extendable) |
