Description

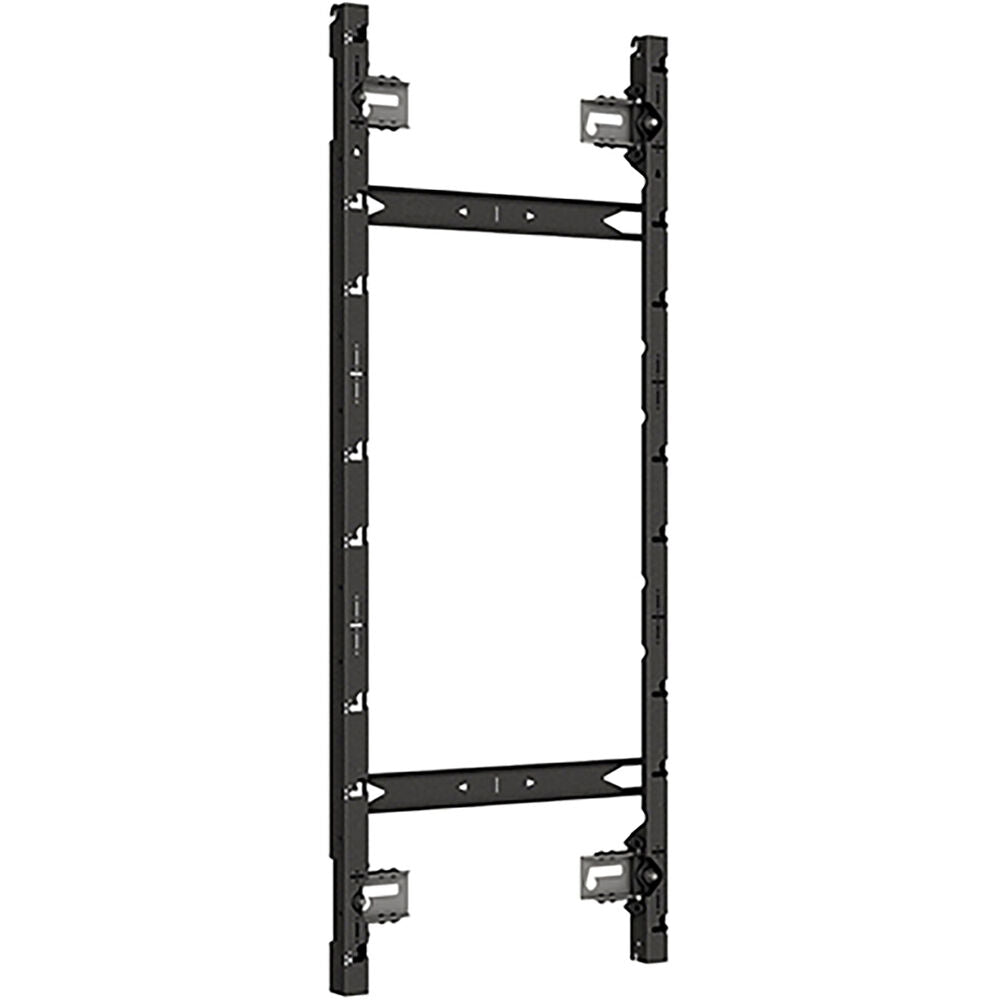

The Chief TiLED™ 1x4 dvLED Wall Mount (TIL1X4PH) is a professional-grade mounting solution engineered for creating seamless direct-view LED video walls using compatible Philips 27BDL 6000 and 9000 Series cabinets. Designed to support four displays in a vertical 1x4 landscape configuration, this system allows LED cabinets to be stacked precisely to form a continuous, visually flawless video wall.

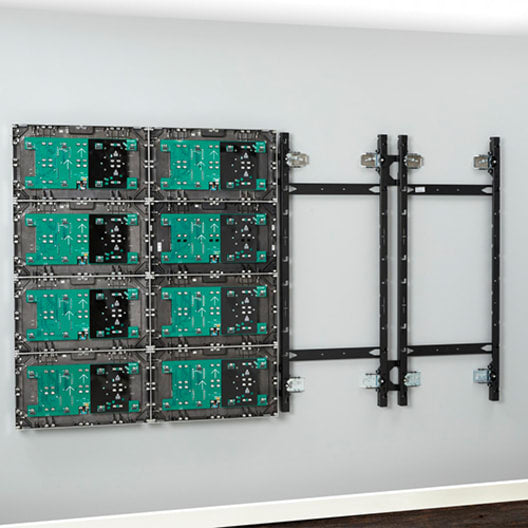

Chief’s modular TiLED™ design connects on all sides, enabling scalable and creative video wall layouts without custom fabrication or extended lead times. Offset mounting slots protect LED cabinets from friction during installation, while precision X-, Y-, and Z-axis micro-adjustments allow installers to compensate for wall irregularities and achieve perfect alignment, depth, and plumb.
This UL Listed, off-the-shelf solution is stockable and ready to ship, making it easy to specify, order, and install. The low-profile depth range delivers a clean, architectural finish ideal for corporate, control room, broadcast, and high-end commercial environments.
Compatible Philips LED Models:
27BDL9015L/00, 27BDL9112L/00, 27BDL9115L/00, 27BDL9119L/00,
27BDL6112L/00, 27BDL6115L/00, 27BDL6119L/00
| Specification | Details |
|---|---|
| Product Type | dvLED Video Wall Mount |
| Configuration | 1 × 4 (Four Displays, Vertically Stacked) |
| Display Orientation | Landscape |
| Compatible Display Series | Philips 27BDL 6000 & 9000 Series |
| Number of Displays Supported | 4 |
| Maximum Weight Capacity | 80 lbs (36.3 kg) |
| Overall Dimensions (H × W × D) | 53.5" × 23.9" × 2.63" (1359 × 608 × 67 mm) |
| Depth from Wall (with Display) | 4.05" – 4.80" (103 – 122 mm) |
| Mount Depth (Structure Only) | 2.6" (6.68 cm) |
| Height | 53.5" (135.89 cm) |
| Width | 23.9" (60.71 cm) |

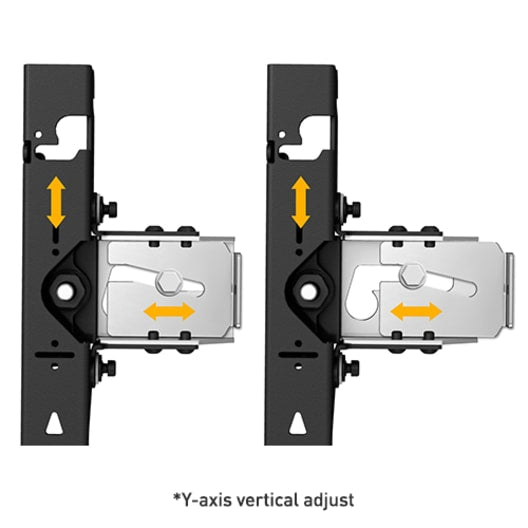

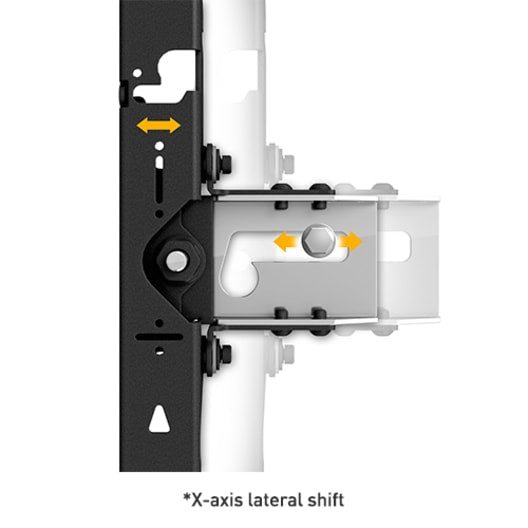

| Adjustability | X-axis lateral, Y-axis vertical, Z-axis plumb micro-adjustments |
| Mounting Application | Wall |
| Design Features | Modular, offset mounting slots, multi-display support |
| Security | Stacked mounting design |
| Certification | UL Listed |
| TAA Compliance | Not TAA Compliant |
| Shipping Weight | 25.5 lbs (11.57 kg) |
| UPC | 841872175409 |
