Description
The Chief TiLED™ 1x5 dvLED Wall Mount (TIL1X5AP) is a precision-engineered mounting solution designed to support five vertically stacked direct-view LED cabinets from the Absen Acclaim Plus and Acclaim Pro Series. This modular system enables the creation of a seamless, continuous video wall while maintaining exceptional alignment accuracy and a clean, low-profile installation.

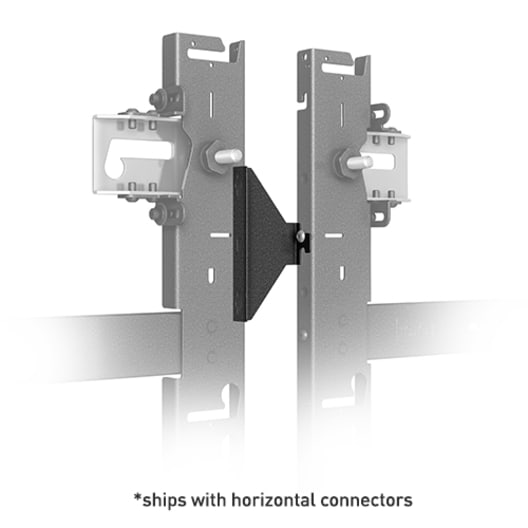

Engineered for professional AV environments, the TiLED™ mounting system features fine X-, Y-, and Z-axis micro-adjustments that allow installers to achieve perfect cabinet-to-cabinet alignment and compensate for wall irregularities. Offset mounting slots protect LED cabinet edges during installation, while keyhole mounting points streamline setup and reduce installation time.
As a standard, off-the-shelf solution, the TIL1X5AP is in stock and ready to ship with no custom lead times or project registration required. It is easy to specify, order, and install—making it an ideal choice for commercial, corporate, broadcast, and high-impact digital signage applications.
| Specification | Details |
|---|---|
| Product Type | dvLED Video Wall Mounting System |
| Configuration | 1 × 5 Vertical Stack |
| Compatible LED Series | Absen Acclaim Plus, Absen Acclaim Pro |
| Compatible Models | A2712 Plus, A2715 Plus, A2725 Plus, A2738 Plus, A2712 Pro, A2715 Pro |
| Number of Displays Supported | 5 |
| Orientation | Landscape |
| Mounting Application | Wall |
| Adjustability | Fixed with Micro-Adjustments |
| X-Axis Adjustment | Lateral micro-adjustment for precise positioning |
| Y-Axis Adjustment | Vertical micro-adjustment for cabinet alignment |
| Z-Axis Adjustment | Plumb adjustment to compensate for wall imperfections |
| Depth (Installed) | 1.8 in (4.57 cm) |
| Overall Dimensions (H × W × D) | 66.9 × 21.4 × 1.8 in (1699 × 544 × 46 mm) |
| Width | 21.4 in (54.36 cm) |
| Height | 66.9 in (169.93 cm) |
| Weight Capacity | 100 lb (45.4 kg) |
| Shipping Weight | 32 lb (14.51 kg) |
| Special Features | Modular design, offset mounting slots, low-profile installation |
| Certification | UL Listed |
| TAA Compliant | No |
| UPC | 841872174587 |
