Description

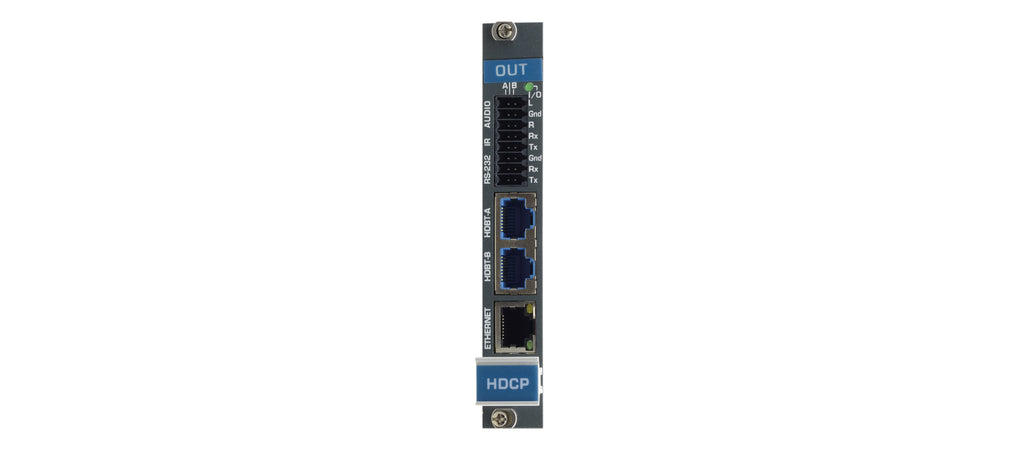

The Kramer DTAxr-OUT2-F16 is a high-performance 2-channel HDMI over Extended-Reach HDBaseT output card designed for the VS-1616 Modular Multi-Format Digital Matrix Switchers. Ideal for professional AV environments, it delivers long-distance 4K60 (4:2:0) video distribution with integrated control and audio capabilities.
This output card transmits HDMI, selectable embedded or de-embedded analog audio, bidirectional RS-232, IR, and Ethernet over HDBaseT twisted-pair cabling, enabling flexible and reliable signal extension. With support for up to 180 m (590 ft) in ultra-mode and full HDBaseT feature compliance, it ensures consistent performance across demanding installations such as auditoriums, control rooms, digital signage networks, and enterprise AV infrastructures.
Engineered with robust compliance standards including HDCP 1.4, HDMI 1.3a, and HDBaseT, the DTAxr-OUT2-F16 delivers secure, high-bandwidth signal transport while maintaining low power consumption and compact modular design for seamless chassis integration.
| Category | Details |
|---|---|
| Video Outputs | 2 × HDBaseT TP (RJ-45) |
| Ports | 2 × RS-232, 2 × IR, 2 × unbalanced audio (16-pin terminal block), 1 × Ethernet (RJ-45) |
| Max Resolution | 4K @ 60Hz (4:2:0) |
| Max Data Rate | 10.2Gbps total (3.4Gbps per channel) |
| Analog Audio | Selectable embedded / de-embedded |
| 3D Pass-Through | Supported |
| Transmission Distance | 130 m (430 ft) normal mode; 180 m (590 ft) ultra-mode (1080p @ 60Hz @ 24bpp) |
| Bandwidth (Per Channel) | Video: 3.4Gbps; Serial: 115200 |
| Power Consumption | 13W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90% (non-condensing) |
| Compliance | HDCP 1.4, HDMI 1.3a, HDBaseT, CE, RoHS, WEEE |
| Product Dimensions (W × D × H) | 19.00 × 13.00 × 2.00 cm (7.48 × 5.12 × 0.79 in) |
| Product Weight | 0.2 kg (0.5 lbs) |
| Shipping Dimensions | 24.20 × 16.80 × 6.00 cm (9.53 × 6.61 × 2.36 in) |
| Shipping Weight | 0.3 kg (0.7 lbs) |
