Description
The CyberPower PDU30SWHVT19ATNET is a high-performance switched Auto Transfer Switch (ATS) power distribution unit designed to provide continuous, redundant power to mission-critical IT and network equipment. Built for 2U rackmount installations, this PDU delivers 200–240V / 30A output and supports environments where uptime is essential.
With dual NEMA L6-30P power inputs, the unit automatically transfers between primary and secondary power sources if voltage thresholds are exceeded or if a failure occurs—ensuring uninterrupted operation for connected devices.

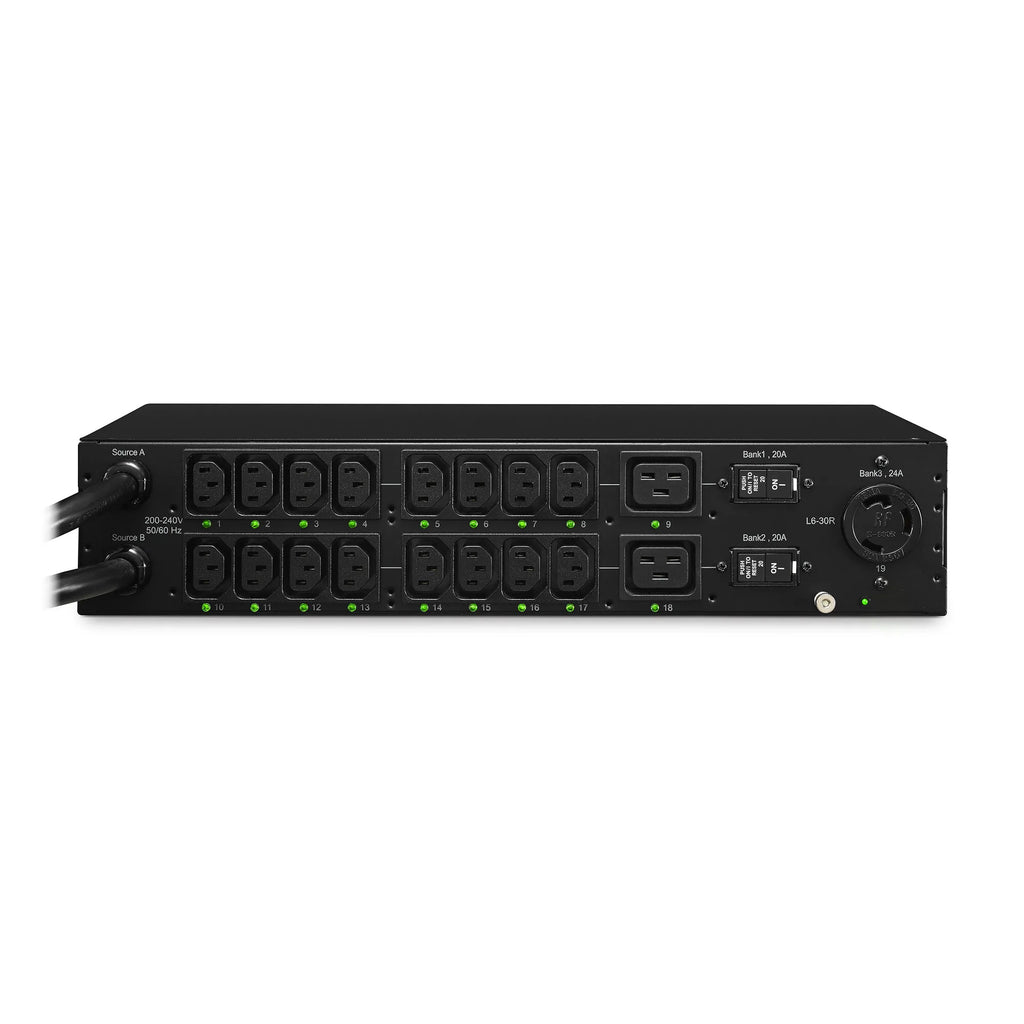

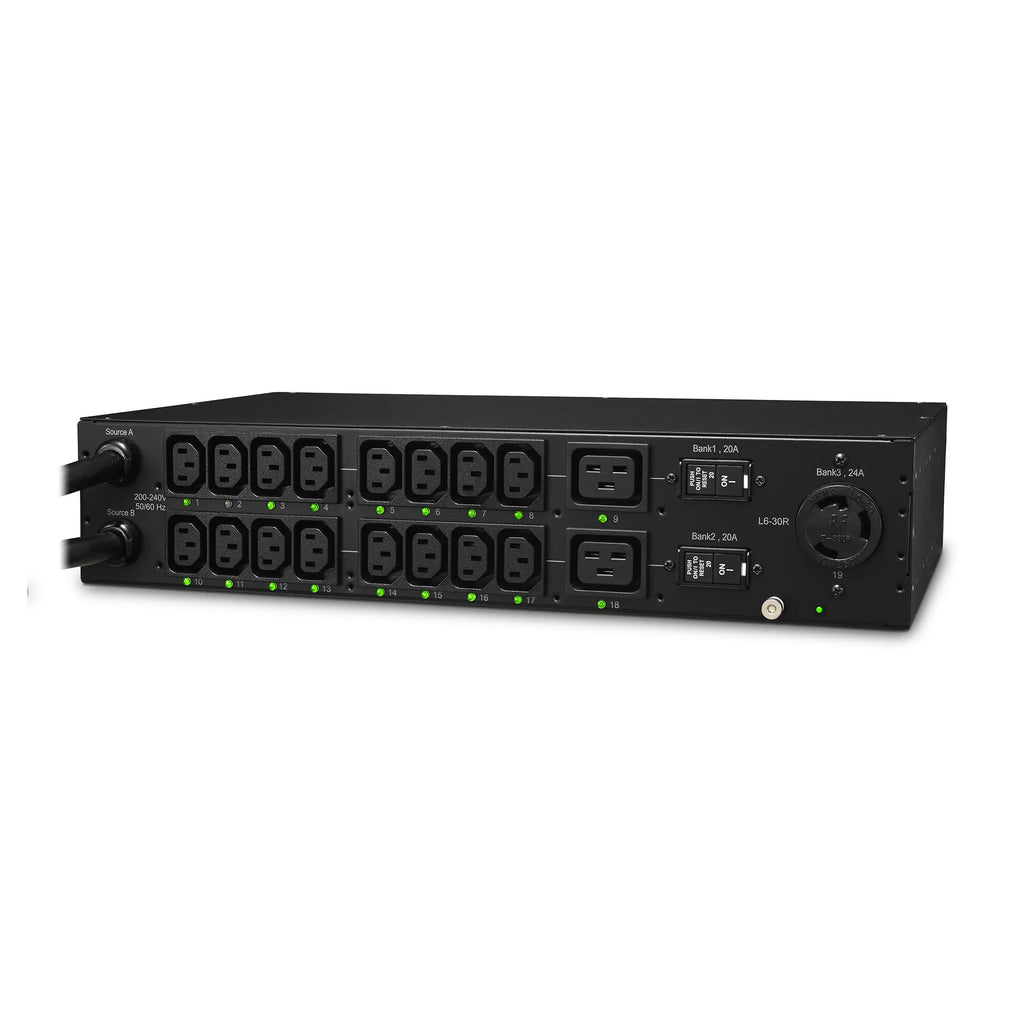

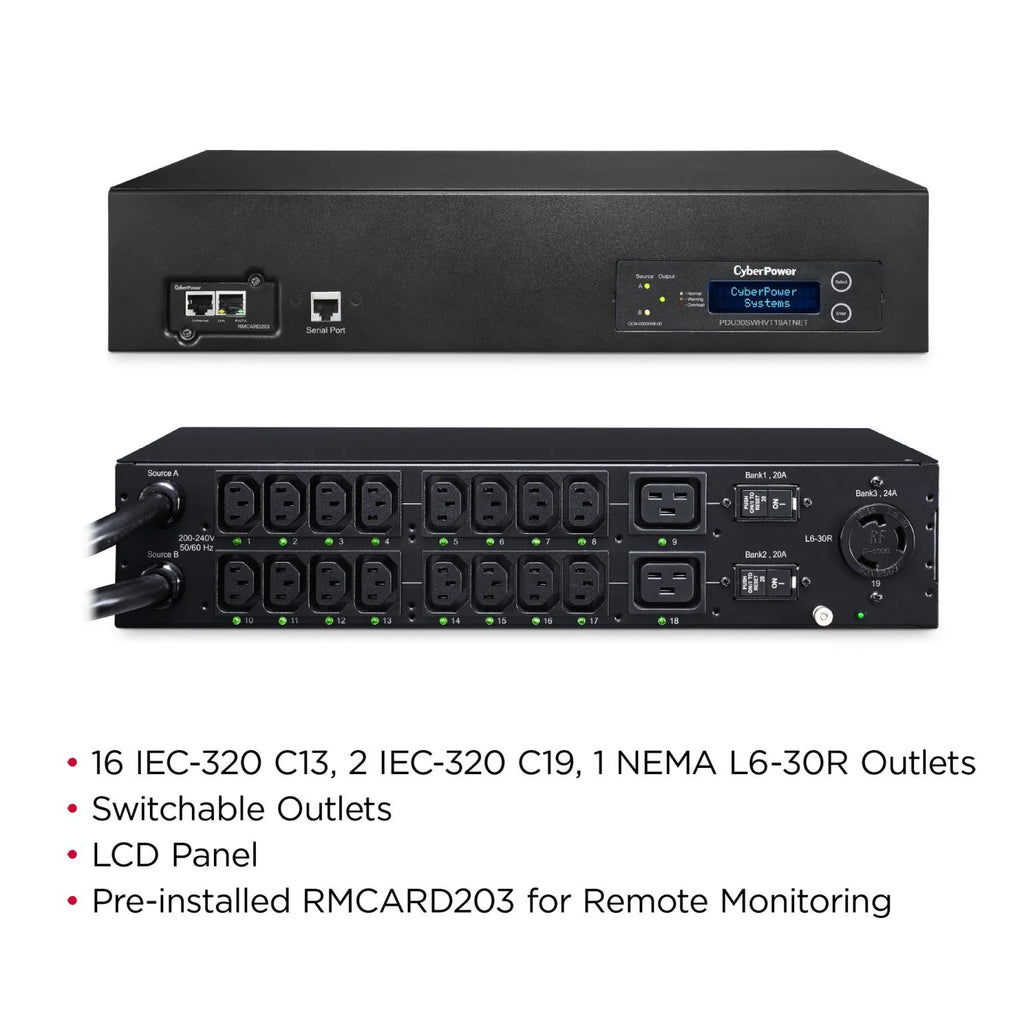

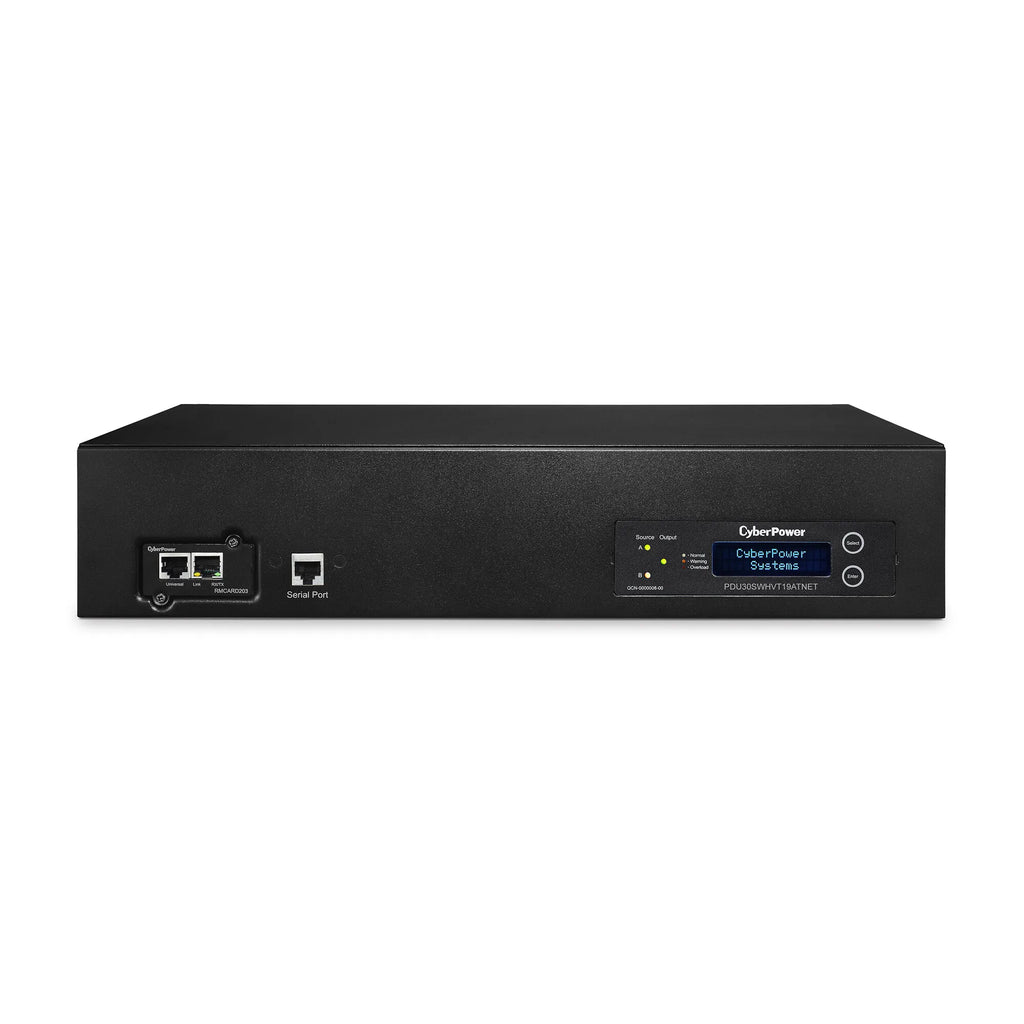

This model features 19 total outlets, including 16 IEC C13, 2 IEC C19, and 1 NEMA L6-30R, offering flexible connectivity for servers, switches, telecom gear, and enterprise hardware. The included SNMP/HTTP network management card enables remote monitoring and outlet-level control, while the integrated LCD provides real-time load and power status locally.
Engineered with industrial-grade construction and backed by a 3-year warranty, the PDU30SWHVT19ATNET is an ideal solution for redundant rack power distribution.
| Specification | Details |
|---|---|
| Brand | CyberPower |
| Product Type | Switched Auto Transfer Switch (ATS) PDU |
| SKU | PDU30SWHVT19ATNET |
| Rack Size | 2U Rackmount |
| Phase | Single Phase |
| Input Voltage | 200V – 240V |
| Input Frequency | 50Hz / 60Hz |
| Maximum Input Current | 30A (Derated to 24A) |
| Plug Type | 2 × NEMA L6-30P (Twist Lock) |
| Cord Length | 10 ft |
| Nominal Output Voltage | 200V – 240V |
| Total Outlets | 19 |
| Outlet Types | 16 × IEC C13, 2 × IEC C19, 1 × NEMA L6-30R |
| Outlet Location | Rear-mounted (19 outlets) |
| Outlet Switching | Local & Network Controlled |
| Overload Protection | 20A per bank |
| Outlet Banks | 2 |
| LCD Display | kW, Voltage, Amperage, Network Info, HW/FW Version |
| LED Indicators | Input, Output Load, Link, Tx/Rx, Outlet Status |
| Remote Monitoring | SNMP/HTTP via Installed Network Card |
| Included Network Card | RMCARD203 Installed |
| Connectivity Ports | Network, Environmental Sensor, Serial |
| Dimensions (W × H × D) | 3.5 × 17.05 × 9.3 in |
| Weight | 16.76 lbs |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Certifications | UL60950-1, FCC Class A, RoHS |
| Warranty | 3 Years |
