Description

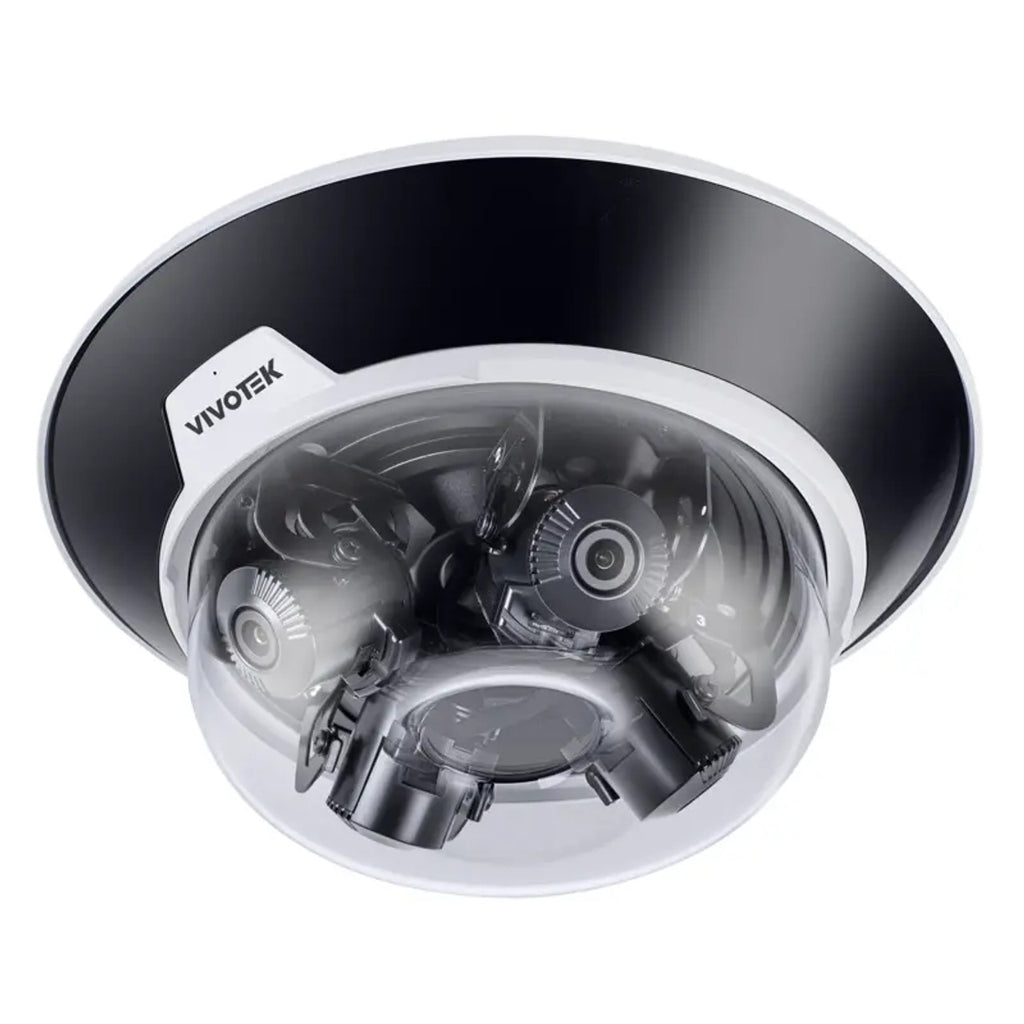

The Vivotek MA9322-EHTVL is a high-performance 20MP multi-sensor dome network camera designed to deliver unmatched wide-area surveillance with precise detail and coverage. Featuring four independent 5MP sensors with motorized vari-focal lenses, this versatile solution allows adjustable views for complete multi-directional monitoring from a single camera housing. Each sensor captures video at up to 2688×1920 resolution, ensuring sharp, clear images even in complex lighting conditions.
Equipped with advanced imaging technologies like WDR Pro (120 dB) for high-contrast environments and SNV (Supreme Night Visibility) for low-light performance, the MA9322-EHTVL ensures exceptional image quality day and night. Built-in Smart IR illuminators provide up to 30 meters of effective infrared coverage, while a removable IR-cut filter enhances performance in all lighting conditions.
Engineered for robust outdoor deployment, this camera is housed in a weather-proof IP66, vandal-resistant IK10, and NEMA 4X-rated enclosure. It supports seamless integration with existing security systems through H.265 compression, ONVIF compliance, and a wide range of network protocols. Two-way audio, event detection, and flexible installation features like remote focus and zoom make the MA9322-EHTVL an ideal solution for airports, transportation hubs, campuses, and large-scale perimeter surveillance.
| Category | Details |
|---|---|
| Model | MA9322-EHTVL |
| Image Sensor | 1/2.7" Progressive CMOS (4× 5MP) |
| Maximum Resolution | 2688 × 1920 per sensor |
| Total Resolution | 20MP (4× 5MP) |
| Lens Type | Motorized vari-focal, remote focus |
| Focal Length | f = 3.7 – 7.7 mm |
| Aperture | F1.9 – F2.9 |
| Field of View (Horizontal/Vertical/Diagonal) | 88.6°–40.1° / 61.2°–28.6° / 115.5°–49.5° |
| IR Illuminators | Built-in, up to 30 m with Smart IR |
| Minimum Illumination | 0.035 lux (Color), 0.005 lux (B/W), 0 lux (IR on) |
| Wide Dynamic Range | WDR Pro, 120 dB |
| Frame Rate | 12 fps @ 2688×1920 ×4, 30 fps @ 2560×1440 ×4 |
| Video Compression | H.265, H.264, MJPEG |
| Audio | Two-way audio, built-in microphone, G.711/G.726 |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP/RTP, FTP, SNMP, SMTP, NTP, QoS, UPnP, and more |
| Security Features | HTTPS, IEEE 802.1x, access list, password protection, user account management |
| Event Detection | Motion, tampering, audio, digital input, manual trigger, periodic, SD card status |
| Storage | MicroSD/SDHC/SDXC card, NAS |
| Power Supply | AC 24V or IEEE 802.3at PoE |
| Power Consumption | Max. 25 W |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Ingress Protection | IP66, IK10, NEMA 4X |
| Dimensions (W × H) | Ø 267 × 114 mm (main body), Ø 275 × 118 mm (with bracket) |
| Weight | 2.7 kg |
| Certifications | CE, FCC, RCM, VCCI, UKCA, UL, CB |
| Warranty | 36 months |
