Description

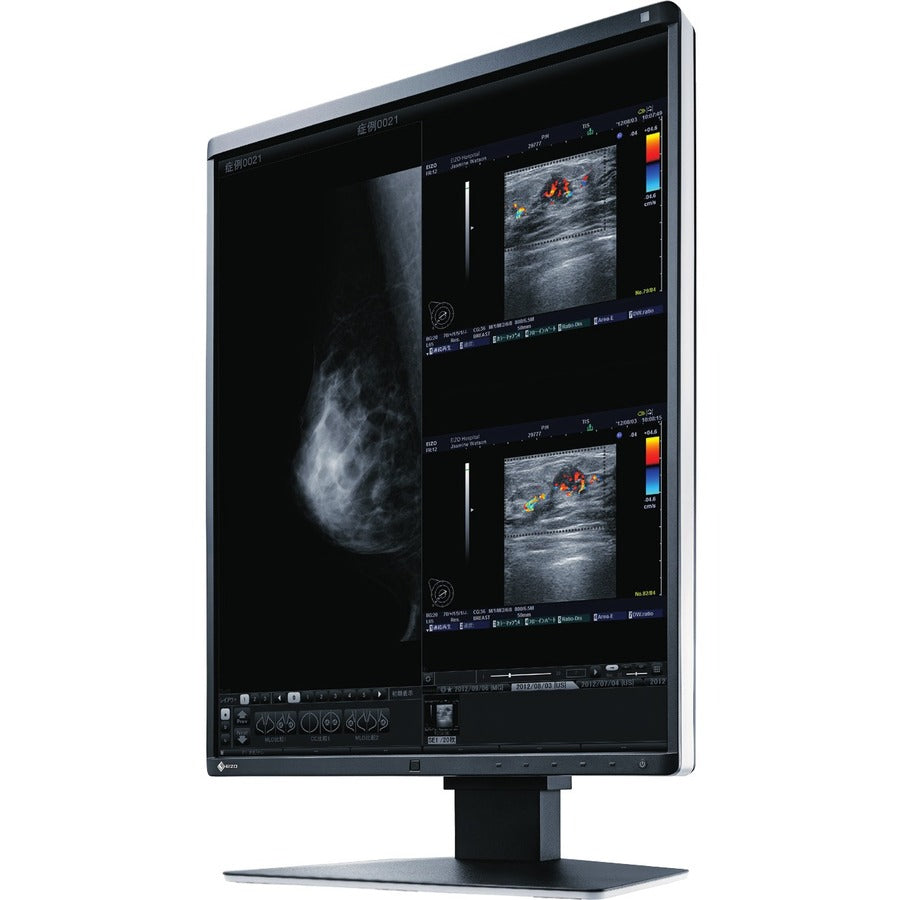

The EIZO RadiForce RX560-BK is a high-performance 21.3-inch 5MP color medical display meticulously engineered for breast imaging and diagnostic applications. With exceptional brightness of 1100 cd/m², a high contrast ratio of 1500:1, and support for over 1.07 billion colors, this display delivers crystal-clear visualization for both monochrome and color images. Its IPS panel technology ensures consistent brightness and wide 178° viewing angles, ideal for multi-user diagnostic environments.
Purpose-built for demanding medical imaging tasks such as mammography, breast tomosynthesis, ultrasound, CT, and MRI, the RX560-BK offers advanced features including Auto Luminance Control, Digital Uniformity Correction, and integrated front sensors to maintain long-term image stability and accuracy. The display’s ergonomic stand with height, tilt, and swivel adjustments, along with its anti-glare coating, ensures comfortable viewing during extended use. Seamless connectivity via DVI-D and DisplayPort, plus built-in presence sensors and USB 2.0 hub, complete this diagnostic-grade solution trusted by healthcare professionals worldwide.
| Specification | Details |
|---|---|
| Model | EIZO RadiForce RX560-BK |
| Display Type | LED-backlit LCD monitor |
| Screen Size | 21.3" (54.1 cm) |
| Native Resolution | 2048 x 2560 (5MP) |
| Panel Technology | IPS (TFT Active Matrix) |
| Brightness | 1100 cd/m² |
| Contrast Ratio | 1500:1 |
| Color Support | 1.074 billion colors (10-bit) |
| Response Time | 12 ms |
| Viewing Angle | 178° horizontal / 178° vertical |
| Pixel Pitch | 0.165 mm |
| Aspect Ratio | 4:5 |
| Display Coating | Anti-glare |
| Adjustments | Height (3.5"), Swivel (±78°), Tilt (-5° to +30°), Rotation (90°) |
| Features | Auto Luminance Control, Backlight Sensor, CAL Switch, Digital Uniformity Correction, Human Sensor, Integrated Front Sensor |
| Medical Applications | Breast tomosynthesis, mammography, ultrasound, CT, MRI |
| Interfaces | DVI-D (dual link), DisplayPort, DisplayPort output, USB 2.0 upstream (Type B), 2 x USB 2.0 downstream (Type A) |
| Built-in Devices | Presence sensor, USB 2.0 hub |
| Included Software | RadiCS LE, ScreenManager Pro for Medical |
| Mount Interface | 100 x 100 mm VESA |
| Power Consumption | 43 W (typical), 1 W (standby) |
| Frequency | 50/60 Hz |
| Dimensions (with stand) | 13.3" W x 7.9" D x 16.6" H |
| Weight (with stand) | 38.14 lbs |
| Color | Black |
| Certifications | ANSI/AAMI ES60601-1, FCC Class B, IEC 60601-1, RoHS, VCCI Class B, WEEE, and more |
| Warranty | 5 Years Limited |
