Description

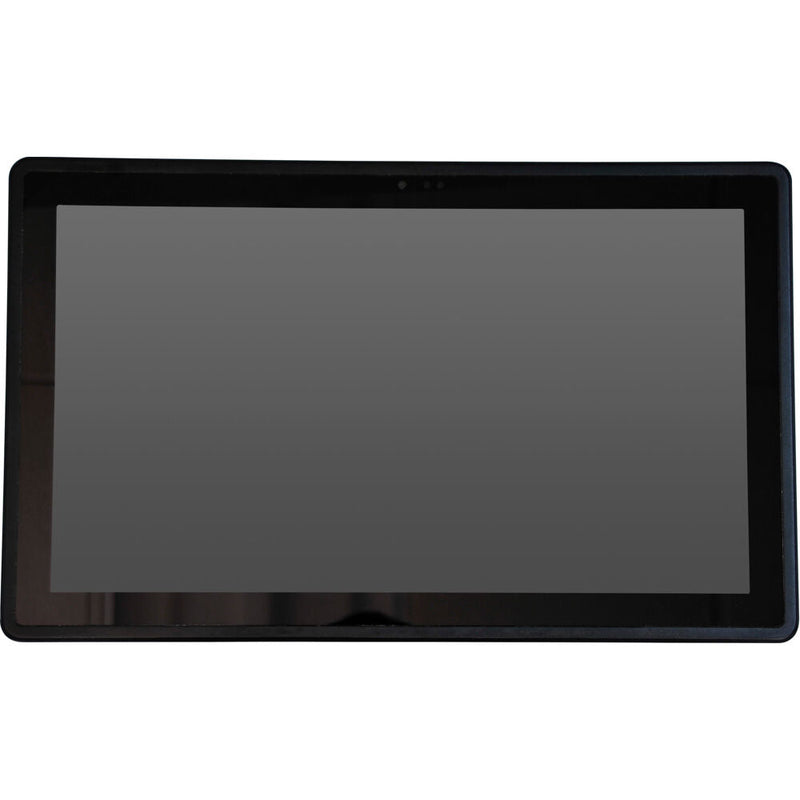

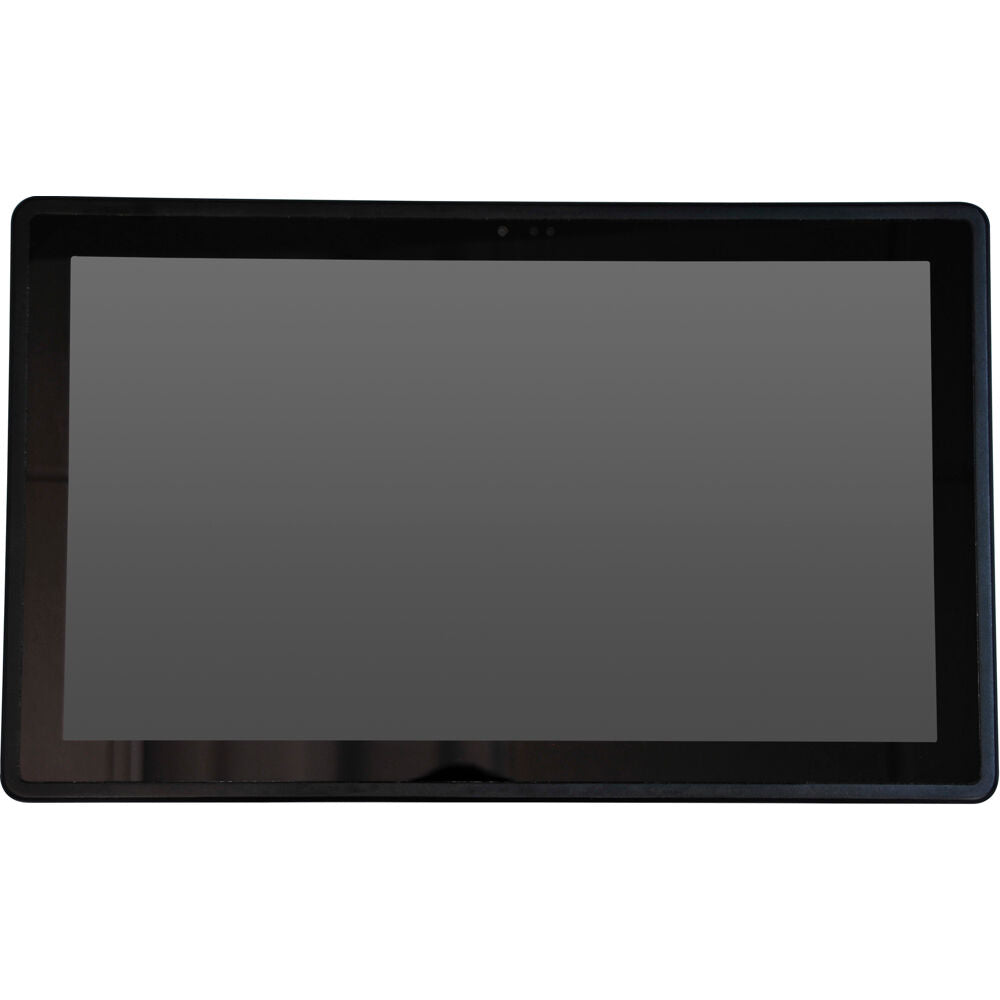

The Mimo Monitors MOT-21580H is a high-brightness 21.5-inch Full HD outdoor commercial display engineered for continuous, reliable operation in demanding environments. Delivering up to 1500 nits of brightness with anti-glare treatment, this display ensures clear visibility even in direct sunlight, making it ideal for outdoor digital signage, transportation hubs, quick-service restaurants, and public venues.
Designed for durability, the MOT-21580H features a rugged all-aluminum enclosure with IP65-rated protection against dust, water, and environmental elements, along with IK10-rated impact resistance for added security in high-traffic areas. Its wide operating temperature range from -20 to 140°F ensures consistent performance across extreme climates.
With an embedded Android OS powered by an RK3288 processor, this display enables seamless content deployment without the need for external media players. Flexible connectivity options, including HDMI, VGA, USB, and Ethernet, support a wide range of integration scenarios, while its 24/7 duty cycle ensures uninterrupted operation for mission-critical applications.
| Specification | Details |
|---|---|
| Display Size | 21.5 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | LCD |
| Brightness | 1500 nits |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angles | 178° horizontal / 178° vertical |
| Refresh Rate | 60 Hz |
| Surface Treatment | Anti-glare, 3H hardness |
| Touch Capability | Non-touch |
| Operating System | Android (RK3288 processor) |
| Connectivity | HDMI, VGA |
| Audio Output | 3.5 mm analog audio |
| USB Ports | 1 x USB-A |
| Ethernet | 1 x RJ45 |
| HDCP Support | Yes |
| Ambient Light Sensor | Yes |
| Built-in Speakers | Not included |
| Power Consumption | 60W (typical operation) |
| Input Power | 100 to 240 VAC, 50/60 Hz |
| Mounting | VESA 100 x 200 mm |
| Enclosure | All-aluminum housing |
| Environmental Rating | IP65 (water, dust, humidity resistant) |
| Impact Protection | IK10 rated |
| Operating Temperature | -20°F to 140°F (-28°C to 60°C) |
| Duty Cycle | Designed for continuous 24/7 operation |
| Certifications | CE, FCC, RoHS |
| Included Accessories | Power supply, remote control |
