Description

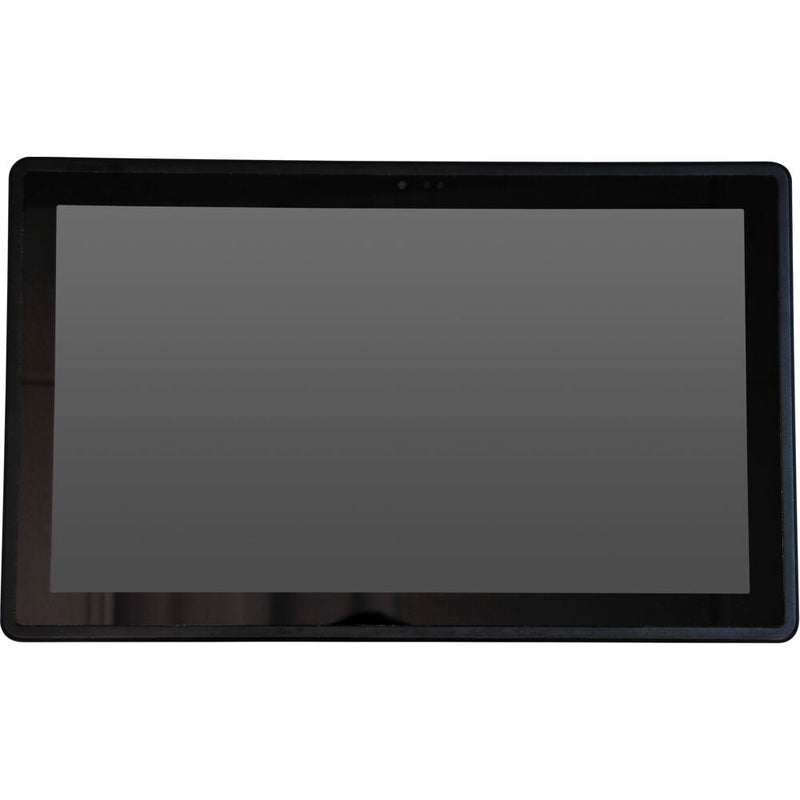

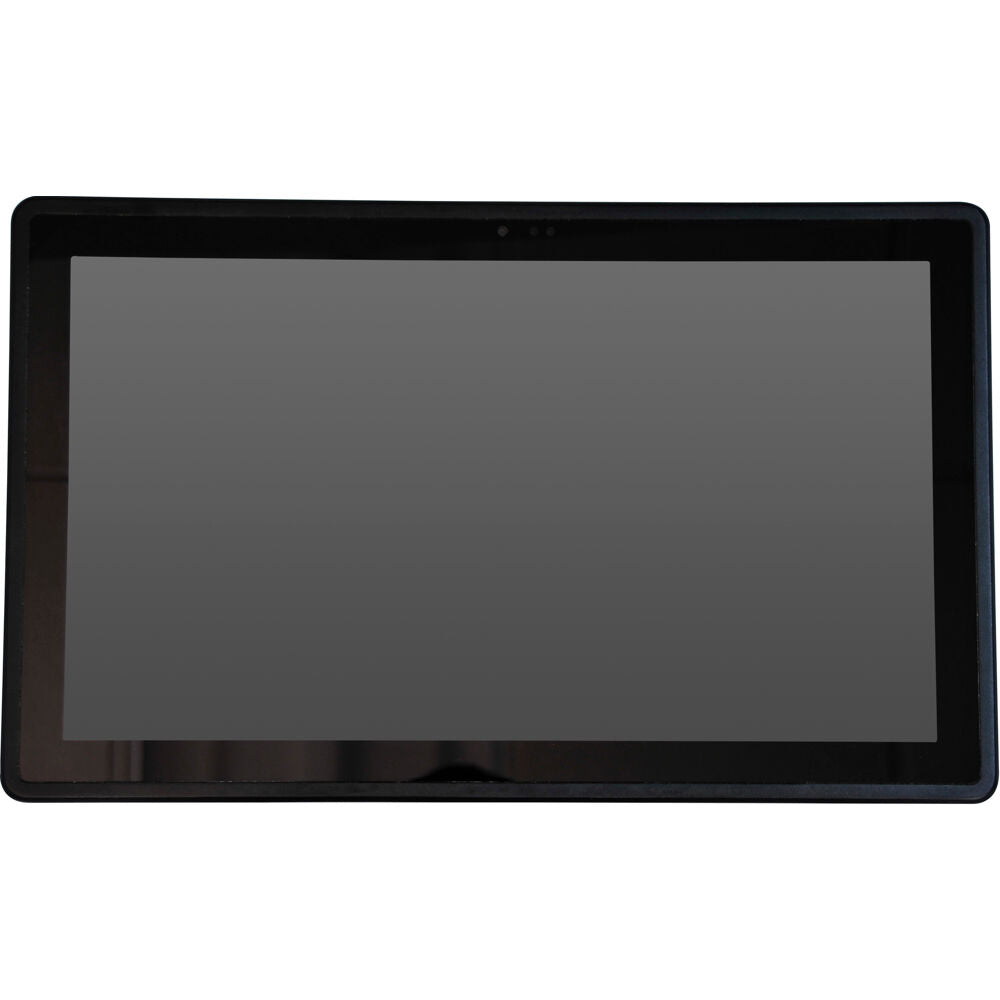

The Mimo Monitors 21.5-inch Outdoor Touchscreen Commercial Monitor is engineered for high-performance digital signage in demanding outdoor environments. Featuring a bright 1500-nit Full HD display, this unit ensures clear visibility even in direct sunlight, making it ideal for applications such as quick-service restaurants, transportation hubs, sports venues, and retail exteriors.
Designed for reliability, the display operates within a wide temperature range from -20 to 140°F, supporting continuous 24/7 usage. Its rugged all-aluminum enclosure is IP65-rated for protection against dust, water, and environmental elements, while IK10 impact resistance provides durability against vandalism.
The integrated Android operating system enables seamless deployment of interactive signage without the need for external media players. A responsive 10-point capacitive touchscreen, combined with optical bonding and anti-glare glass, ensures precise interaction and enhanced readability in all lighting conditions. With versatile connectivity options and enterprise-grade durability, the MOT-21580CH delivers a complete outdoor signage solution.
| Specification | Details |
|---|---|
| Display Size | 21.5 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 1500 nits high-brightness display |
| Contrast Ratio | 1000:1 |
| Panel Type | LCD |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Refresh Rate | 60 Hz |
| Touch Technology | 10-point projected capacitive touch |
| Surface Treatment | Anti-glare with optical bonding |
| Operating System | Embedded Android OS |
| Connectivity - Video Inputs | 1x HDMI, 1x VGA |
| Audio Output | 3.5 mm analog audio |
| USB Ports | 1x USB-A for touch control |
| Ethernet | 1x RJ45 LAN |
| Ambient Light Sensor | Yes |
| Built-In Speakers | No integrated speakers |
| Power Consumption | 60W (typical operation) |
| Input Power | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | -20°F to 140°F (-28°C to 60°C) |
| Environmental Protection | IP65-rated for water, dust, and humidity resistance |
| Impact Protection | IK10-rated impact-resistant enclosure |
| Housing | Durable all-aluminum construction |
| Mounting Compatibility | VESA 100 x 200 mm |
| Duty Cycle | Designed for continuous 24/7 operation |
| Dimensions | 21.4 x 13.2 x 2.4 inches |
| Certifications | CE, FCC, RoHS compliant |
| Included Accessories | Power supply, remote control |
