Description

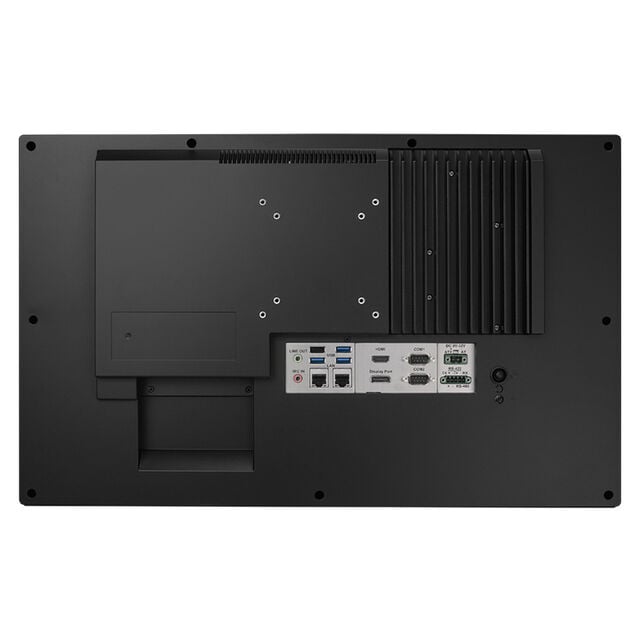

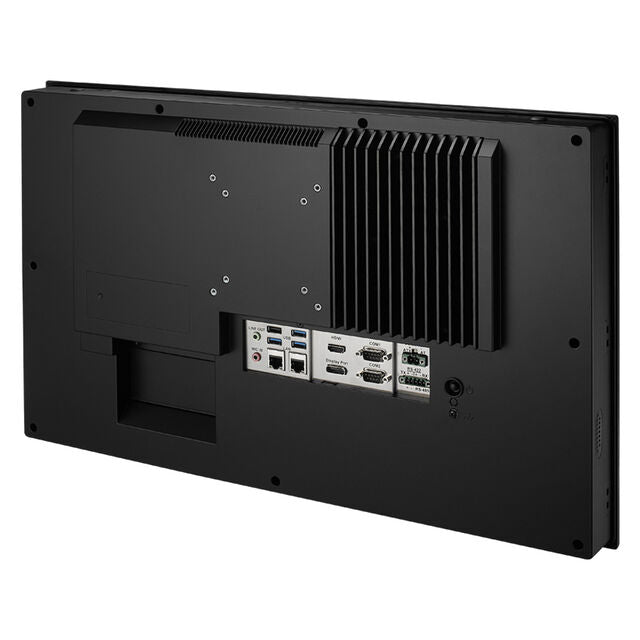

The Advantech PPC-421W-PD7A is a high-performance 21.5-inch fanless widescreen industrial Panel PC designed for demanding HMI and factory automation environments. Built with an Intel® 13th Gen Core™ i7-1365URE processor, this system delivers powerful computing in a rugged, silent, maintenance-free platform.
Featuring a true-flat Full HD display with projected capacitive multi-touch, rich industrial I/O, dual 2.5GbE with TSN support, and PCIe/PCI expansion capability, the PPC-421W-PD7A is an ideal solution for smart manufacturing, machine control, and industrial visualization applications.
| Specification Category | Details |
|---|---|
| Model | PPC-421W-PD7A |
| Brand | Advantech |
| Display Size | 21.5” TFT LCD (True-Flat) |
| Resolution | 1920 × 1080 (Full HD) |
| Touchscreen | Projected Capacitive Multi-Touch (P-CAP), Anti-Glare |
| Processor | Intel® Core™ i7-1365URE (13th Gen) |
| CPU Cores / Threads | 10 Cores |
| Memory Support | DDR5 4800 MHz, up to 64GB (2 × SODIMM) |
| Storage Bays | 2 × 2.5” SATA (7mm) |
| M.2 Slot | 1 × M.2 2242/2280 (Storage SATA/NVMe PCIe x4) |
| Ethernet Ports | Dual Intel® I226LM 2.5GbE (TSN Supported) |
| USB Ports | 3 × USB 3.2, 1 × USB 2.0 |
| Serial Ports | 5 × COM (RS-232 / Isolated RS-422/485) |
| Video Outputs | HDMI 1.4, DisplayPort 1.4a |
| Expansion Slots | PCIe x4 + Optional PCI Slot |
| Security | TPM 2.0 Hardware Security Module |
| Mounting Options | Panel Mount / VESA 75 × 75 & 100 × 100 |
| Front Panel Protection | IP66 Rated |
| Input Voltage Range | 9 ~ 32 VDC Wide Range |
| Operating Temperature | -20°C to 60°C |
| Dimensions (W × H × D) | 558.4 × 349.8 × 63.8 mm |
| Weight | Approx. 7.7 kg |
| OS Support | Windows 11 64-bit, Windows 10 IoT LTSC, Linux |
