Description

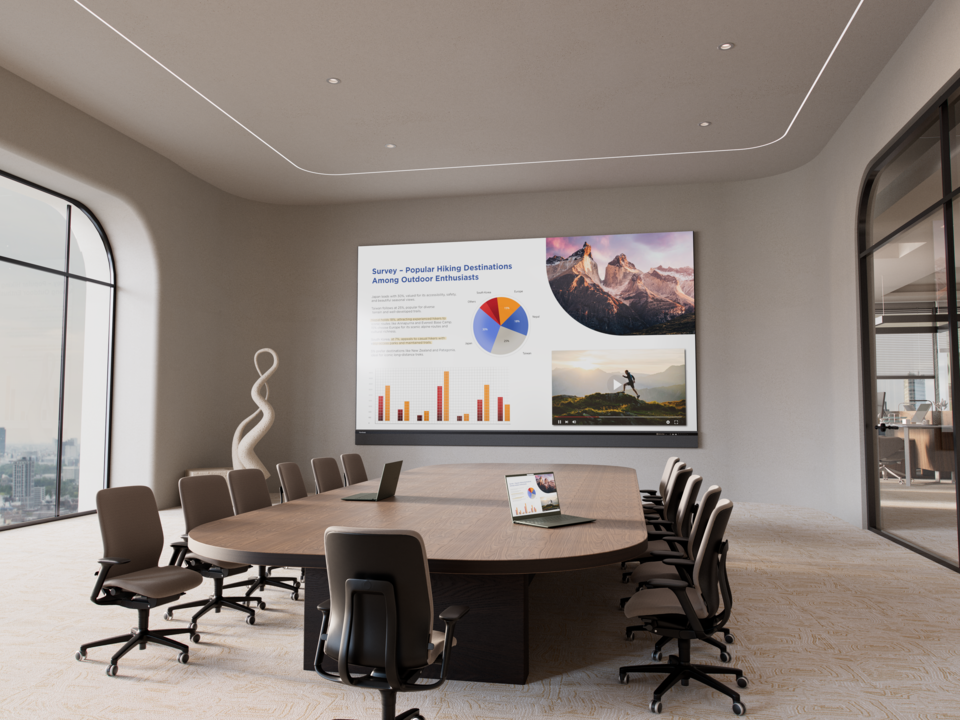

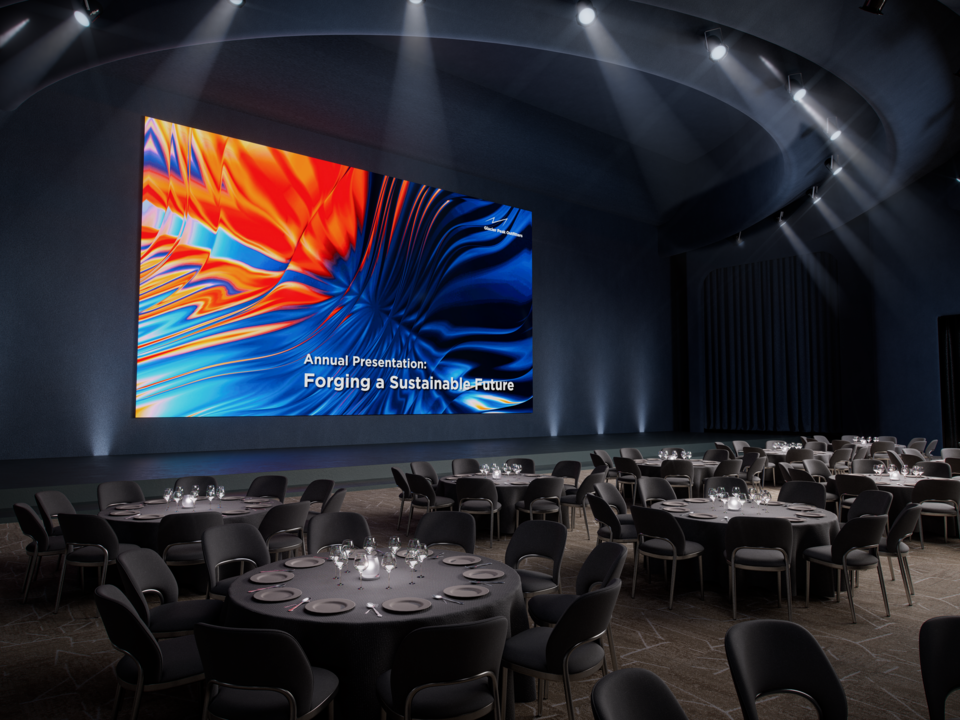

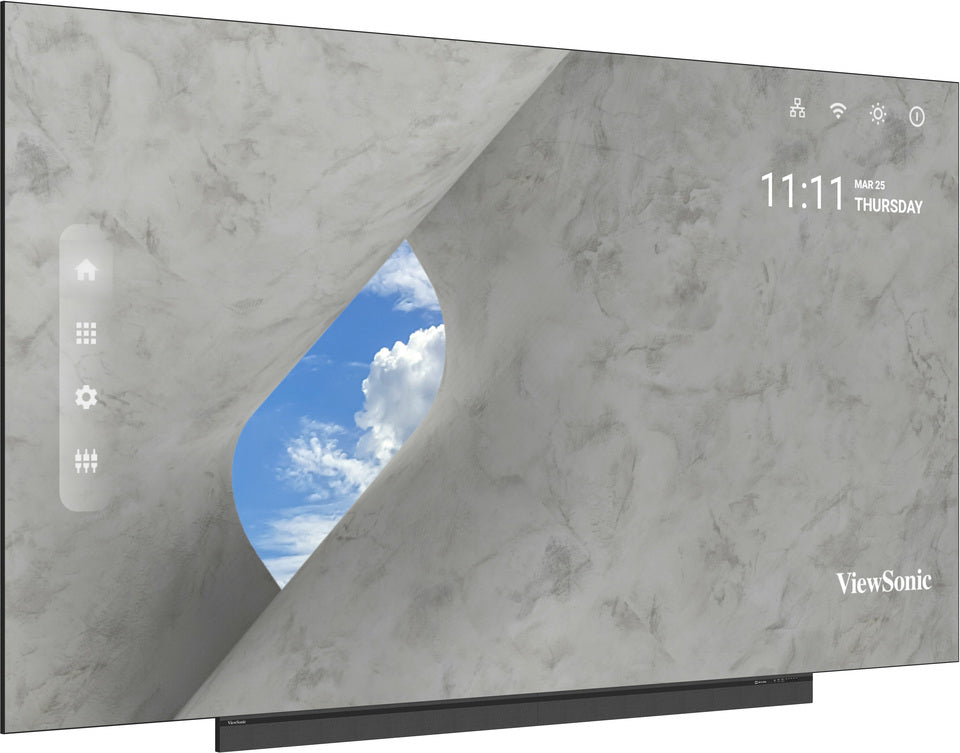

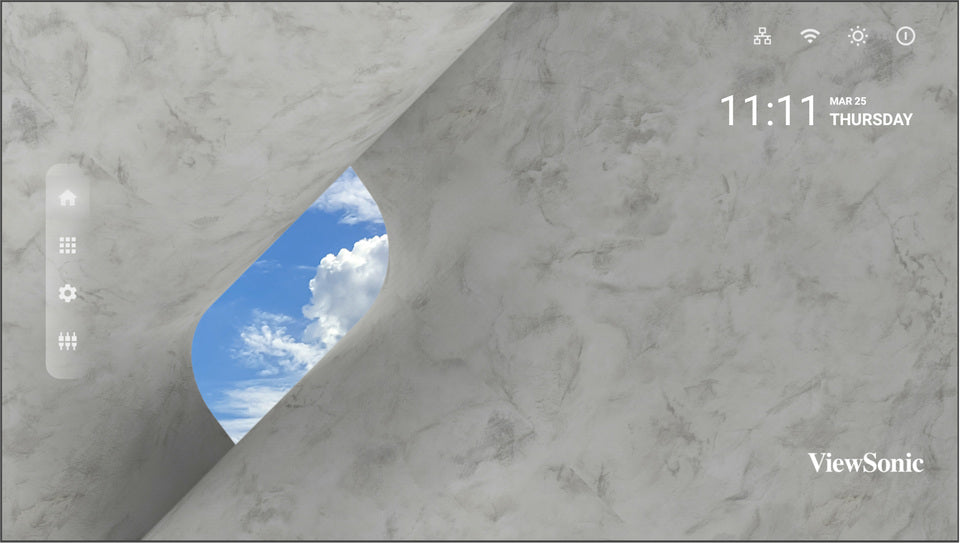

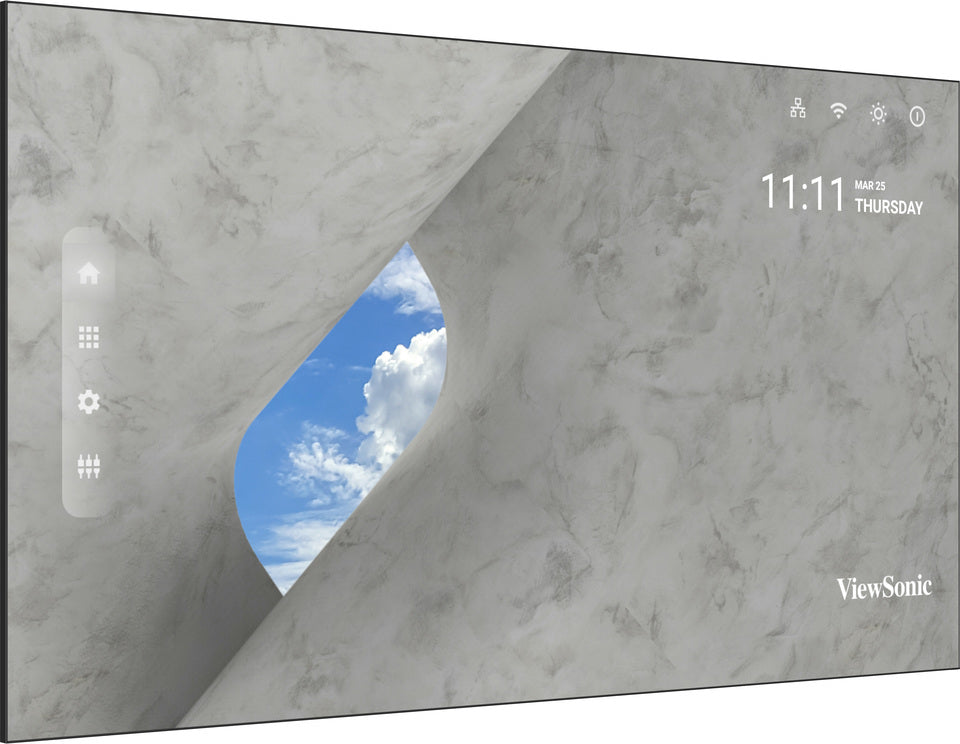

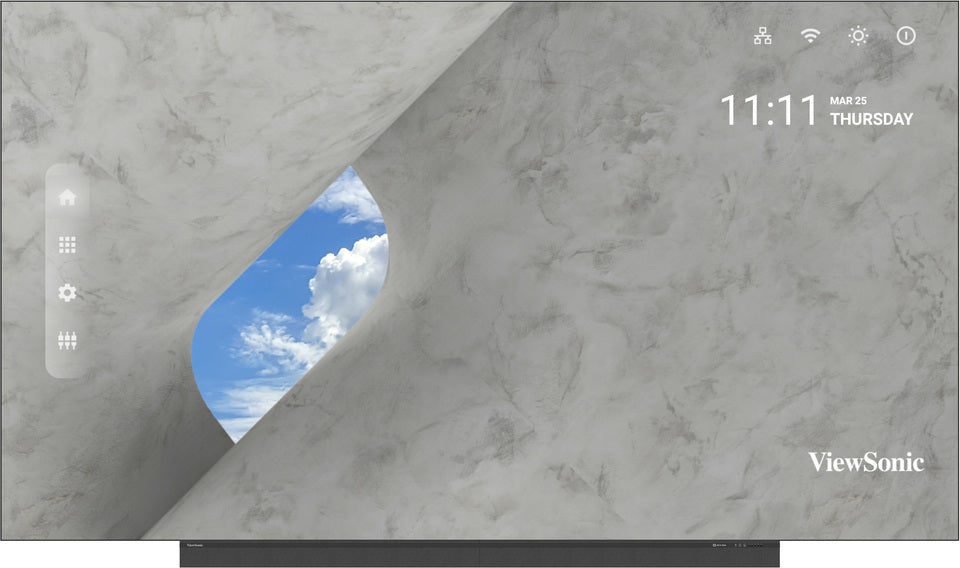

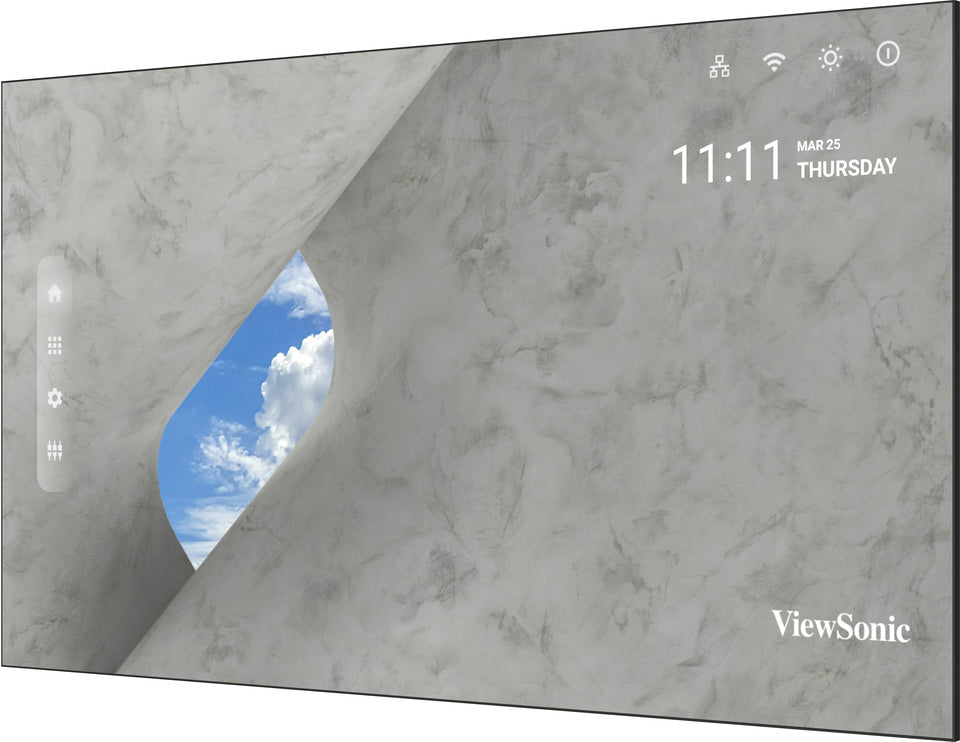

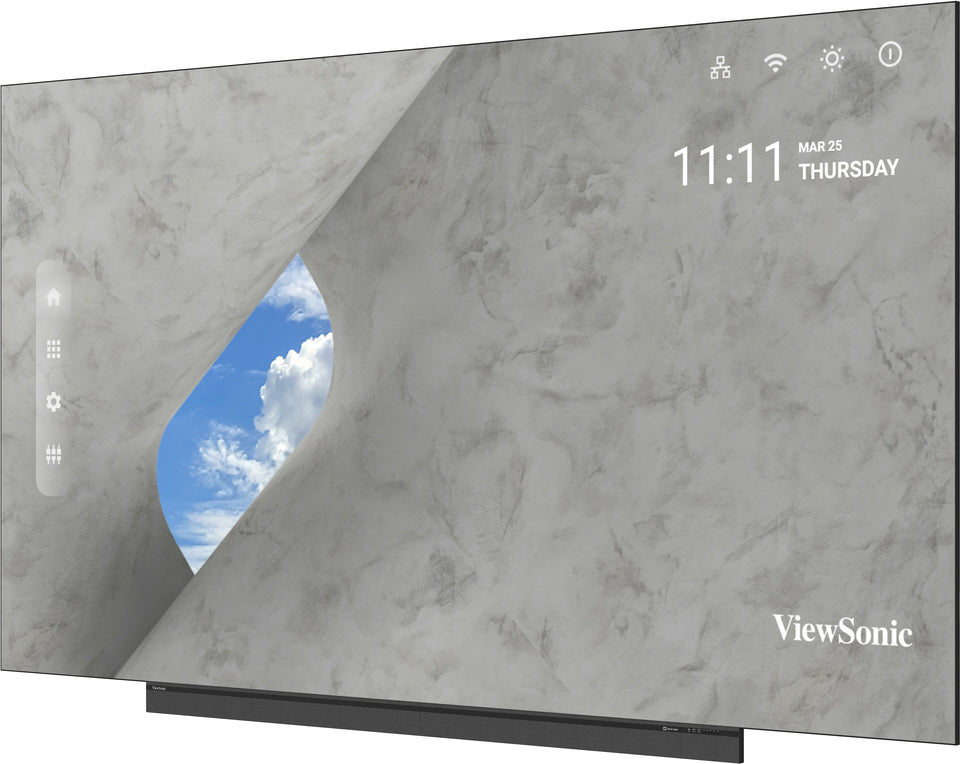

The ViewSonic LDP217-121C is a 217-inch enterprise-grade All-in-One LED Display built for impactful communication in premium boardrooms, auditoriums, and high-end collaboration spaces. Boasting true 4K UHD resolution and Mini LED architecture, it delivers lifelike detail, rich color depth, and exceptional visual uniformity. Its advanced Flip-Chip COB (Chip-on-Board) technology ensures outstanding durability with IP54 dust and water resistance and IK08 impact protection, making it ideal for high-traffic professional environments.
Installation is effortless with All-in-One integration that combines power, control, image stitching, and display in a streamlined setup process—two people can assemble it in under two hours. A sleek 31 mm profile and near bezel-free edge enhance the aesthetics of any modern space.
Engineered for energy efficiency, the LDP217-121C employs common-cathode LEDs and intelligent ICs to optimize power use. Smart collaboration tools like PIP/PBP display modes, LAN/RS-232 control, and optional wireless content sharing via ViewShare and AirSync enable seamless teamwork and flexible content delivery.
With its superior visual fidelity, sustainable design, and professional-grade reliability, the LDP217-121C defines the future of large-format LED presentation solutions.
| Specification | Details |
|---|---|
| Screen Size | 217" |
| Display Area (mm) | 4800 (H) × 2700 (V) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Panel Technology | Direct View LED |
| LED Package Type | Flip-Chip COB |
| Pixel Pitch | 1.25 mm |
| Brightness (Max) | 600 nits (100 levels adjustable) |
| Contrast Ratio (Typ.) | 10,000:1 |
| Color Temperature | 3000 K – 10,000 K |
| Orientation | Landscape |
| Viewing Angles (Typ.) | H = 170°, V = 170° |
| LED Lifetime (Typ.) | 100,000 hours |
| Local Storage | 32 GB (26 GB available) |
| Embedded OS | Android 9.0 |
| Resolution Support | VGA (640 × 480) to 4K (3840 × 2160 @ 60 Hz) |
| HDTV Compatibility | 480p, 576p, 720p, 1080p, 2160p |
| Horizontal Frequency | 31 K – 94 KHz |
| Vertical Scan Rate | 56 – 85 Hz |
| Inputs | HDMI 2.0 × 4 (HDCP 2.2, internal × 3, external × 1); USB-A × 3 (1 × USB 3.0, 2 × USB 2.0); RJ45 × 3 (Internet × 2, Control × 1); USB-C × 1 (Data Only); Wi-Fi 2.4G/5G Hz |
| Outputs | HDMI 2.0 × 1; Audio Out (3.5 mm) × 2; S/PDIF × 1; Speaker 30 W × 2 |
| Control | RJ45 (LAN Control); RS232 (DB 9-Pin); IR Receiver; USB (Service Port) |
| Power Supply Voltage | 100-120 V / 40 A ~ 50/60 Hz or 220-240 V / 25 A ~ 50 Hz |
| Power Consumption | 1150 W (Typ.), 3449 W (Max), < 0.5 W (Hibernate) |
| Operating Temperature | 0 ~ 40 °C |
| Ingress Protection | IP54 (Front) |
| Impact Protection | IK08 (Front) |
| Total LED Modules | 512 |
| Net Weight | 392 kg (864.21 lbs) |
| Gross Weight | 628 kg (1384.5 lbs) |
| Product Dimensions (WxHxD) | 4812 × 2847 × 41 mm (189.45 × 112.09 × 1.61 in) |
| Dimensions with Wall Mount (WxHxD) | 4812 × 2847 × 59.8 mm (189.45 × 112.09 × 2.35 in) |
| Standard Accessories | Power Cords × 2, LAN Cable (Cat 5E), IR Extender, Remote Control, Installation Guide, Wall Mount, Spare LED Modules × 36, Maintenance Tools (LD-MK-004, LD-MK-006) |
| Optional Accessories | LD-MK-004, LD-MK-006 Maintenance Tools |
| Audio Output | 30 W × 2 Speakers |
| Connectivity | LAN, RS-232, HDMI 2.0, USB Type-A/C, Wi-Fi, Bluetooth (Antenna Included) |
