Description

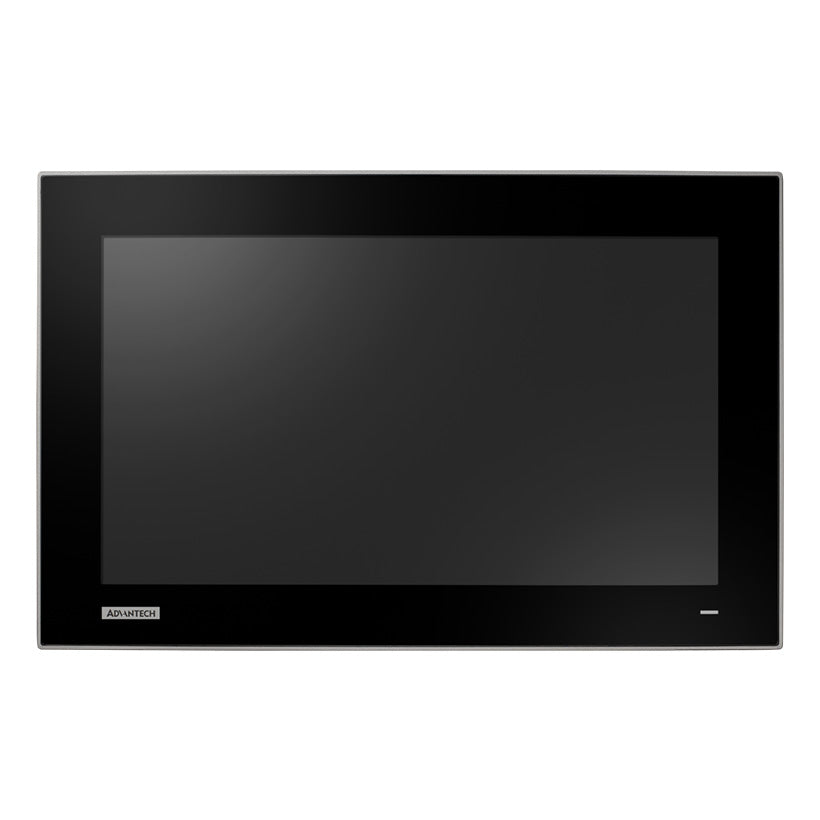

The Advantech FPM-724W-P9AE is a 23.8-inch Full HD industrial monitor engineered for demanding factory, automation, and IIoT environments. It features a true-flat projected capacitive (P-CAP) touchscreen with 10-point multi-touch support, delivering precise and responsive operation even in industrial settings.
Built with a robust die-cast aluminum chassis and an IP66-rated front bezel, the FPM-724W-P9AE is designed for durability, reliability, and long-term deployment. Multiple video inputs including HDMI, DisplayPort, and VGA ensure flexible system integration, while wide mounting options make it suitable for panel, wall, desktop, or VESA installations.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | FPM-724W |
| SKU | FPM-724W-P9AE |
| Display Size | 23.8 inches |
| Display Type | Full HD TFT LED LCD |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Touch Technology | Projected Capacitive (P-CAP) |
| Touch Points | 10-Point Multi-Touch |
| Touch Interface | USB |
| Viewing Angle (H/V) | 178° / 178° |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Surface Treatment | Anti-Glare |

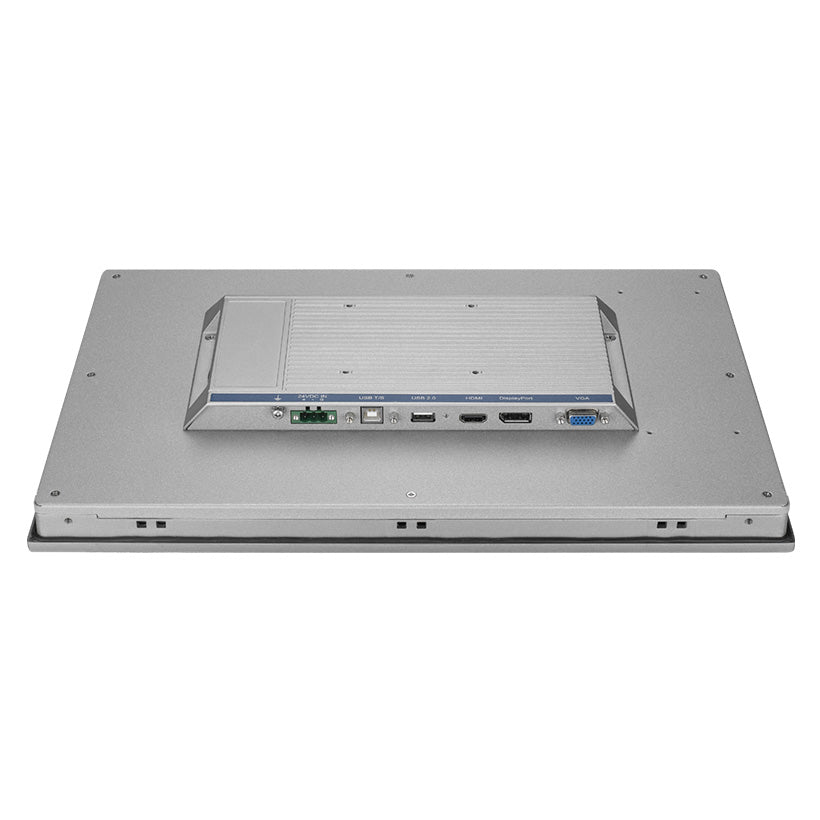

| Video Inputs | HDMI, DisplayPort, VGA |
| USB Ports | 1 × USB 2.0 Type-A |
| Enclosure | Die-cast aluminum front and rear |
| Front Bezel Rating | IP66 |
| Mounting Options | Panel, Wall, Desktop, VESA (75 × 75 mm) |
| Power Input | 24V DC ±20% (Terminal Block) |
| Power Consumption | 0.158 W (Standby), 25.47 W (Max) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Operating Humidity | Up to 95% RH, non-condensing |
| Dimensions (W × H × D) | 595.9 × 374.1 × 53 mm |
| Weight (Net) | 7.8 kg |
