Description

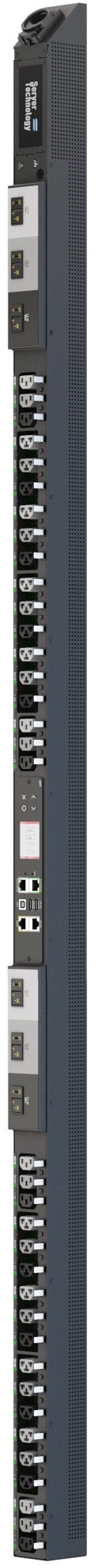

The Server Technology® PRO4X C4G36RA-GPBD2FE1 Switched POPS PDU delivers advanced power management for high-density data centers. Powered by the Xerus™ network interface platform, this intelligent PDU offers remote access to outlet control, per-outlet and per-inlet power monitoring, and branch current measurements for precise load management.
Featuring HDOT Cx hybrid outlets (C13/C19), the PDU ensures maximum flexibility and future-proof compatibility. Built with RamLock self-locking outlets to secure power cords, RGB LED indicators for outlet status, and hot-swappable controllers for serviceability, it provides unmatched reliability. With support for environmental monitoring sensors, SNMP alerts, and multi-unit linking up to 16 PDUs, the PRO4X ensures secure, scalable, and efficient rack power distribution.
Ideal for modern data centers, it supports up to 22kW global power capacity, advanced power quality measurements, and operates safely in 60 °C environments.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Product Line | PRO4X |
| Model / SKU | C4G36RA-GPBD2FE1 |
| Outlets | 36 total – (12) IEC C13, (24) HDOT Cx (C13/C19 hybrid) |
| Input Voltage | 220/380V–240/415V, 50/60 Hz |
| Input Plug | IEC 60309 3P+N+G 6Hr (32A Global / 30A North America) |
| Input Power Capacity | Global: 22.0 kW / North America: 17.3 kW |
| Input Current Rating | Global: 32A / North America: 24A |
| Monitoring | Per-inlet (PIPS®) & per-outlet (POPS®) power sensing |
| Control | Switched outlets, reboot individual/group loads |
| Security | 256-bit AES, SSH, SSL, HTTPS, RADIUS, LDAP(S), TACACS+ |
| Networking | Dual Ethernet (10/100/1000 Mbps), Optional Wi-Fi |
| Display | Multi-color LCD + RGB outlet indicators |
| Branch Circuit Protection | UL 489 rated 2-pole breakers, ≤16A |
| Physical Dimensions | 70.0" x 2.2" x 2.5" (1778 x 56 x 64 mm) |
| Environmental Rating | 0°C–60°C operating, up to 3000m elevation |
| Certifications | UL/CSA 62368-1, EN/IEC 62368-1, FCC Class A, CE, UKCA, RoHS |
| Warranty | 2-Year Limited (Extended options available) |
