Description

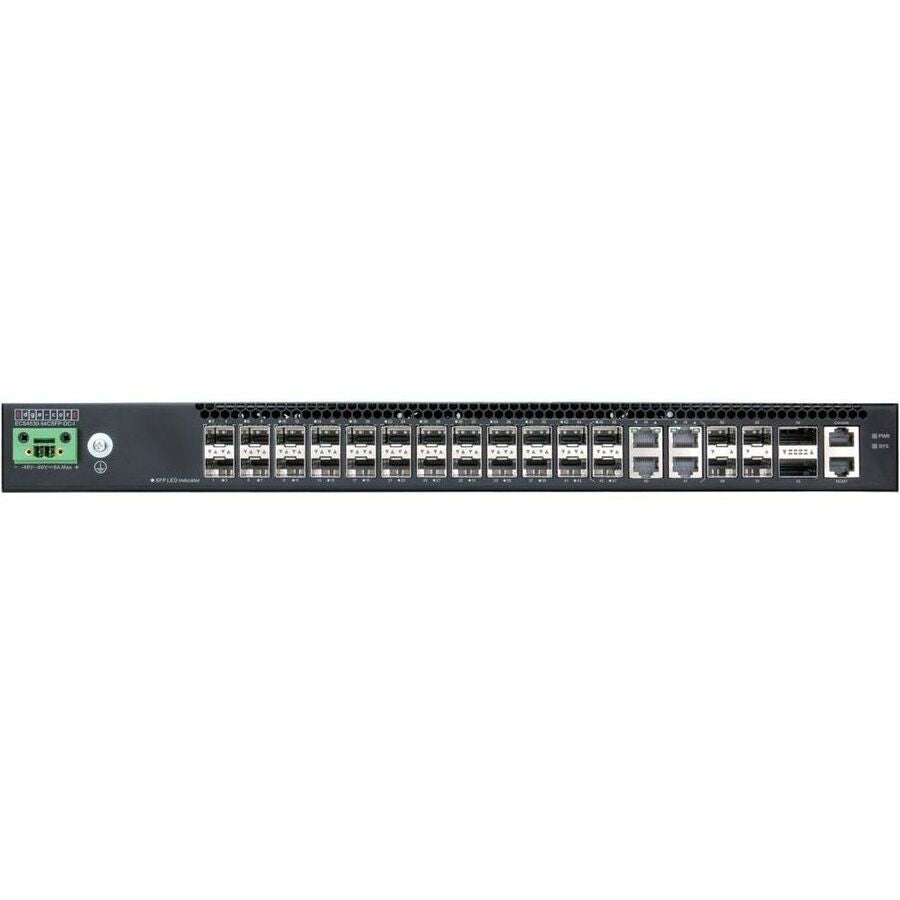

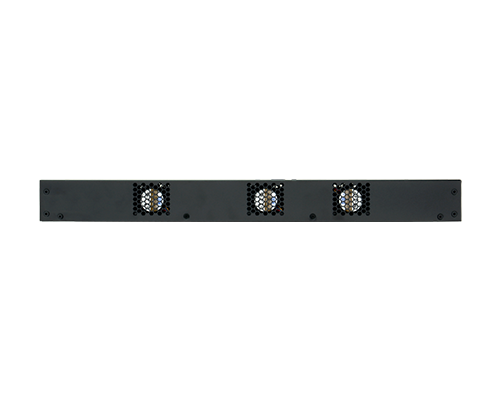

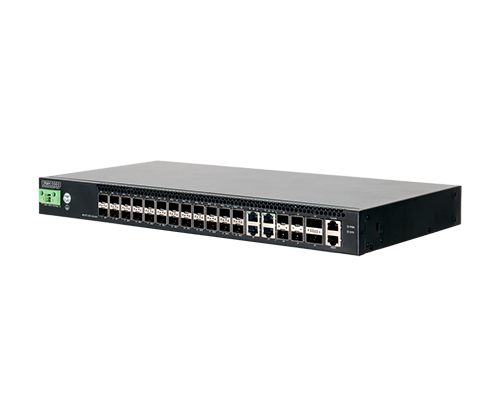

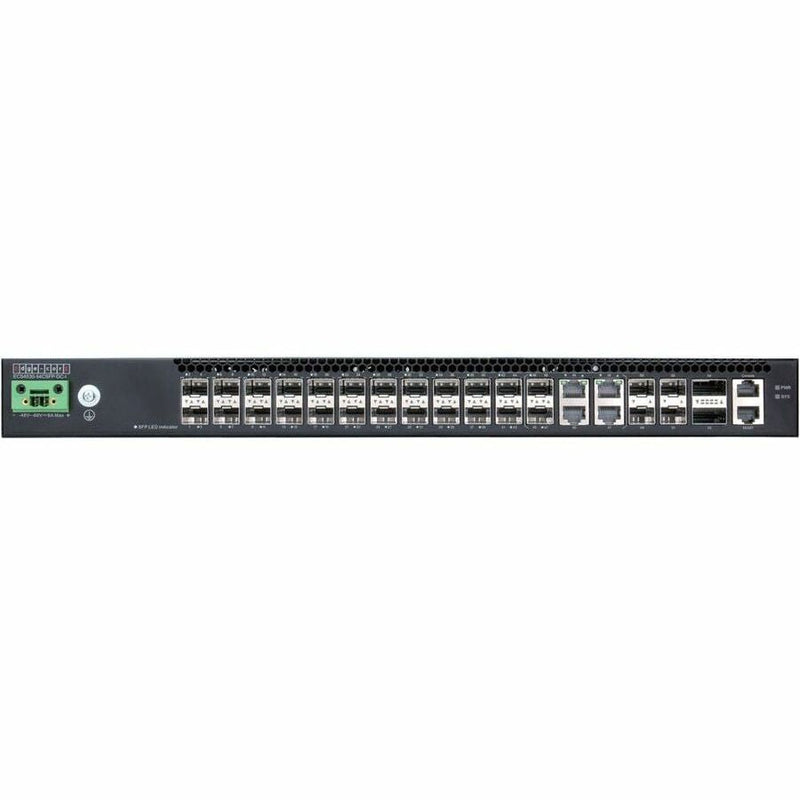

The Edgecore ECS4530-54CSFP-DC-I is a high-density Layer 2+/Layer 3 Lite managed Gigabit Ethernet switch designed for ISPs and enterprise networks seeking flexible, high-performance fiber connectivity. Equipped with 24 CSFP ports, this model doubles fiber port capacity—supporting up to 48 bidirectional connections—making it ideal for FTTH triple-play services and fiber aggregation deployments.
The switch includes four 10G SFP+ uplinks and two 20G QSFP+ uplinks, enabling fast, scalable uplink aggregation. It delivers 256 Gbps switching capacity and 190.48 Mpps forwarding rate for wire-speed performance across all ports. Advanced Layer 2/3 Lite features such as STP/RSTP/MSTP, LACP, G.8032 Ethernet Ring Protection, and IPv6 management ensure reliable uptime and future-ready operation.
With comprehensive QoS, enhanced security, and robust multicast control, the ECS4530-54CSFP-DC-I guarantees efficient service delivery for bandwidth-intensive voice, video, and data traffic—all while maintaining low latency and high availability. The DC power input (-48~-60V) model ensures energy efficiency and reliable operation in telecom or outdoor cabinet environments.
| Category | Specification |
|---|---|
| Model | Edgecore ECS4530-54CSFP-DC-I |
| Type | L2+/L3 Lite Managed Gigabit Ethernet Fiber Switch |
| Ports | 24x CSFP ports (up to 48 connections with BIDI transceivers) |
| Combo Ports | 4x RJ-45 / 2x CSFP combo ports |
| Uplink Ports | 4x 10G SFP+, 2x 20G QSFP+ uplinks |
| Management Ports | 1x RJ-45 Console, 1x GE OOB Management |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 190.48 Mpps |
| Memory | 2 GB Flash, 2 GB DRAM |
| MAC Address Table | 16K entries |
| Jumbo Frames | 10 KB |
| Protocols Supported | STP, RSTP, MSTP, LACP, G.8032 ERPS, VLAN, Q-in-Q, LLDP, IGMP Snooping, MVR |
| Routing | IPv4/IPv6 Static Routing |
| Security Features | 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, ACLs, RADIUS/TACACS+, SSH/SSL |
| QoS Features | 8 queues per port, 802.1p/DSCP, WRR, Strict Priority, Rate Limiting |
| Management | Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3, RMON, sFlow, Auto-Provision |
| Power Supply | -48V to -60V DC input |
| Power Consumption | 75.4 W (max) |
| Dimensions (W x D x H) | 44 x 22 x 4.4 cm |
| Weight | 3 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10%–90% (non-condensing) |
| Certifications | FCC Class A, CE, CB, UL, RoHS, WEEE |
| Optional Accessories | Compatible with Edgecore CSFP/SFP/SFP+/QSFP+ transceivers and DAC/AOC cables |
