Description

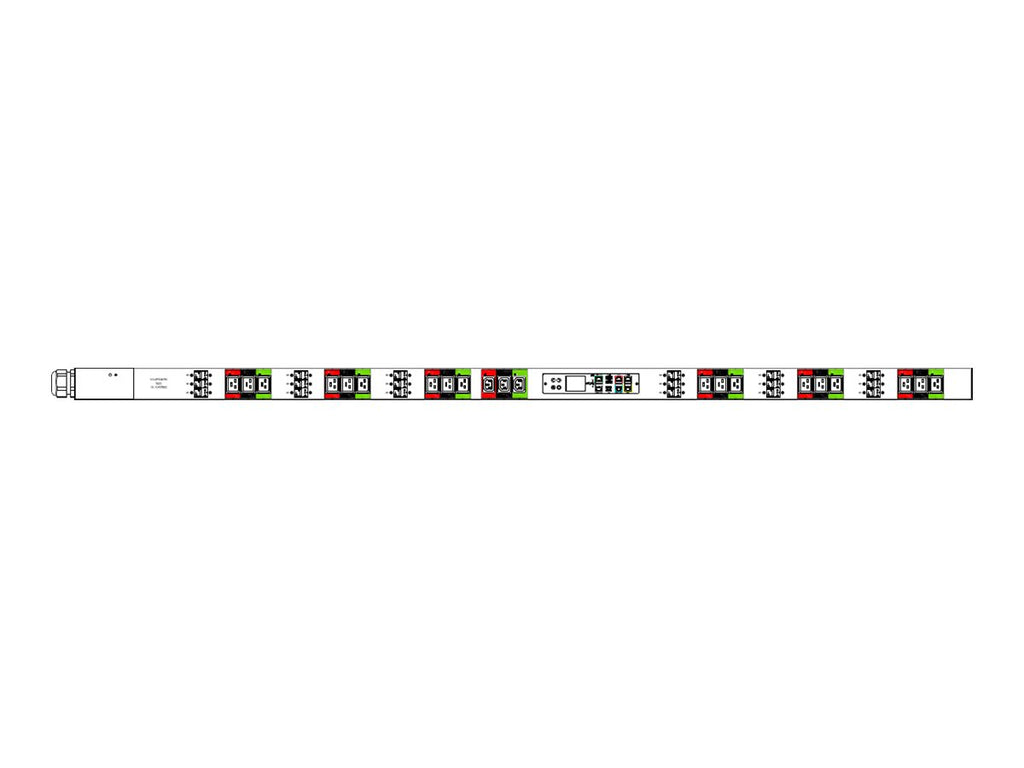

The Raritan PX3-5215I2V-P1V4 is a high-capacity, intelligent 3-phase rack PDU designed for demanding data center environments that require precise power visibility, outlet-level control, and robust circuit protection. Supporting advanced energy metering at the line, breaker, and individual outlet levels, this PDU delivers exceptional accuracy for capacity planning, efficiency monitoring, and compliance reporting.
With remote outlet switching, environmental sensor integration, and dual Ethernet ports for network redundancy, the PX3-5215I2V-P1V4 enables complete remote power management. Its color LCD provides at-the-rack insights, while secure management protocols—including HTTPS, SSH, SNMPv3, and more—ensure dependable remote access. Built with a durable 78-inch vertical chassis, 21 total outlets, and high-power IEC 60309 60A input, this PDU is ideal for high-density compute deployments, enterprise data centers, and mission-critical IT infrastructure.
| Category | Details |
|---|---|
| Input | IEC 60309 3P+N+E 6h 60A plug; 380–415V AC 3-phase; 60A max; 50/60Hz; 31.6–34.5kVA capacity; 3m SOOW 5C#6 cord, bottom entry |
| Output | (3) IEC C13 (12A) + (18) IEC C19 (16A); 230V nominal (220–240V rated); SecureLock and cord retention supported; (18) LEJBX6-20 breakers (10kAIC) |
| Metering & Control | Voltage, current, kW, kVA, kWh, power factor; ±1% accuracy; metering per inlet, breaker, and outlet; remote outlet switching; color auto-flip LCD display |
| Networking & Management | Dual Gigabit Ethernet (primary + redundant); optional Wi-Fi; HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, SMTP, Modbus/TCP, JSON-RPC; USB/Ethernet cascading up to 32 PDUs |
| Environmental Sensor Support | Temperature, humidity, airflow, differential pressure, water leak, contact closure |
| Physical | 2.8" × 3.1" × 78.0" (70 × 80 × 1981 mm); 15.24 kg unit weight; tool-less button mount; black powder coat |
| Environmental | Operating temp up to 60°C; 85% RH; 0–6000 ft elevation |
| Compliance & Warranty | UL Listed, FCC Class A, ICES-003, RoHS; standard 2-year warranty |
| Processor | ARM Cortex A5 536MHz with 16MB SPI Flash and 64MB DDR2 RAM |
