Description

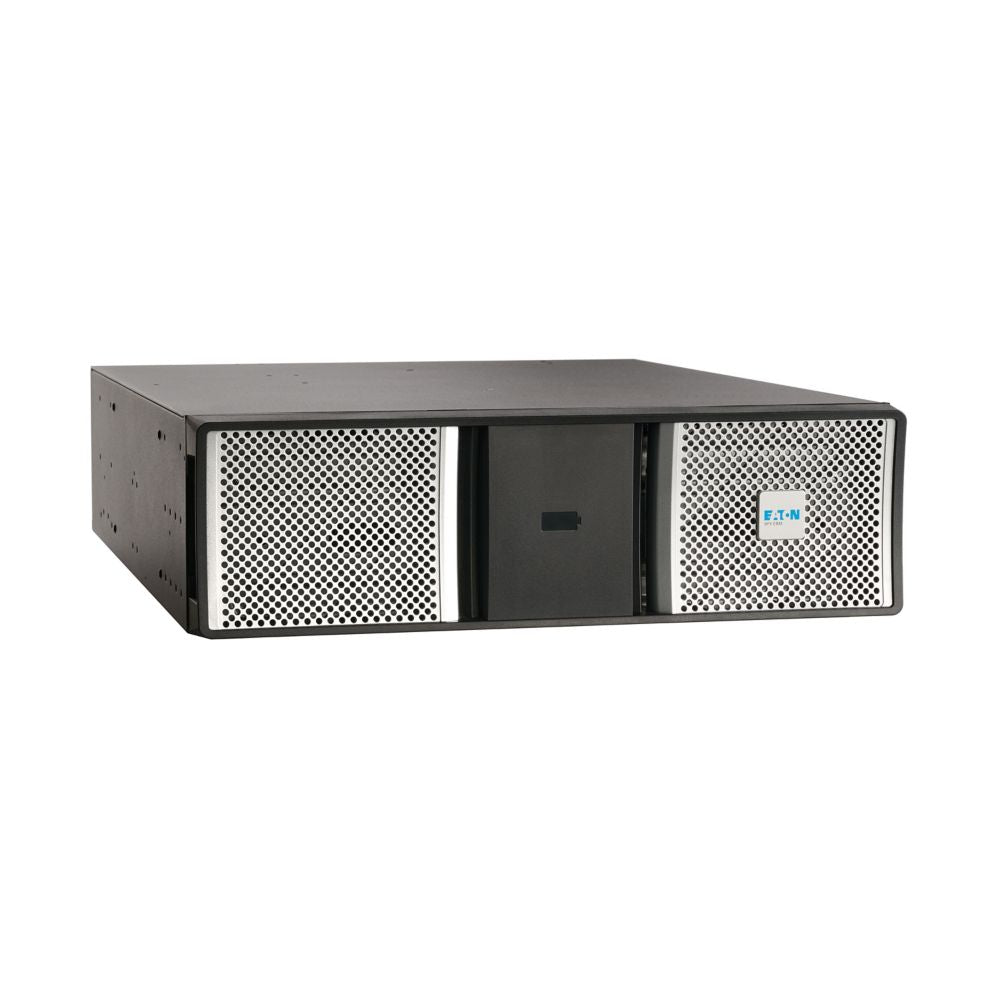

The Eaton 9PXEBM240RTG2 Extended Battery Module (EBM) is designed to extend the backup runtime of Eaton’s 9PX Gen 2 UPS systems (8–11 kVA VRLA models). Engineered for high reliability and flexibility, this 3U rack/tower convertible unit features hot-swappable sealed lead-acid batteries and supports easy scalability for critical power applications. The module integrates seamlessly with compatible UPS units, providing continuous power during extended outages. With seismic and ENERGY STAR certifications, it meets the highest standards of safety and efficiency for IT, industrial, and commercial environments.
| Category | Specification |
|---|---|
| Product Name | Eaton 9PX Extended Battery Module (EBM) |
| Catalog Number | 9PXEBM240RTG2 |
| Form Factor | Rack/Tower convertible |
| Rack Size | 3U |
| Voltage | 240 V |
| Battery Type | Sealed, lead-acid (VRLA) |
| Battery Replacement | Hot-swappable internal batteries; Replacement battery part # EBP-2003 (2 per EBM) |
| Input Cord Length | 1 ft |
| Temperature Range | 0 °– 40 °C (32 °– 104 °F) |
| Relative Humidity | 0–95 % non-condensing |
| Product Dimensions (L × W × H) | 26.38 × 17.32 × 5.12 in |
| Product Weight | 136.69 lb |
| Certifications | CE Marked; FCC Part 15 Class A; CISPR22 Class A; NOM; cULus Listed; IEC 62040-2 Cat C2; ENERGY STAR Certified |
| Seismic Rating | ICC-ES AC156 OSHPD Certified |
| Compatibility | Eaton 9PX G2 8–11 kVA VRLA UPS models (9PX8KG2, 9PX8KMG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KMG2, 9PX11KTF11G2, 9PX11KTF11MG2, 9PX11KTF5G2) |
| Optional Adapter Cable | Required for select 9PX G1 8–11 kVA VRLA UPS systems (CBLADAPT240RT) |
| Included Accessories | 4-post rail kit, joining brackets for tower setup, EBM connector cable, quick start guide |
| Warranty | 3-year limited (Parts, electronics, and batteries coverage) |
| Manufacturer | Eaton Corporation plc |
| UPC | 786689875961 |
