Description

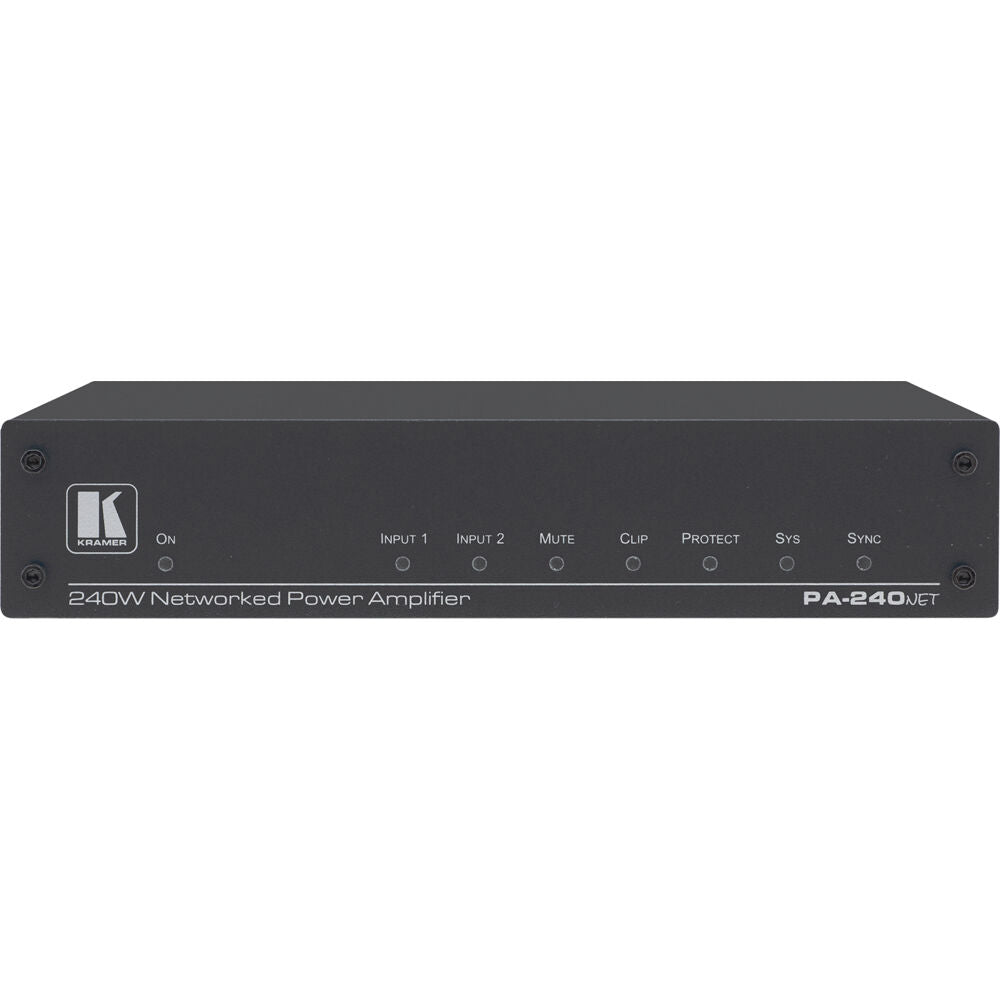

The Kramer PA-240Net is a high-performance 240W networked power amplifier designed for modern AV environments that demand flexibility, efficiency, and rock-solid audio quality. Supporting both Hi-Z (70V/100V) and Lo-Z (4Ω/8Ω) speaker configurations, this amplifier adapts seamlessly to distributed audio systems, performance venues, classrooms, conference rooms, and large-scale installations.
Built-in DSP provides per-output mixing, 3-band EQ, selectable high-pass filtering, and powerful signal control, ensuring optimized audio performance tailored to any space. With Dante™ networking and AES67 support, the PA-240Net integrates easily into IP-based audio systems, delivering clean, low-latency digital audio over standard Ethernet.
Engineered for durability, the unit features advanced protection circuitry, efficient Class-D amplification, and auto-standby settings to reduce power consumption. Both local RS-232 control and remote Ethernet management offer flexible setup and monitoring options. Compact ½-rack width makes it easy to install in a 1U space using a compatible rack adapter.
| Category | Specification |
|---|---|
| Inputs | 2-channel Dante (RJ-45); 1 balanced stereo audio +4dBu/10kΩ (5-pin terminal block) |
| Outputs | 1 balanced stereo line-level (5-pin terminal block); 1 speaker output (4-pin terminal block) |

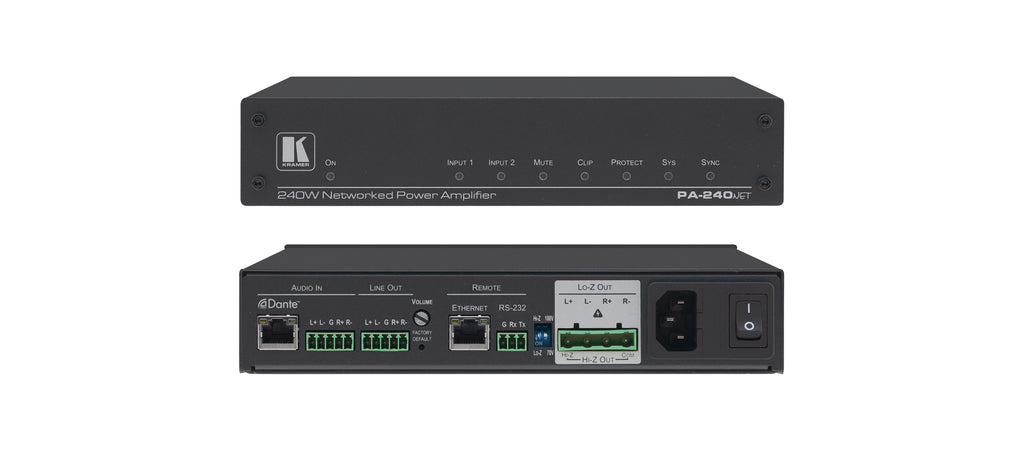

| Ports | 1 Ethernet (control via IP, RJ-45); 1 RS-232 (3-pin terminal block) |
| Amplifier Power | 2 × 120W @ 4Ω/8Ω; 1 × 240W @ 70V/100V |
| Amplifier Class | Class-D |
| Input Sensitivity | Full power @ 0.3V (–10 dBV) |
| Voltage Gain | 26dB SE / 32dB BTL |
| Dynamic Range | 119dB |
| Frequency Response | 20Hz–20kHz ±1dB |
| S/N Ratio | 80dB (20Hz–20kHz) |
| THD+N | 0.003% (1kHz @ 1W) |
| 2nd Harmonic Distortion | 0.08% @ 75W RMS @ 4Ω (6.67kHz) |
| Controls | Output volume attenuator; IP & RS-232 control |
| Power Source | 85V–265V AC universal mains (full power at 120V–230V) |
| Power Consumption | 265VA |
| System Efficiency | 90% |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10%–90% non-condensing |
| Compliance | CE, FCC; RoHS, WEEE |
| Enclosure | ½-rack 19” aluminum chassis; fan-cooled |
| Dimensions (W × D × H) | 21.46cm × 16.30cm × 4.36cm (8.45" × 6.42" × 1.72") |
| Weight | 1.1kg (2.3 lbs) |
| Shipping Dimensions | 40.50cm × 29.70cm × 9.00cm (15.94" × 11.69" × 3.54") |
| Shipping Weight | 1.7kg (3.6 lbs) |
