Description

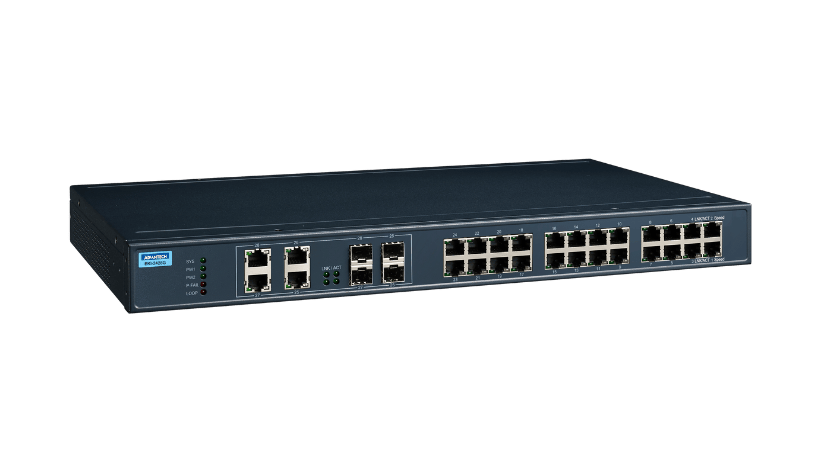

The Advantech EKI-2428G-4CI is an industrial-grade unmanaged Gigabit Ethernet switch designed for high-density, rack-mounted network deployments in harsh environments. It provides 24 Gigabit Ethernet ports along with 4 Gigabit copper/SFP combo ports, enabling flexible fiber or copper uplink expansion for edge-to-core industrial networks.
Built with a rugged IP30 metal enclosure and supporting a wide operating temperature range from -40°C to 70°C, the EKI-2428G-4CI ensures reliable operation in demanding industrial applications. Dual power input support, fault relay outputs, and industrial certifications make it ideal for factory automation, transportation systems, and critical infrastructure networks requiring stable, high-performance connectivity.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | EKI-2428G-4CI |
| SKU | EKI-2428G-4CI-BE |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Total Ports | 28 Gigabit Ethernet Ports |
| Ethernet Ports | 24 × 10/100/1000Base-T (RJ45) |
| Combo Ports | 4 × Gigabit RJ45 / SFP (mini-GBIC) |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ab |
| MAC Address Table | 8K |
| Switching Speed | 10/100/1000 Mbps (Auto-Negotiation) |
| Transmission Distance | Up to 100 m (Copper); up to 110 km (SFP, module-dependent) |
| Power Input | 12–48 VDC |
| Power Consumption | 20 W @ 24 VDC |
| Fault Alarm | 2 × Relay Outputs |
| Enclosure | IP30 Metal Housing |
| Mounting Type | 1U 19-inch Rack Mount |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 10–95% (Non-Condensing) |
| Dimensions (W × H × D) | 438 × 43.6 × 259.2 mm |
| Certifications | UL 61010, CE, FCC Class A |
| Industrial Protection | Reverse Polarity & Overload Protection |
| MTBF | 787,940 Hours |
| RoHS Compliance | Yes |
