Description

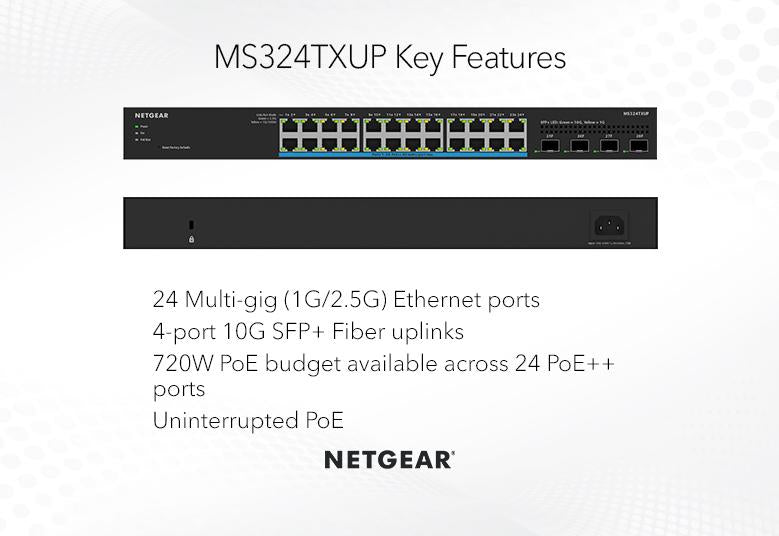

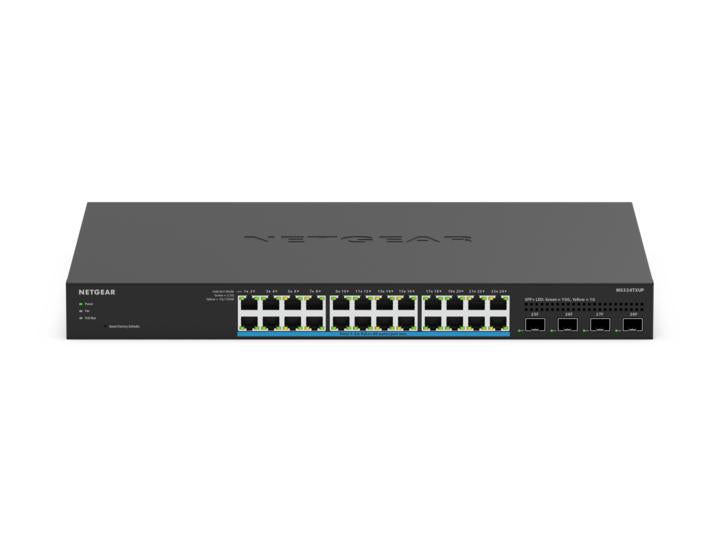

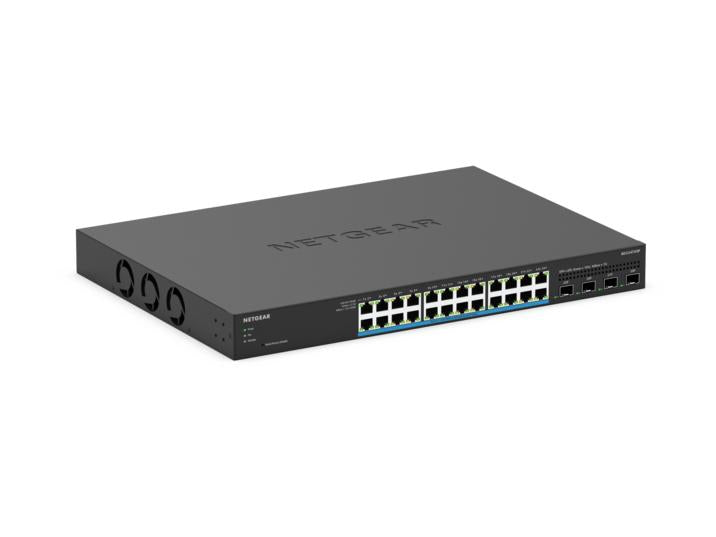

The NETGEAR MS324TXUP-100NAS is a high-performance multi-gigabit smart switch designed to power modern enterprise networks that demand higher bandwidth, advanced PoE capabilities, and simplified cloud management. Featuring 24 Multi-Gigabit 1G/2.5G Ethernet ports with Ultra60 PoE++ support and a robust 720W power budget, this switch is ideal for powering high-performance devices such as WiFi 6/6E access points, IP cameras, VoIP phones, and IoT deployments.
With four dedicated 10G SFP+ uplinks, the MS324TXUP ensures seamless aggregation to core networks, eliminating bottlenecks and enabling ultra-fast data transfer. Built with Layer 2+ and Lite Layer 3 features, it delivers advanced VLAN segmentation, QoS prioritization, and strong security controls to maintain optimal network performance and reliability.
Designed for flexibility, the switch supports both local and cloud-based management via NETGEAR Insight, allowing IT teams to configure, monitor, and troubleshoot networks remotely from a centralized interface. Quiet operation, energy efficiency, and enterprise-grade reliability make this switch a powerful and scalable solution for growing business environments.
| Feature | Specification |
|---|---|
| Total Ports | 24 x 1G/2.5G Multi-Gigabit Ethernet |
| Uplink Ports | 4 x 10G SFP+ |
| PoE Capability | 24 x Ultra60 PoE++ (up to 60W per port) |
| Total PoE Budget | 720W |
| Switching Capacity | 200 Gbps non-blocking |
| Forwarding Rate | 148.8 Mpps |
| MAC Address Table | 32K entries |
| VLAN Support | Up to 256 VLANs |
| Processor | 1GHz dual-core CPU |
| Memory | 1GB RAM, 64MB Flash |
| Packet Buffer | 2MB |
| Management Options | Web GUI, SNMP v1/v2c/v3, RMON, Cloud via NETGEAR Insight |
| Cloud Management | Remote configuration, monitoring, and firmware updates |
| QoS Features | Port-based, 802.1p, DSCP prioritization |
| Security Features | ACLs (L2/L3/L4), 802.1X authentication, DoS protection |
| Multicast Support | IGMP Snooping and Querier |
| Link Aggregation | LACP with up to 8 groups |
| PoE Controls | Scheduling, power prioritization, remote management |
| Latency | Ultra-low latency across 1G, 2.5G, and 10G connections |
| Cooling | 3 internal fans with adaptive speed control |
| Noise Level | Low acoustic operation suitable for office environments |
| Mounting Options | Rack mount and desktop deployment |
| Power Supply | Internal power supply |
| Dimensions | 440 x 310 x 43 mm |
| Weight | 4.44 kg |
| Operating Temperature | 0°C to 50°C |
| Energy Efficiency | IEEE 802.3az compliant |
