Description

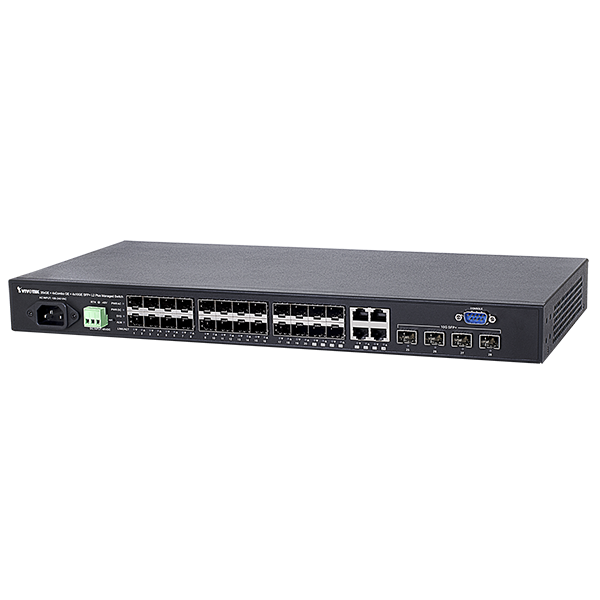

The Vivotek AW-GTS-287A is a high-performance Layer 2+ managed switch engineered to meet the rigorous demands of enterprise surveillance and network environments. Featuring 28 ports — including 20 Gigabit SFP ports, 4 combo Gigabit Ethernet ports, and 4 10G SFP+ uplinks — this switch delivers exceptional flexibility, scalability, and bandwidth for modern IP camera systems and high-density networks.
Purpose-built for Vivotek surveillance ecosystems, it supports automatic discovery and management of up to 1,024 Vivotek devices, advanced PoE reboot, VLAN grouping, device status monitoring, and intuitive visualization through topology, floor, and map views. With a robust 128 Gbps switching capacity, 95.232 Mpps forwarding rate, and advanced Layer 2 features such as STP/RSTP/MSTP, LACP, VLAN, QoS, ACL, and robust security protocols, the AW-GTS-287A ensures reliable, secure, and optimized network performance.
Designed for versatile deployment in harsh environments, it operates within a wide temperature range and includes rack-mount accessories for seamless integration into enterprise network infrastructures.
| Category | Specification |
|---|---|
| Product Type | L2+ Managed Gigabit Switch |
| Port Configuration | 20x GbE SFP, 4x GbE Combo, 4x 10G SFP+ |
| Total Ports | 28 |
| Console Port | 1x RS232 |
| Switching Bandwidth | 128 Gbps |
| Forwarding Rate | 95.232 Mpps |
| Buffer Memory | 32 Mb |
| MAC Address Table | 32K |
| Jumbo Frames | 10056 Bytes |
| Max Power Consumption | 30 W |
| Surveillance Features | Auto-discovery (up to 1024 devices), PoE Reboot, VLAN Grouping, Device Reboot/Restore, Device Status Monitoring, E-Map/Topology/Floor/Google Map View |
| Management Features | SNMP v1/v2c/v3, RMON, DHCP Server, Port Mirroring, UPnP, LLDP/LLDP-MED, sFlow, Firmware Upgrade, NTP |
| Layer 2 Features | STP/RSTP/MSTP, LACP, VLAN (802.1Q, Port-based, Private VLAN, GARP, Q-in-Q, Protocol-based, MAC-based, Voice VLAN, IP Subnet VLAN, MVR), IGMP/MLD Snooping, DHCP Relay |
| QoS Features | 8 Hardware Queues, Port-based, 802.1p, Rate Limiting, DSCP & CoS |
| Security Features | IEEE802.1x, RADIUS/TACACS+, SSL, Port Security, IP Source Guard, Storm Control, DHCP Snooping, ACL (up to 384 entries) |
| Environmental | Operating: -20°C ~ 60°C (-4°F ~ 140°F); Storage: -40°C ~ 85°C (-40°F ~ 185°F); Humidity: 10 ~ 90% RH |
| Mechanical | Dimensions: 44 (H) x 442 (W) x 211 (D) mm; Weight: 3.1 kg |
| Power Input | 100~240V AC / 24~72V DC, 50 ~ 60 Hz |
| Certifications | CE, FCC, LVD, VCCI |
| Included Accessories | Power Cord, Quick Installation Guide (QIG), Rack Mount Kit |
