Description
Extend the runtime of your Eaton GC3000L Portable Power Station with the Eaton BPGC2500L 2500Wh Battery Pack Expansion. Designed for outdoor and indoor applications, this high-capacity lithium iron phosphate (LiFePO₄) battery module provides an additional 2.5 kWh per unit, delivering pure sine wave power to your connected devices. Up to six expansion packs can be daisy-chained, boosting total energy storage up to 17.5 kWh. The BPGC2500L features LED indicators for charge status, voltage, temperature, and alarms, ensuring safe and efficient energy management. Built with robust protection mechanisms, it offers overcurrent, over/under voltage, and short circuit safeguards for reliable performance in demanding conditions.
| Category | Details |
|---|---|
| Model Number | BPGC2500L |
| UPC Code | 037332286130 |
| Product Type | Battery Pack Expansion |
| Compatible Model | Eaton GC3000L Portable Power Station |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Battery Capacity | 2560 Wh / 50 Ah |
| System Voltage | 40–57.6 VDC |
| Expandable Capacity | Up to 17.5 kWh with 6 battery packs |
| Charging Method | Direct plug-in to GC3000L via included cable |
| Total Charging Current | 50 A |
| Output Type | Pure Sine Wave |
| Protection Features | Overcurrent, over/under voltage, short circuit, over/under frequency |
| Typical Battery Lifespan | 4000 cycles |
| Cooling Method | Air |

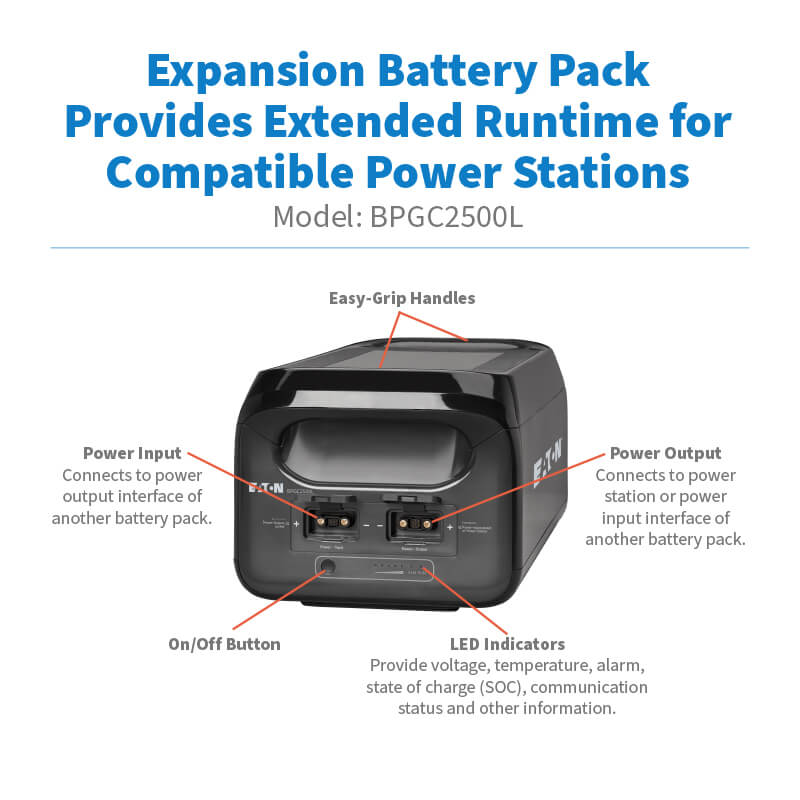

| LED Indicators | SOC, voltage, temperature, alarm, and system status |
| Unit Dimensions (H x W x D) | 14.0 × 10.6 × 8.86 in (35.6 × 27.0 × 22.5 cm) |
| Unit Weight | 55.6 lbs (25.22 kg) |
| Shipping Dimensions (H x W x D) | 22.8 × 13.7 × 13.4 in (57.9 × 34.8 × 34.0 cm) |
| Shipping Weight | 63.27 lbs (28.7 kg) |
| Operating Temperature Range | -4°F to 113°F (-20°C to 45°C) |
| Operating Humidity Range | 10%–85% (non-condensing) |
| Certifications | UL 62368-1, CAN/CSA-C22.2 No. 62368-1 |
| Compliance | FCC Part 15 Class B (USA), RoHS |
| Warranty | 2-Year Limited Warranty |
| Color | Black |
| Country/Region | North America |
