Description

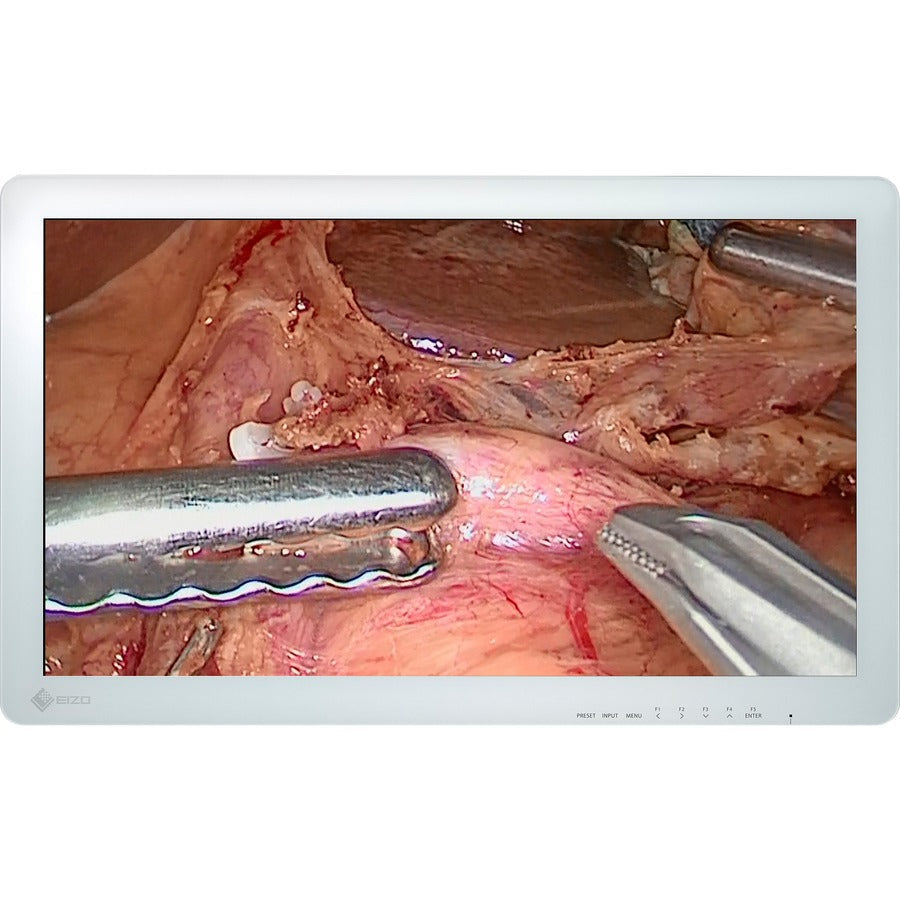

The EIZO CuratOR EX2620 is a 26-inch 2D surgical monitor engineered for exceptional image fidelity, safety, and workflow efficiency in modern operating rooms. Featuring a Full HD resolution (1920 x 1080) IPS panel with 700 cd/m² brightness, 1400:1 contrast ratio, and 10-bit color support, it delivers crisp, accurate visualization of surgical images from endoscopes, operating microscopes, and other medical imaging modalities.
Designed with safety and hygiene as priorities, the EX2620 features a fully flat protective glass front with IP45-rated splash resistance and rounded corners for a safer operating environment. Its fanless cooling system ensures silent operation and eliminates airflow disruption, while the absence of ventilation holes allows for easy cleaning and disinfection.
The EX2620 supports multiple input/output formats including 3G-SDI, DVI-D, Composite, and S-Video, and offers advanced viewing modes such as Picture-in-Picture (PiP) and Picture-out-Picture (PoP), allowing simultaneous display of multiple signals. Independent rotation, mirroring, and gamma settings enable optimized viewing of different imaging modalities side-by-side. With a 178° viewing angle, external RS-232C/GPI control, and ergonomic cable management, this monitor enhances visibility, safety, and surgical efficiency for a wide range of procedures.
| Feature | Specification |
|---|---|
| Panel Type | IPS color LCD |
| Backlight | LED |
| Screen Size | 26.0" (66.1 cm) |
| Native Resolution | 1920 × 1080 (Full HD, 16:9) |
| Viewable Area (H × V) | 576 × 324 mm |
| Pixel Pitch | 0.300 × 0.300 mm |
| Display Colors | 10-bit: 1.07 billion / 8-bit: 16.77 million |
| Viewing Angles (H/V) | 178° / 178° |
| Brightness | 700 cd/m² (typical) |
| Contrast Ratio | 1400:1 (typical) |
| Response Time | 18 ms (on/off) |
| Input Terminals | 1 × BNC (3G-SDI), 1 × BNC (Composite), 1 × S-Video, 2 × DVI-D (HDCP), 1 × D-Sub 15-pin |
| Output Terminals | 1 × BNC (3G-SDI), 1 × BNC (Composite), 1 × S-Video, 1 × DVI-D |
| Digital Scanning Frequency | 15 – 75 kHz (H) / 24 – 60 Hz (V) |
| Analog Scanning Frequency | 15 – 80 kHz (H) / 24 – 85 Hz (V) |
| Sync Formats | Separate, Composite, Sync-on-Green |
| Power Requirements | AC 100 – 240 V, 50 / 60 Hz |
| Max Power Consumption | 90 W |
| Control Interfaces | RS-232C, GPI |
| Weight (without stand) | 8.1 kg |
| Mounting | VESA 100 × 100 mm (M4, depth 5–9 mm) |
| Protection Rating | Front: IP45 / Rear: IP32 |
| Certifications | CE (Medical), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2, IEC60601-1, FCC-A, VCCI-A, RoHS, WEEE, CCC, EAC, FDA Class I |
| Included Accessories | AC power cord, AC adapter, cable cover, utility disk, instructions for use |
| Warranty | 2 years |
