Description

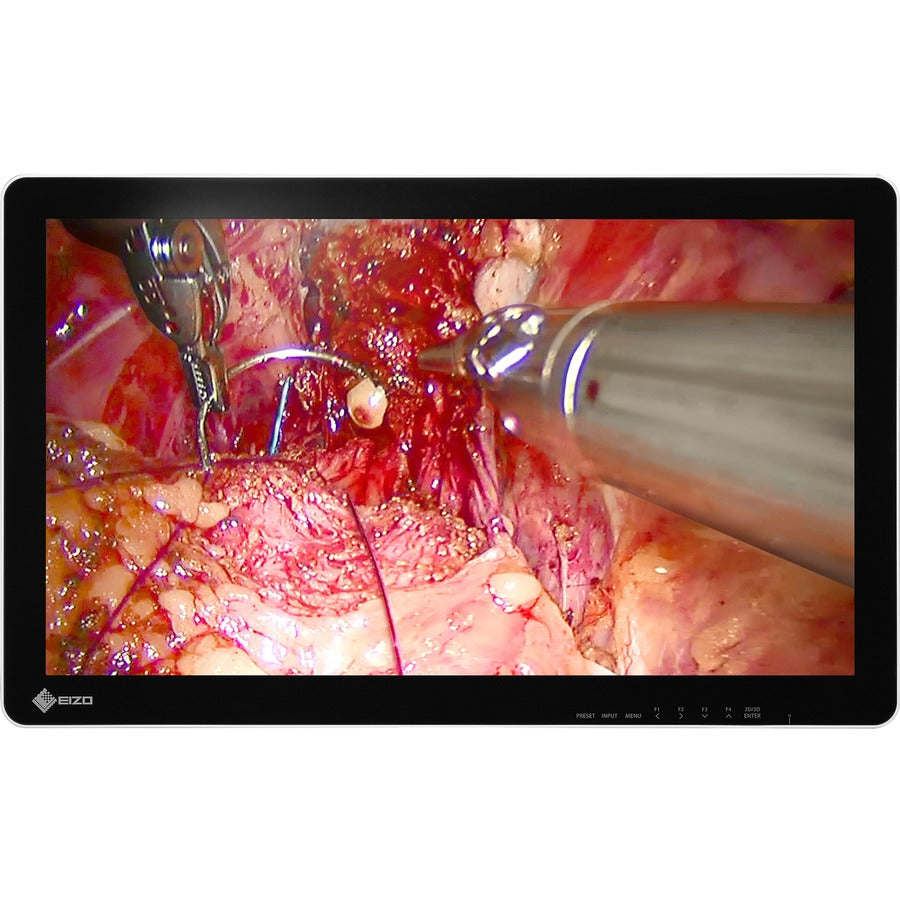

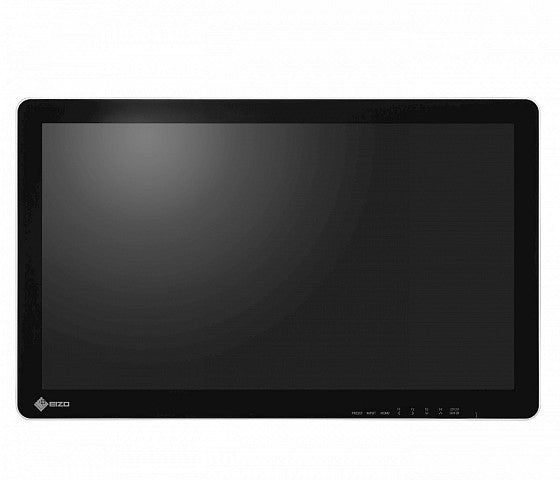

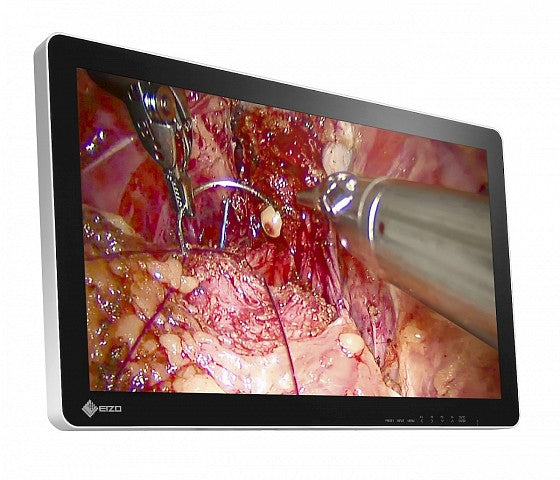

The EIZO CuratOR EX2620-3D is a premium 26-inch 3D surgical monitor engineered to deliver outstanding stereoscopic visualization for endoscopy, microsurgery, and other advanced surgical procedures. Featuring a Full HD (1920 × 1080) resolution IPS panel with an LED backlight, 580 cd/m² brightness, and 1400:1 contrast ratio, this display ensures highly accurate, depth-enhanced imaging essential for precision in the operating room.

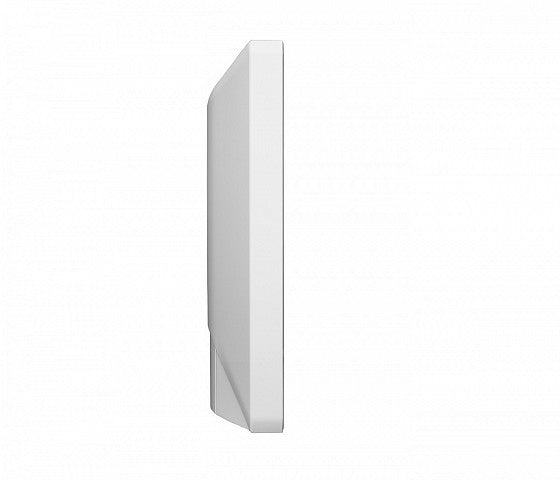

Its fully flat, fanless design with IP45 front and IP32 rear protection ensures maximum safety, hygiene, and easy disinfection in sterile environments. Optical bonding technology minimizes reflections, prevents condensation, and enhances durability with scratch-resistant glass (>9H hardness).
The EX2620-3D supports multiple 3D signal formats (Side by Side, Line by Line, Top/Bottom, SIMUL) and various input/output interfaces, ensuring seamless integration with a wide range of surgical equipment. Lightweight, battery-free, anti-fog polarized 3D glasses are included for clear, comfortable viewing during lengthy operations. Additional features such as 180° image rotation, parallax adjustment, picture-by-picture 2D support, and external control capabilities further optimize workflow and visualization flexibility in the OR.
| Specification | Details |
|---|---|
| Panel Type | Color (IPS) with LED backlight |
| Screen Size | 26.0" (66.1 cm) |
| Native Resolution | 1920 × 1080 (Full HD, 16:9) |
| Viewable Area (H × V) | 576 × 324 mm |
| Pixel Pitch | 0.300 × 0.300 mm |
| Display Colors | 10-bit (SDI): 1.07 billion; 8-bit: 16.77 million |
| Viewing Angles (H/V) | 178° / 178° (2D mode) |
| Brightness | 580 cd/m² |
| Contrast Ratio | 1400:1 |
| Response Time | 18 ms (on/off) |
| Input Terminals | 2 × BNC (3G-SDI), 1 × BNC (Composite), 1 × BNC (RGB C-Sync/Component), 1 × S-Video, 2 × DVI-D (HDCP), 1 × D-Sub 15-pin (mini) |
| Output Terminals | 2 × BNC (3G-SDI), 1 × BNC (Composite), 1 × BNC (RGB C-Sync/Component), 1 × S-Video, 1 × DVI-D |
| Scanning Frequency (Digital) | 15 – 75 kHz (H) / 24 – 60 Hz (V) |
| Scanning Frequency (Analog) | 15 – 80 kHz (H) / 24 – 85 Hz (V) |
| Sync Formats | Separate, Composite, Sync on Green |
| 3D Functions | Side by Side, Line by Line, Top/Bottom, SIMUL; 180° rotation, parallax adjustment |
| 2D Functions | Picture-by-picture, independent screen adjustment, 180° rotation, mirroring |
| Power Requirements | AC 100 – 240 V, 50/60 Hz |
| Power Consumption | Max. 95 W |
| Protection Rating | IP45 (front), IP32 (rear) |
| Certifications | CE (Medical), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, FDA Class I |

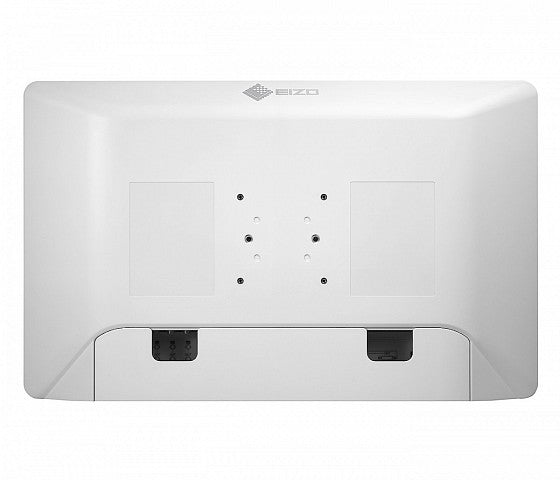

| Mounting | VESA 100 × 100 mm (M4, depth 5–9 mm) |
| Weight | 8.5 kg |
| Included Accessories | AC power cord, AC adapter, 3D polarized glasses ×3, cable cover, utility disk (PDF manual) |
| Warranty | 2 years |
