Description

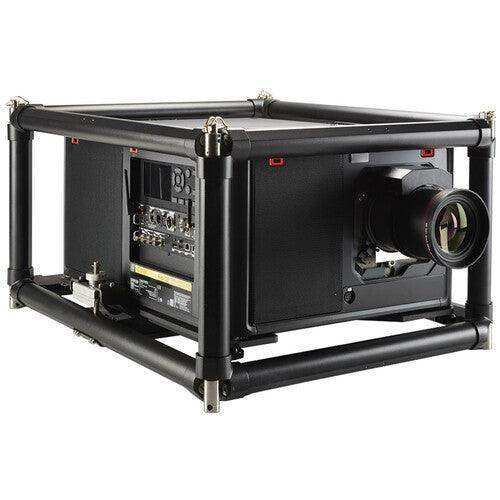

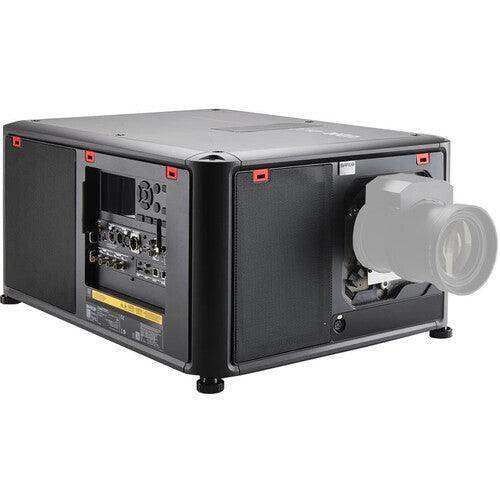

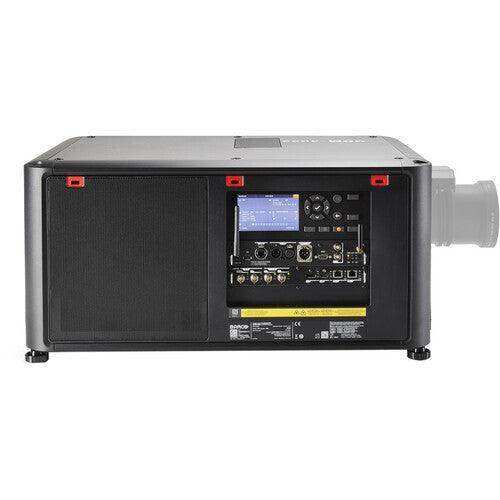

The Barco UDM-4K30 is a high-performance 4K UHD 3-chip DLP laser projector engineered for large venues, live events, and demanding professional installations. Delivering up to 25,000 lumens of brightness, this next-generation projector combines exceptional image quality with a compact and lightweight design, making it one of the most efficient solutions in its class.
Built on Barco’s advanced Pulse electronics platform, the UDM-4K30 features Single Step Processing for ultra-low latency and razor-sharp visuals. Its robust construction, sealed optical engine, and integrated dust protection ensure reliable operation even in challenging environments. With FLEX2 technology, users can fine-tune brightness and resolution to match specific applications, optimizing performance and extending projector lifespan.

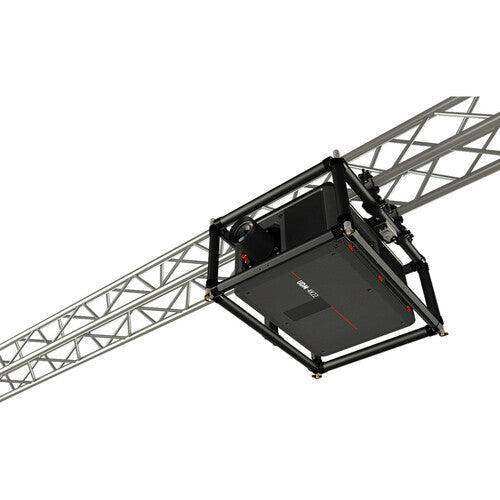

Designed for maximum flexibility, the modular architecture supports a wide range of lenses and accessories, while extensive connectivity options, including GSM and WiFi, enable remote monitoring and fleet management via the Barco Insights Management Suite. Complete with frame and flight case, this configuration is ideal for touring, staging, and high-impact visual experiences.
| Specification | Details |
|---|---|
| Projector Type | 4K UHD 3-Chip DLP Laser Projector |
| Resolution | 3840 x 2400 (4K UHD), 2560 x 1600 (native) |
| Brightness | Up to 25,000 ANSI lumens |
| Contrast Ratio | 2200:1 (full field), up to 20,000:1 with Dyna Black |
| Light Source | Laser phosphor with inorganic phosphor wheel |
| Light Source Lifetime | Up to 20,000 hours |
| Technology | 0.9" DMD x3 |
| Aspect Ratio | 16:10 |
| Brightness Uniformity | 95% |
| Image Processing | Barco Pulse Single Step Processing |
| Lens Compatibility | TLD+ series lenses (0.37:1 to 11.5:1 range) |
| Lens Shift | Vertical: -100% to +130%, Horizontal: ±40% |
| Zoom & Focus | Motorized with memory |
| Inputs | HDMI 2.0, DisplayPort 1.2, HDBaseT, 3G/12G SDI |
| Optional Inputs | Quad DP 1.2, Fiber SFP |
| Connectivity | Ethernet, WiFi, GSM, RS232, IR |
| Remote Management | Barco Insights Management Suite |
| Orientation | 360° installation capability |
| Keystone Correction | Yes |
| 3D Support | Active and passive 3D options |
| Power Requirements | 200–240V, 50–60Hz |
| Power Consumption | Up to 2200W |
| Noise Level | ~49 dB(A) |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x D x H) | 725 x 540 x 339 mm |
| Weight | 48 kg (unit), 61 kg (shipping) |
| Included Accessories | Frame, flight case, power cord, remote control |
| Warranty | 3 Years |
