Description

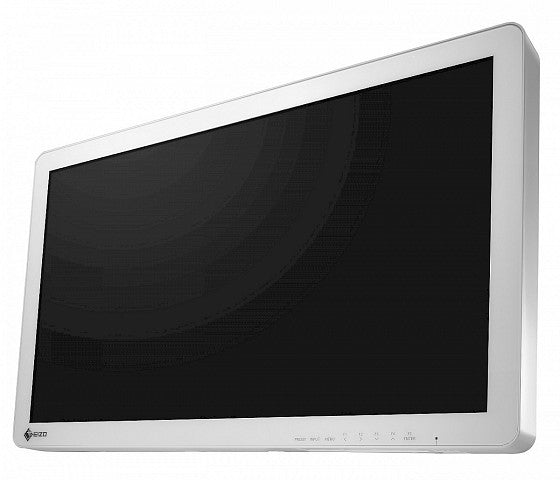

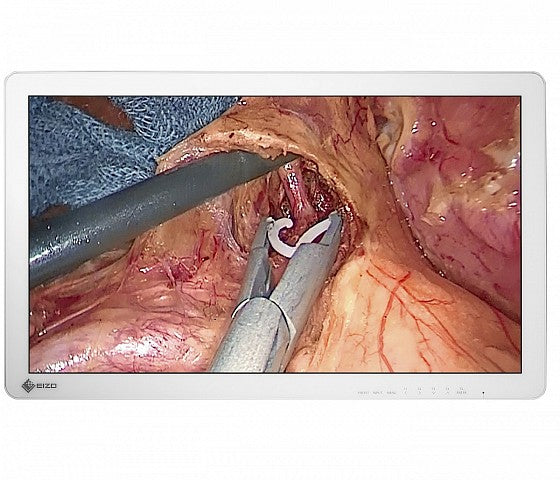

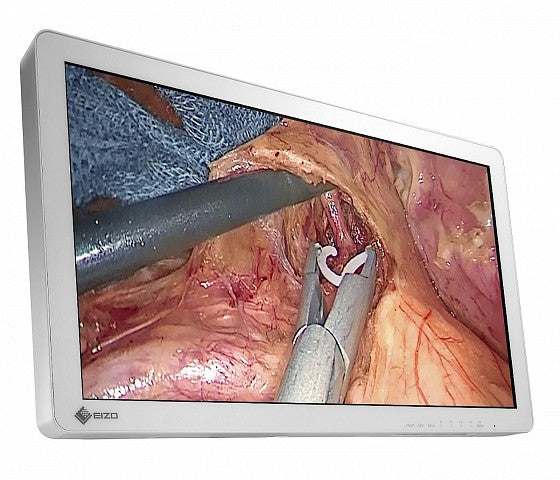

The EIZO CuratOR EX2721 is a high-performance 27-inch 2D surgical monitor engineered to deliver exceptional image clarity and operational reliability in modern operating rooms. With a Full HD resolution (1920 × 1080) and high brightness of 900 cd/m², it ensures precise visualization of surgical images during endoscopic and microsurgical procedures.
Designed with safety and hygiene in mind, the EX2721 features a fully flat protective glass with 9H hardness and IP45-rated front protection, making it resistant to splashes and easy to disinfect. Its fanless design maintains a quiet, sterile environment by minimizing airflow disruption and simplifying cleaning.
The monitor offers advanced image handling capabilities, including 180° rotation, independent mirroring, and simultaneous dual-input viewing with Picture-out-Picture (PoP) and Picture-in-Picture (PiP) functionality—ideal for multi-modality visualization. Adjustable gamma settings and DICOM® preset modes further ensure accurate image reproduction across various modalities such as endoscopy, CT, and MRI.
With comprehensive input/output support including 3G-SDI, DVI-D, and composite video, as well as external control via GPI and RS-232C, the CuratOR EX2721 seamlessly integrates with diverse surgical systems. Certified to global medical standards (IEC60601-1, FDA Class I, CE), it guarantees reliability, safety, and long-term performance in critical clinical environments.
| Specification | Details |
|---|---|
| Panel Type | Color (IPS) |
| Backlight | LED |
| Screen Size | 27.0" (68.6 cm) |
| Native Resolution | 1920 × 1080 (Full HD, 16:9) |
| Viewable Image Area (H × V) | 598 × 336 mm |
| Pixel Pitch | 0.311 × 0.311 mm |
| Display Colors | 10-bit: 1.07 billion (SDI), 8-bit: 16.77 million |
| Viewing Angles (H/V) | 178° / 178° |
| Brightness | 900 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 14 ms (on/off) |
| Video Input Terminals | BNC (3G-SDI), DVI-D ×2 (HDCP 1.4), D-Sub 15-pin, S-Video, BNC (Composite) |
| Video Output Terminals | BNC (3G-SDI), DVI-D, S-Video, BNC (Composite) |
| Digital Scanning Frequency (H/V) | 15 – 75 kHz / 24 – 60 Hz |
| Analog Scanning Frequency (H/V) | 15 – 80 kHz / 24 – 85 Hz |
| Sync Formats | Separate, Composite, Sync on Green |
| Power Requirements | AC 100 – 240 V, 50/60 Hz |
| Max Power Consumption | 79 W |
| Features & Functions | Remote control (RS-232C, GPI), PoP/PiP, 180° rotation, mirroring |
| Net Weight (Without Stand) | 8.5 kg |

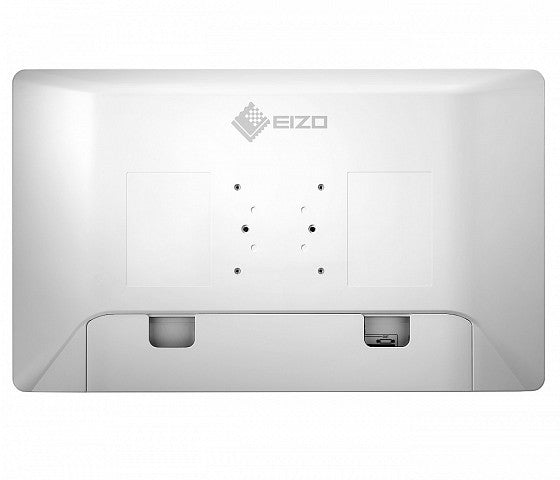

| Mounting (VESA) | 100 × 100 mm (M4, depth 5–9 mm) |
| Degree of Protection | Front: IP45, Rear: IP32 |
| Certifications | CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, FCC-A, VCCI-A, CAN ICES-3(A), RCM, RoHS, WEEE, CCC, EAC, BIS, FDA Class I |
| Supplied Accessories | AC power cord, AC adapter, cable cover, utility disk, manual |
| Warranty | 2 years |
