Description

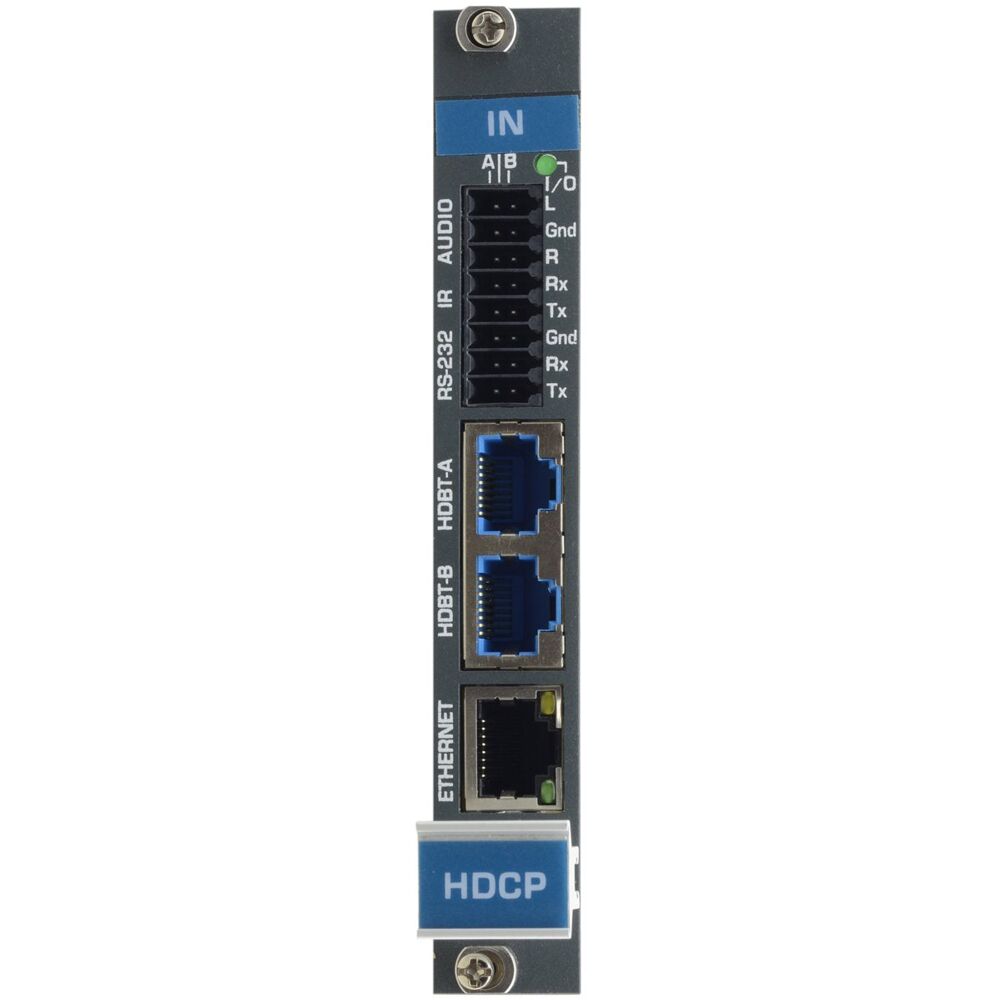

The Kramer DTAXR-IN2-F16/STANDALONE is a high-performance 2-channel HDMI over Extended-Reach HDBaseT input card designed for the VS-1616 Modular Multi-Format Digital Matrix Switchers. Engineered for professional AV environments, it supports 4K60 (4:2:0) video, embedded or de-embedded analog audio, and bidirectional Ethernet, RS-232, and IR extension—making it a versatile solution for long-distance signal transport.
With support for transmission ranges up to 180m (590 ft) in Ultra Mode and robust HDCP-compliant 10.2Gbps bandwidth, this card ensures reliable delivery of uncompressed, high-quality video and control signals over HDBaseT infrastructure. Ideal for conference centers, control rooms, education, broadcasting, and large-venue AV systems requiring flexible long-reach connectivity.
| Category | Details |
|---|---|
| Inputs | 2 HDBaseT TP (RJ-45), 2 unbalanced analog audio (16-pin terminal block) |
| Control Ports | 2 RS-232 + 2 IR (10-pin terminal block); 1 Ethernet (RJ-45) |
| Max Data Rate | 10.2Gbps total (3.4Gbps per graphics channel) |
| Max Resolution | 4K @ 60Hz (4:2:0) |
| Audio Support | Selectable embedded or de-embedded analog audio |
| HDBaseT Range | 100m (4K normal mode); 130m / 430ft (2K normal mode); 180m / 590ft (1080p Ultra Mode) |
| Serial Extension | 300 to 115200 baud |
| Ethernet Extension | Up to 100Mbps |
| IR Extension | Bidirectional |
| 3D Pass-Through | Supported |
| Compliance | HDCP 1.4, HDMI 1.3a, HDBaseT, CE, RoHS, WEEE |
| Power Consumption | 17W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to 70°C (–40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Dimensions (W × D × H) | 19.00 × 13.00 × 2.00 cm (7.48" × 5.12" × 0.79") |
| Weight | 0.3 kg (0.6 lb) |
| Shipping Dimensions | 24.20 × 16.80 × 6.00 cm |
| Shipping Weight | 0.4 kg (0.8 lb) |
