Description

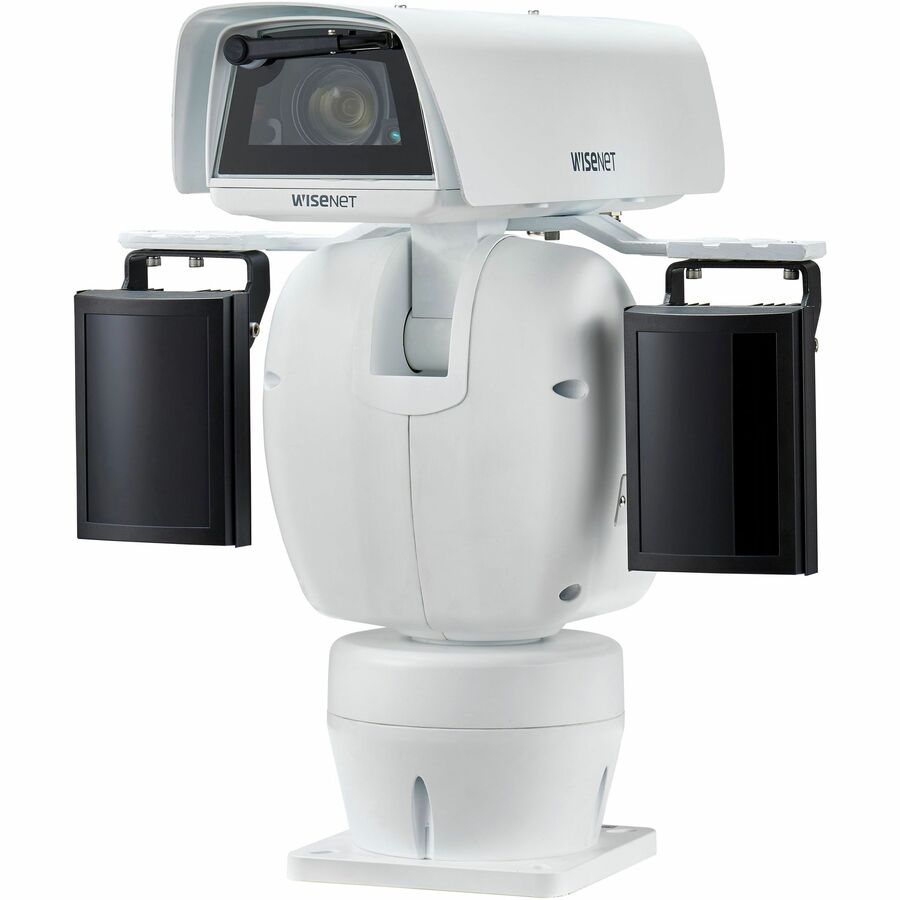

The Hanwha Vision TNU-6321 is a rugged 2MP outdoor positioning network camera engineered for demanding perimeter and wide-area surveillance. With a full ground-to-sky tilt range of -90° to +40° and endless 360° pan rotation, it delivers complete situational awareness in large open environments such as airports, seaports, industrial sites, and critical infrastructure.
Designed for harsh weather, the TNU-6321 includes an integrated wiper and defroster to maintain image clarity through rain, snow, and dust. Its IP66-rated aluminum housing and wide operating temperature range ensure reliable performance in extreme outdoor conditions.
For low-light and long-range scenes, the camera supports optional IR illuminator integration (SPI-50, sold separately), enabling visibility up to 200 meters in total darkness. With up to 255 preset positions, advanced analytics, 32x optical zoom, and a true 2MP 60fps stream, the TNU-6321 is a powerful choice for continuous 24/7 surveillance.
| Category | Specification |
|---|---|
| SKU | TNU-6321/KUS |
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 1920 × 1080 (2MP) |
| Min. Illumination | Color: 0.05 Lux (1/30s, 30IRE) • B/W: 0.005 Lux |
| Lens | 4.44–142.6mm (32x optical zoom), DC auto-iris |
| Horizontal FoV | 61.8° ~ 2.19° |
| Vertical FoV | 36.2° ~ 1.24° |
| Max Frame Rate | 60fps @ 2MP (H.265/H.264), 30fps (MJPEG) |
| Video Codecs | H.265, H.264 (Baseline/Main/High), MJPEG |
| Day/Night | ICR (Auto) |
| WDR | 120dB |
| Image Enhancements | SSNRV noise reduction, Defog, DIS |
| Audio I/O | 1× audio in (mic/line selectable), 1× audio out |
| Alarm I/O | 1× input, 1× output |
| Analytics | Motion, Tampering, Face detection, Fog detection, Audio detection, Virtual line, Intrusion, Enter/Exit, Appear/Disappear |
| Pan Range | 360° endless |
| Tilt Range | -90° to +40° |
| Pan/Tilt Speed | Pan: up to 120°/s • Tilt: up to 40°/s |
| Preset Positions | 255 presets, Swing, Group, Tour, Auto Run, Schedule |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SMTP, IGMP, SNMP v1/v2c/v3, QoS, UPnP, Bonjour |
| API/Integration | ONVIF S/G/T, SUNAPI, Open Platform |
| Edge Storage | microSD/SDHC/SDXC up to 256GB |
| Operating Temperature | -40°F to +131°F (-40°C to +55°C) |
| Ingress Protection | IP66 |
| Material | Aluminum housing |
| Power Input | 24VAC |
| Power Consumption | Max 100W (heater on), 25W typical |
| Dimensions | 219(W) × 528.2(H) × 460(D) mm |
| Weight | 14kg (30.86 lb) |
| Color | White (RAL 9003) |
