Description

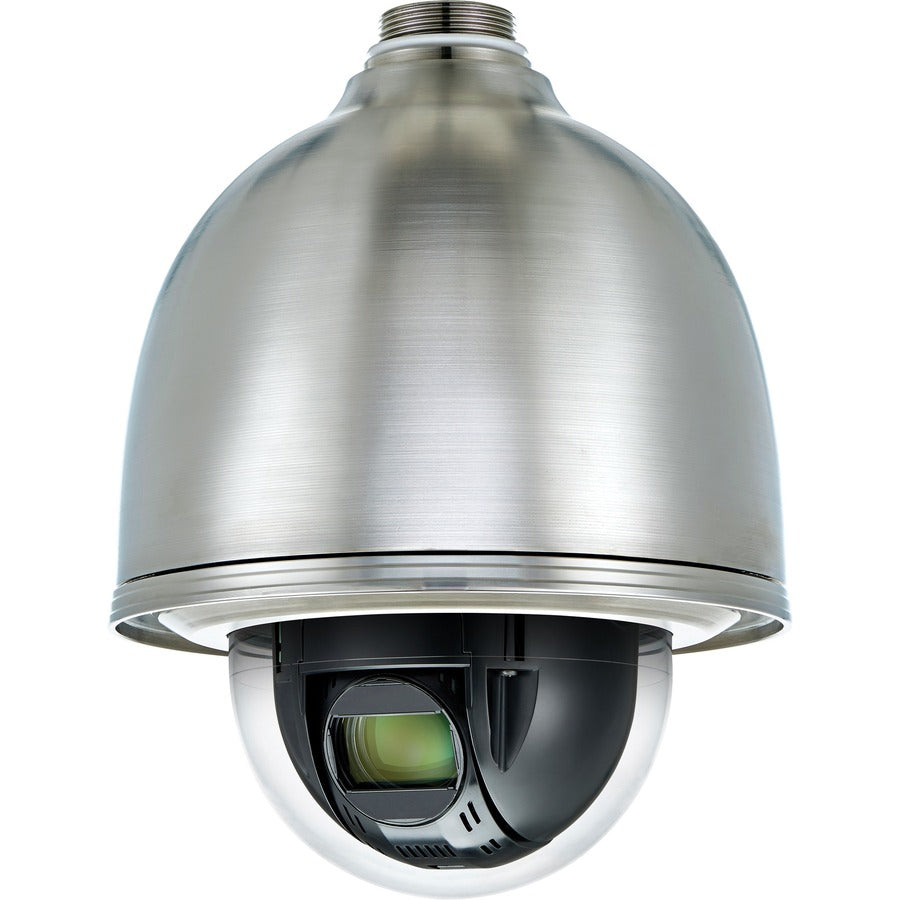

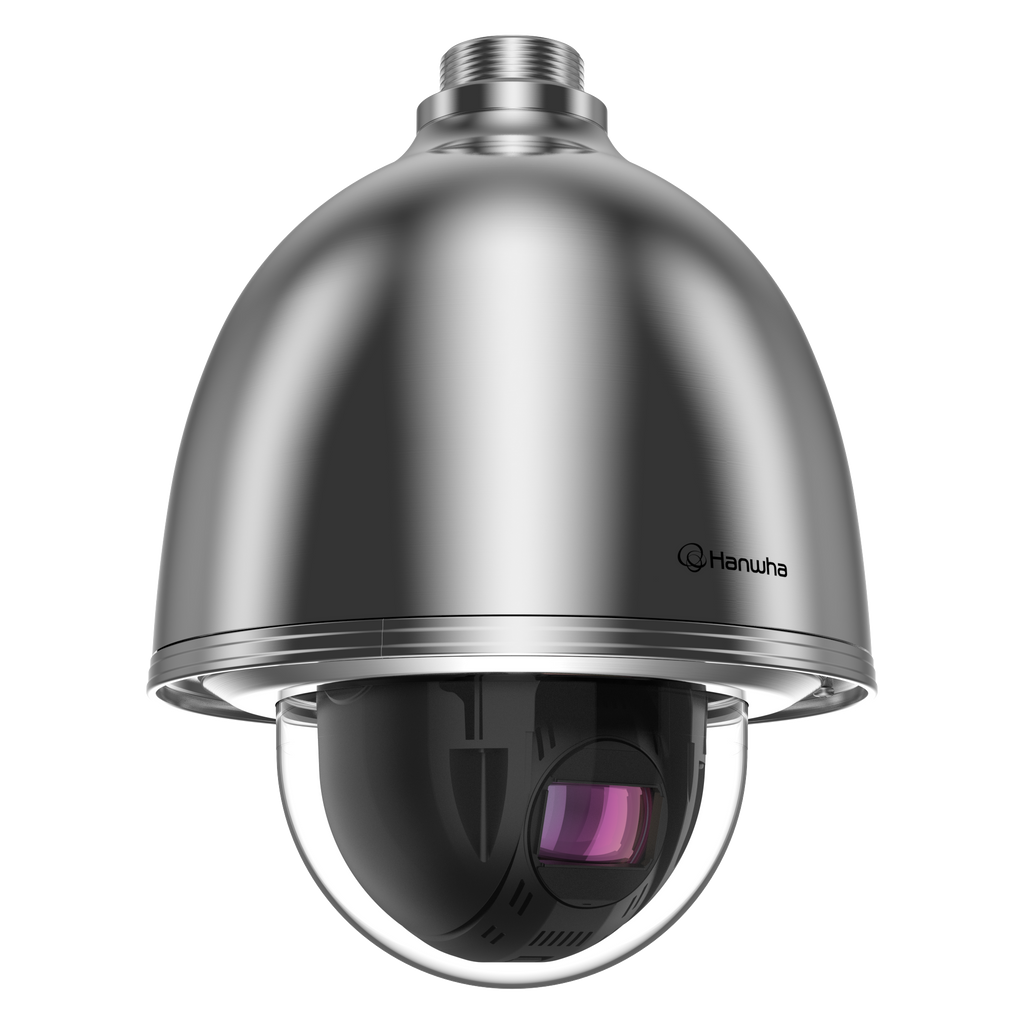

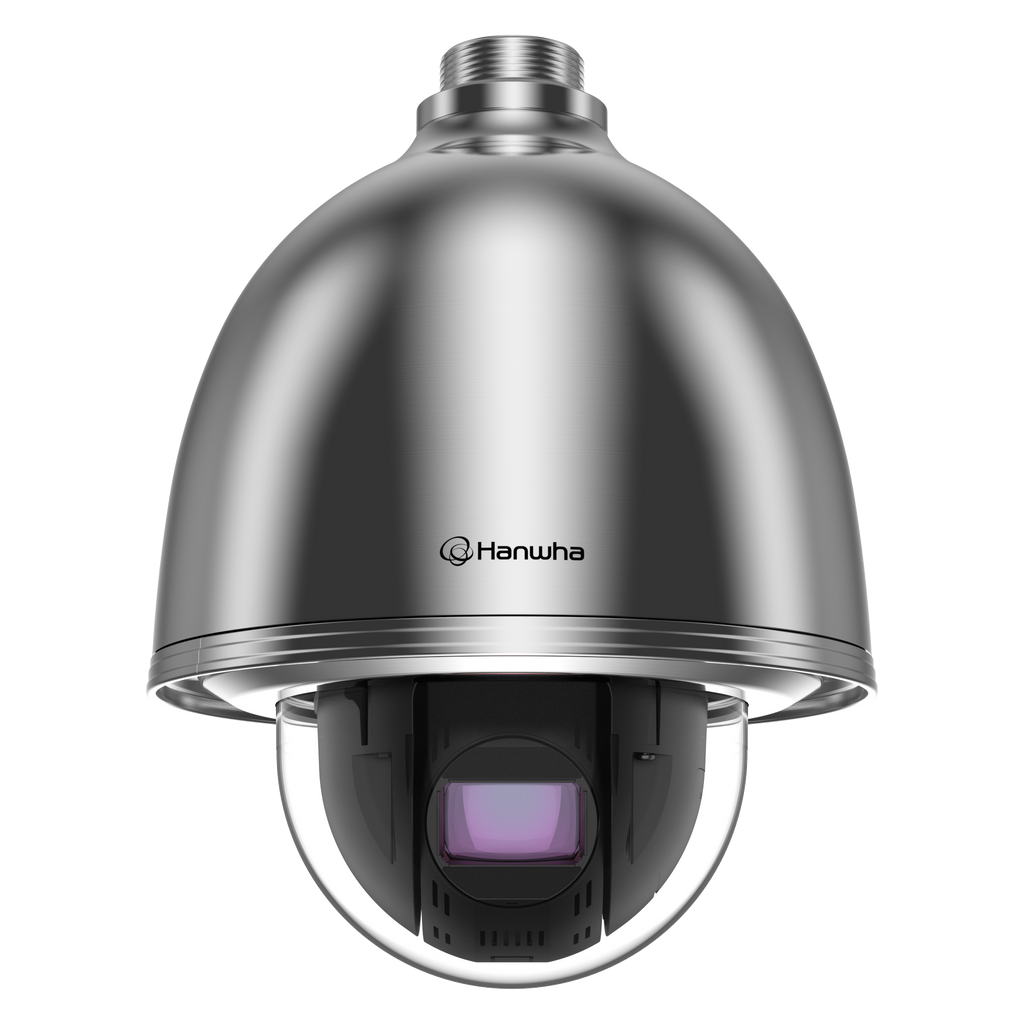

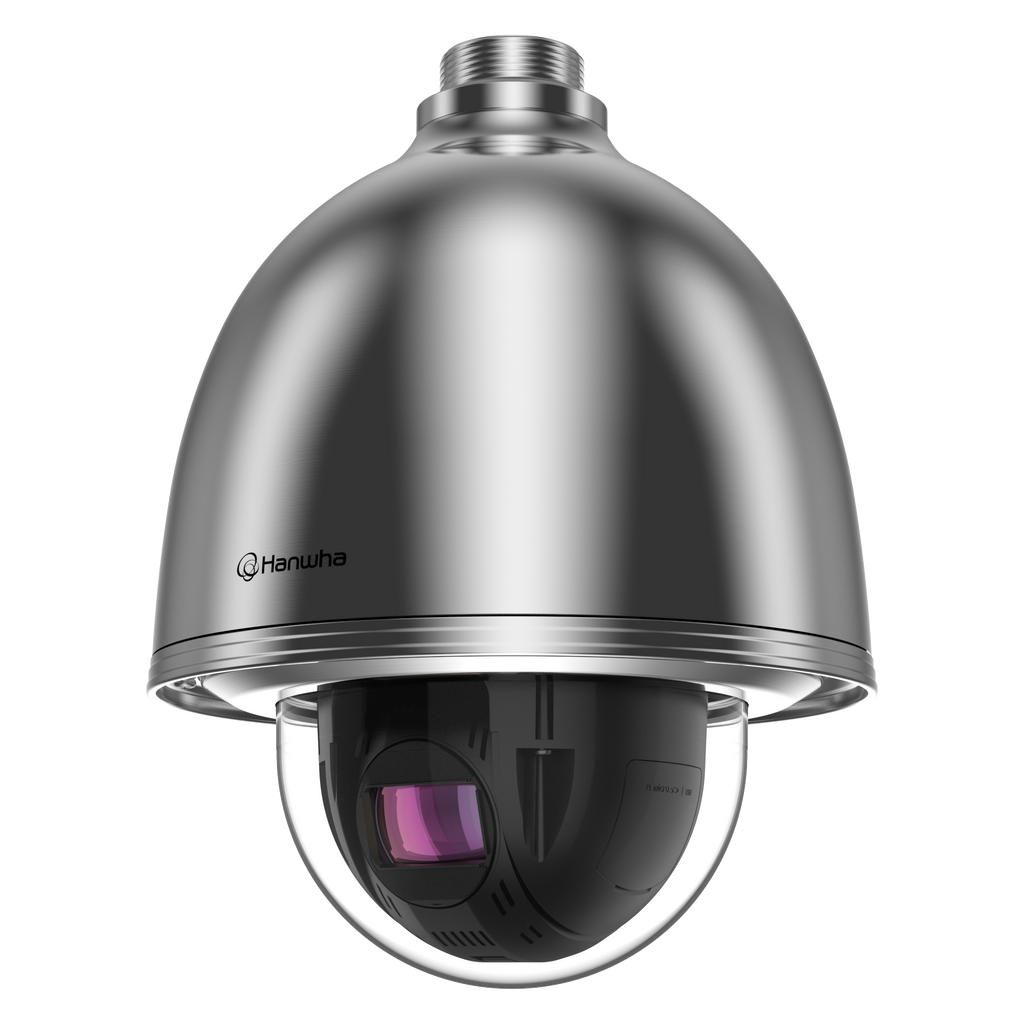

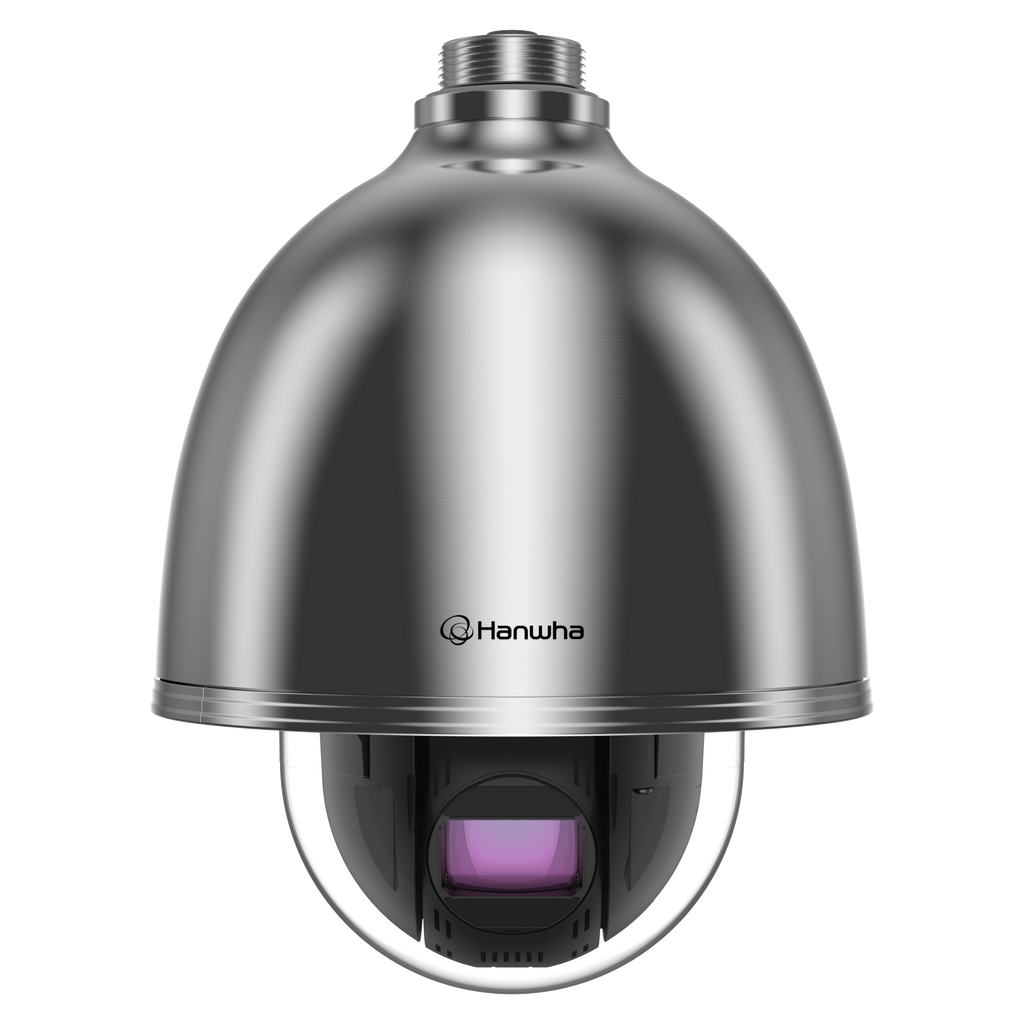

The Hanwha Vision QNP-6320HS is a rugged, stainless-steel 2MP PTZ network camera engineered for harsh and corrosive environments. With a powerful 32x optical zoom, 60fps performance, and advanced H.265 compression with WiseStream II, it delivers clear, detailed surveillance across wide industrial, marine, and outdoor applications.
Built with SUS316L stainless steel and certified to IP66/IP67, IK10, and NEMA 4X standards, this camera withstands extreme weather, saltwater exposure, and impact. Its wide dynamic range (120dB), gyro-based digital image stabilization, automatic defog, and low-light sensitivity ensure reliable imaging in challenging scenes.
Packed with intelligent analytics—including motion detection, tampering, audio detection, virtual line, intrusion, and auto-tracking—the QNP-6320HS enhances situational awareness and improves event response. With support for microSD edge recording, encrypted firmware, secure communication protocols, and ONVIF S/G/T compatibility, it integrates seamlessly into professional surveillance systems.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 1920 × 1080 (2MP) |
| Frame Rate | H.265/H.264: 60fps (60Hz), 50fps (50Hz); MJPEG: 30fps |
| Min. Illumination | Color: 0.05 lux; B/W: 0.005 lux (30IRE, 1/30s) |
| Lens | 4.44–142.6mm, 32x optical zoom, 32x digital zoom |
| Angle of View | H: 64.66°–2.29°; V: 38.08°–1.30° |
| Aperture | F1.6 (wide) – F4.4 (tele) |
| Focus Modes | Auto, Manual, One-shot AF, Focus Save |
| Pan Range / Speed | 360° endless; up to 700°/sec preset |
| Tilt Range / Speed | 90° to -15°; up to 300°/sec preset |
| Presets & Tours | 300 presets, Swing, Group (6), Trace, Tour, Auto-Run, Schedule |
| WDR | 120dB |
| Image Enhancements | SSNRV noise reduction, Defog, DIS with gyro |
| Analytics | Motion, Tampering, Audio Detection, Intrusion, Enter/Exit, Line Crossing, Direction, Digital Auto-tracking |
| Audio I/O | Via optional I/O box |
| Alarm I/O | Via optional I/O box |
| Edge Storage | microSD/SDHC/SDXC up to 256GB |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, HTTP/HTTPS, SSL/TLS, SNMP, QoS, DHCP, FTP, SMTP, DDNS, IGMP, LLDP, Bonjour, SRTP, more |
| API Support | ONVIF S/G/T, SUNAPI, Hanwha Vision Open Platform |
| Operating Temp | -35°C to +55°C (-31°F to +131°F) |
| Environmental Rating | IP66, IP67, IK10, NEMA 4X |
| Power | PoE+ (IEEE 802.3at), Max 23W (typ. 14W) |
| Material | SUS316L Stainless Steel |
| Dimensions | Ø227 × 299.2 mm (8.94 × 11.78 in) |
| Weight | 5.4 kg (11.93 lb) |
