Description

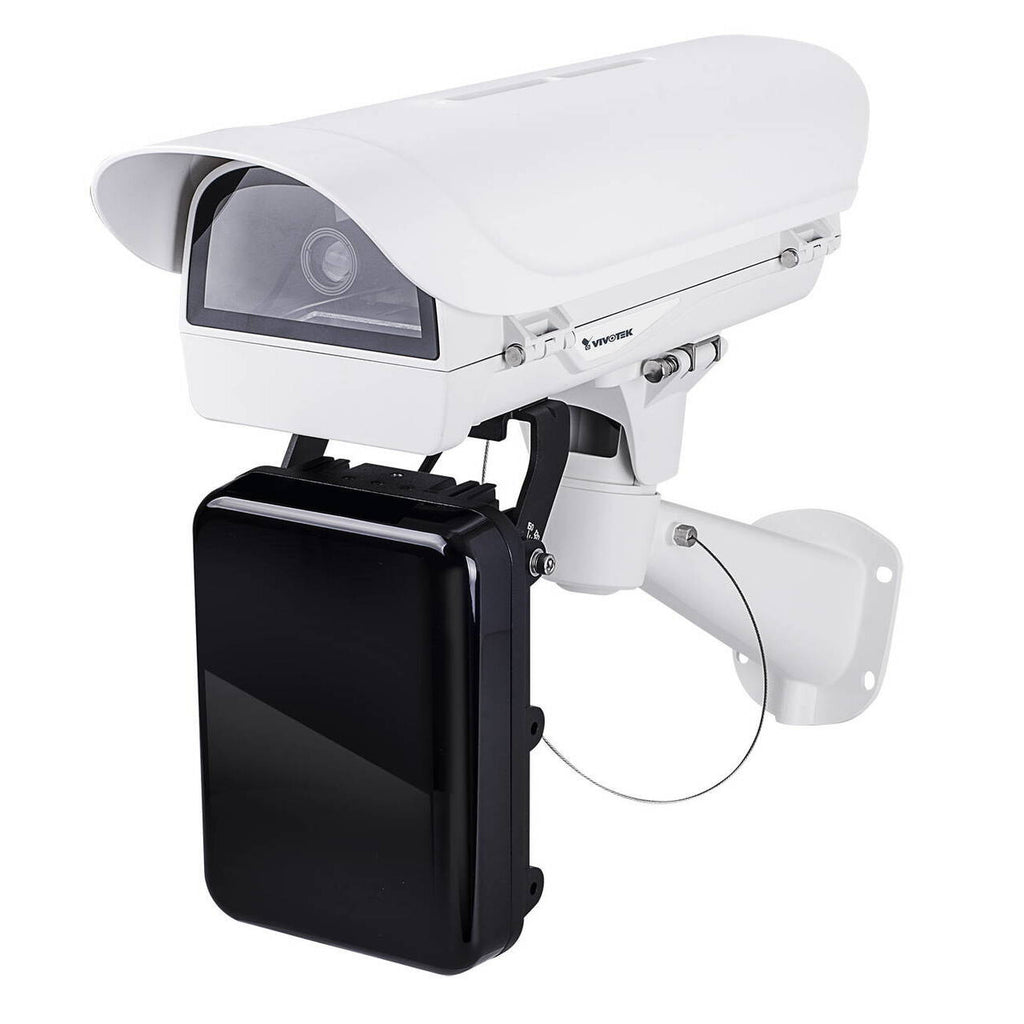

The Vivotek IP9165-LPCKIT-H1-v2 License Plate Capture (LPC) IP Security Camera is an advanced surveillance solution engineered to deliver precise license plate recognition on high-speed roadways and highways. Featuring a powerful new-generation SoC, 2GB RAM, and 8GB storage, this system offers exceptional processing power for high-performance LPR applications.
Equipped with the CA80I8-2040 IR illuminator with adjustable beam angles and glare-reducing headlight filters, the IP9165-LPCKIT-H1-v2 captures clear, legible plate images day and night—even from vehicles moving at speeds of up to 110 mph (180 km/h). Its Scene Mode technology optimizes exposure in various lighting conditions, while i-CS lens technology, electronic image stabilization (EIS), and remote IR beam adjustment simplify installation and ensure optimal performance.
Designed to capture plates across two traffic lanes with unmatched reliability, this camera is ideal for highway tolling, law enforcement, and traffic monitoring applications. Built for outdoor durability, it features an IP68 and IK10-rated housing and is certified for integration with leading LPR software platforms worldwide.
| Feature | Specification |
|---|---|
| Product Series | Vivotek Supreme Series |
| Specialized Feature | License Plate Recognition (LPR) |
| Resolution | 2MP |
| Max. FPS & Resolution | 60fps at 1080P |
| Processor (CPU) | Multimedia SoC (System-on-Chip) |
| Compression | H.265, H.264, MJPEG |
| Field of View (Horizontal) | 34.2° ~ 11.6° |
| Lens Type | Varifocal (Manual Zoom) |
| Lens Size | 12~40mm |
| Iris | P-iris |
| Sensor Type | CMOS |
| Sensor Size | 1/2" Sensor |
| Digital Zoom | 48x |
| Shutter Speed | 1/5 - 1/32000s |
| Wide Dynamic Range (WDR) | 140 dB |
| S/N Ratio | 66.2 dB |
| Video Output | 1x BNC |
| Network Interface | 1x RJ-45 10/100/1000 Mbps |
| SD Card Support | Yes |
| Serial Interface | 1x RS485 |
| Digital Input / Output | 2 / 2 |
| Audio Capability | Two-Way Audio |
| Audio Compression | G.711, G.726 |
| Audio Input / Output | 1x Channel / 1x Channel |
| Analytics | Motion Detection |
| Mobile App Support | iOS, Android |
| Captures License Plates (mph) | Up to 110 mph (180 km/h) |
| Night Vision Type | IR (Infrared) |
| Night Vision Range | Up to 918 ft (280 m) |
| Wavelength | 850 nm |
| Power Supply | 24 VAC / 12 VDC |
| Max Power Consumption | 110 W |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 0% to 90% (non-condensing) |
| Durability | Vandal-Proof, Weatherproof |
| Protection Code | IP68, IK10 |
| Environmental | Outdoor |
| Color | White |
| Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL, BIS, BSMI |
| Warranty | 3-Year Manufacturer Warranty |
| Included Components | CA80I8-2040 IR Illuminator, AE-23L, AM-21E Mount |
