Description

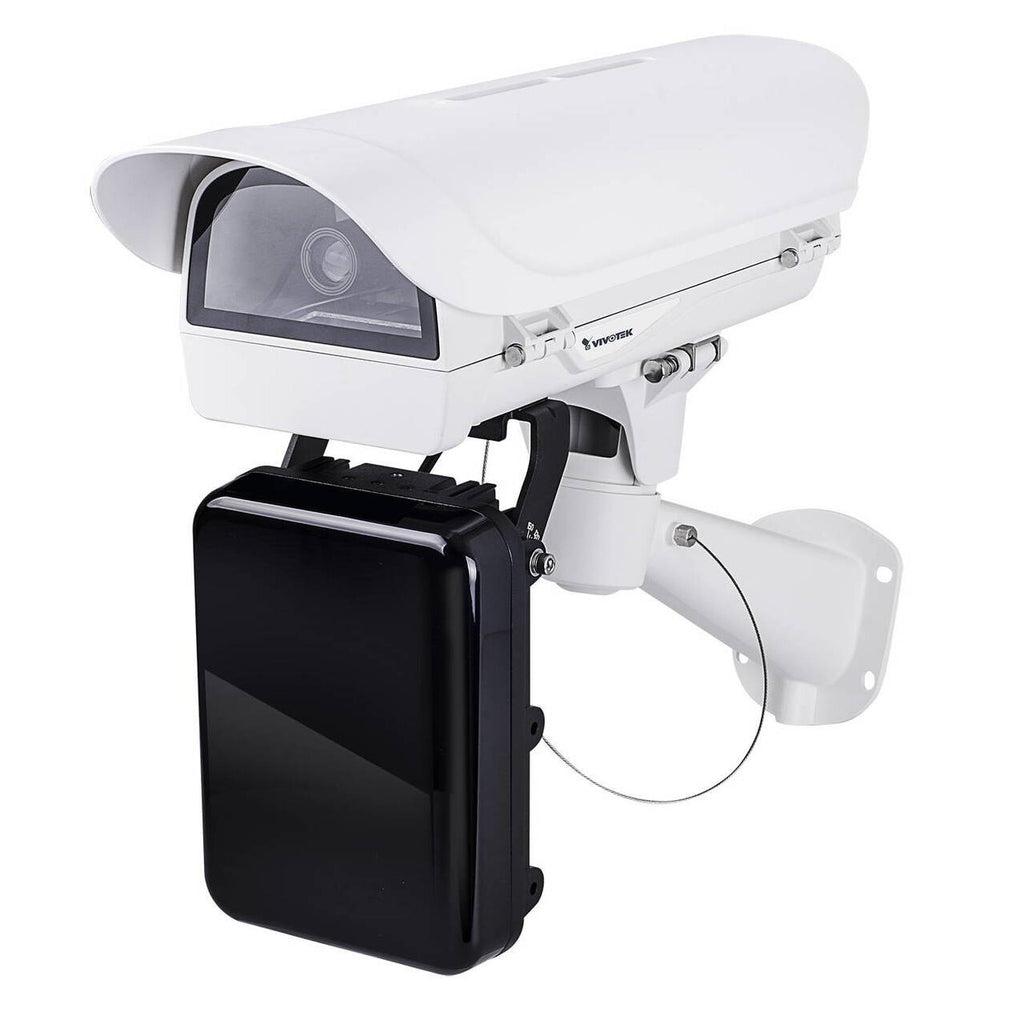

The Vivotek IP9165-LPCKIT-H2-v2 is a high-performance license plate capture (LPC) IP security camera solution designed for traffic monitoring and highway surveillance. Built with a powerful new-generation SoC, 2GB RAM, and 8GB storage, this all-in-one system ensures precise license plate recognition even in challenging lighting and weather conditions. Its advanced CA80I8-2040 IR illuminator with CVA technology offers adjustable beam angles, while the integrated headlight filter reduces glare for superior image clarity at all hours.
Supporting vehicle speeds up to 110 mph (180 km/h), the IP9165-LPCKIT-H2-v2 captures accurate plate data from fast-moving vehicles across one or two lanes. The intelligent i-CS varifocal lens (9–50mm) enables effortless installation and remote configuration, while features like Electronic Image Stabilization (EIS), 140 dB WDR, and scene mode optimization deliver unmatched image quality. Certified by leading LPR software vendors worldwide and housed in an IK10/IP68-rated weather- and vandal-resistant casing, this system is ideal for critical infrastructure, toll roads, parking enforcement, and security checkpoints.
| Specification | Details |
|---|---|
| Model | IP9165-LPCKIT-H2-v2 |
| Camera Type | License Plate Capture IP Security Camera |
| Image Sensor | 1/2" CMOS |
| Resolution | 2MP |
| Compression | H.265, H.264, MJPEG |
| Max. FPS & Resolution | 60 fps @ 1080P |
| Lens Type | Varifocal (Manual Zoom) i-CS Lens |
| Lens Size | 9–50 mm |
| Aperture | F1.5 – F1.6 |
| Iris Control | P-Iris |
| Field of View (Horizontal) | 42.8° – 8.3° |
| Digital Zoom | 48x |
| WDR | 140 dB WDR Pro II |
| Shutter Speed | 1/5 – 1/32,000 s |
| S/N Ratio | 66.2 dB |
| Sensor Size | 1/2" |
| IR Illuminator | CA80I8-2040 with CVA Adjustable Beam |
| IR Wavelength | 850 nm |
| Night Vision Range | Up to 918 ft (280 m) |
| Special Features | License Plate Recognition (LPR), Scene Mode, Anti-Glare Filter, Motion Detection |
| Vehicle Speed Capture | Up to 110 mph (180 km/h) |
| Digital Input / Output | 2 / 2 |
| Audio Input / Output | 1x / 1x |
| Audio Compression | G.711, G.726 |
| Video Output | 1x BNC |
| Network Interface | 1x RJ-45 10/100/1000 Mbps |
| Serial Interface | 1x RS485 |
| Power Supply | 24 VAC / 12 VDC |
| Max. Power Consumption | 110 W |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 0% – 90% (non-condensing) |
| Protection Code | IP68, IK10 |
| Color | White |
| Environmental | Outdoor |
| Durability | Weatherproof, Vandal-Proof |
| Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL, BSMI |
| Mobile Support | iOS, Android |
| ONVIF Compatibility | Profile G, S, T |
| Included Accessories | CA80I8-2040 IR Illuminator, AE-23L, AM-21E |
| Warranty | 3-Year Manufacturer Warranty |
