Description

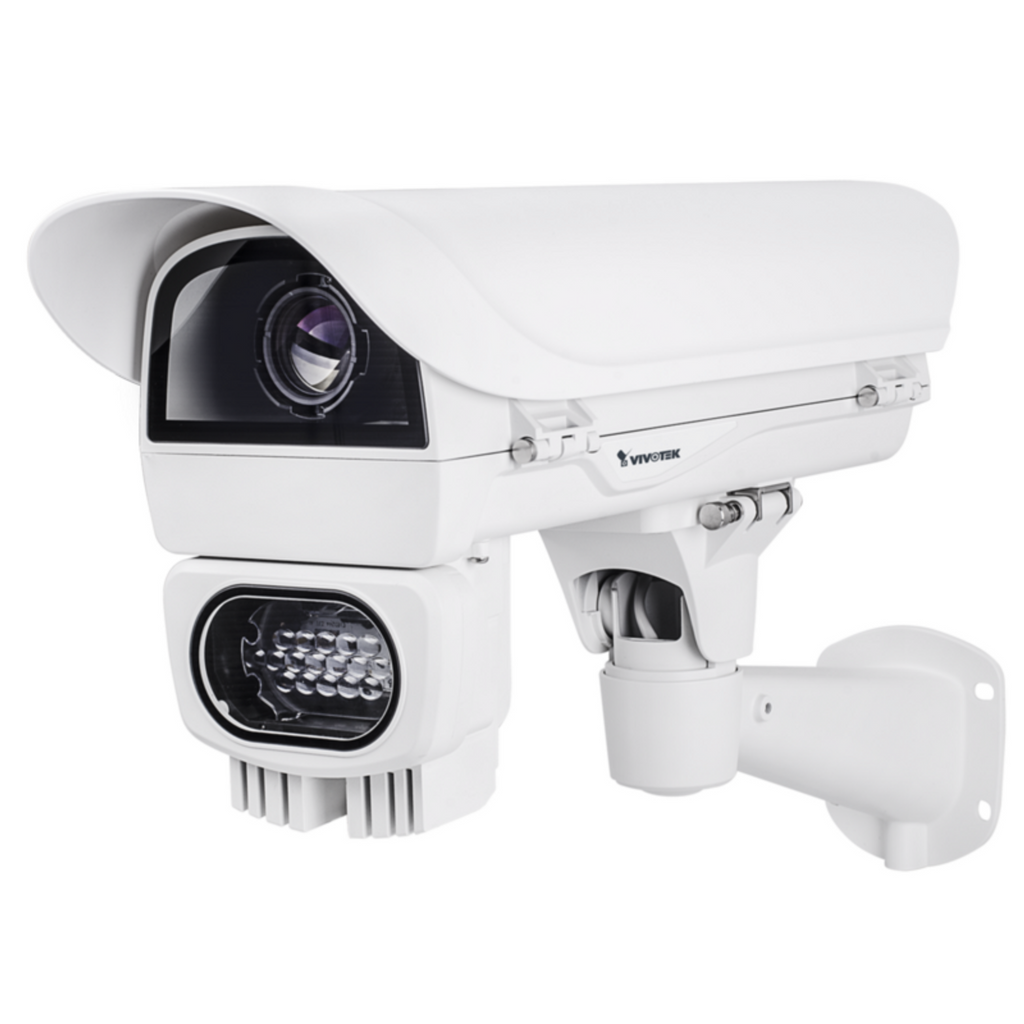

The Vivotek IP9165-LPC-KIT-A is an advanced, all-in-one license plate capture (LPC) solution engineered for superior vehicle monitoring in traffic enforcement, access control, and security applications. Leveraging a high-performance 2MP box camera with WDR Pro II (140 dB) and up to 60 fps video, this system ensures precise plate recognition under diverse lighting and weather conditions.
Equipped with a CVA Tech IR illuminator featuring adjustable beam angles and an integrated headlight filter, the IP9165-LPC-KIT-A excels in eliminating glare and capturing clear, readable license plates — even at night or in direct headlight exposure. The system is designed to capture vehicles moving at speeds of up to 60 MPH (90 km/h), covering up to two lanes with one camera, significantly reducing installation and maintenance costs.
The camera also features Digital Image Stabilization (DIS), remote back focus, and a dual-purpose view that provides both license plate detail and a wider scene overview for vehicle color, type, and brand identification. Its rugged IK10 vandal-resistant and IP68 weatherproof housing ensures reliable performance in the harshest outdoor environments. Certified by multiple LPR software platforms worldwide, the IP9165-LPC-KIT-A is the ideal solution for highway monitoring, urban traffic control, and perimeter security applications.
| Feature | Specification |
|---|---|
| Model | IP9165-LPC-KIT-A |
| Image Sensor | 1/2" Progressive CMOS |
| Max. Resolution | 1920 x 1080 (2MP) |
| Frame Rate | 60 fps @ 1920x1080 |
| WDR Technology | WDR Pro II, 140 dB |
| Lens | Vari-focal 12–40 mm, F1.8–F2.3, P-iris |
| Field of View | H: 11.6°–34.2° / V: 6.6°–18.7° / D: 13.3°–39.8° |
| Capture Range | Up to 35 m (Suggested: 10–20 m) |
| Max. Vehicle Speed | 60 MPH (90 km/h) |
| Captured Lanes | Roadside: 1 / Gantry: 2 |
| Shutter Time | 1/1,000 – 1/10,000 sec (max. 1/32,000 sec) |
| IR Illuminator | AI-109, 48W, 10°–30° remote adjustable beam angle, embedded |
| IR Range | 150 – 350 m |
| Anti-Glare Technology | Headlight filter + IR threshold automation |
| Day/Night Mode | Removable IR-cut filter |
| Digital Zoom | ePTZ: 48x (4x IE plug-in, 12x built-in) |
| On-board Storage | MicroSD/SDHC/SDXC, up to 128 GB |
| Video Compression | H.265, H.264, MJPEG |
| Streams | Up to 4 simultaneous |
| Audio | Two-way audio, G.711 / G.726 |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, RTSP/RTP, FTP, NTP, SNMP, 802.1X, etc. |
| Interfaces | RJ-45, Audio I/O, Digital I/O, RS485, BNC |
| Power Input | 24V AC/DC |
| Power Consumption | Max. 78 W |
| Operating Temp. | -20°C ~ 60°C (-4°F ~ 140°F), optional cold start to -40°C |
| Housing | IP68 weatherproof, IK10 vandal-resistant |
| Certifications | CE, FCC, UL, VCCI, C-Tick |
| Weight | 6.2 kg |
| Warranty | 36 months |
