Description

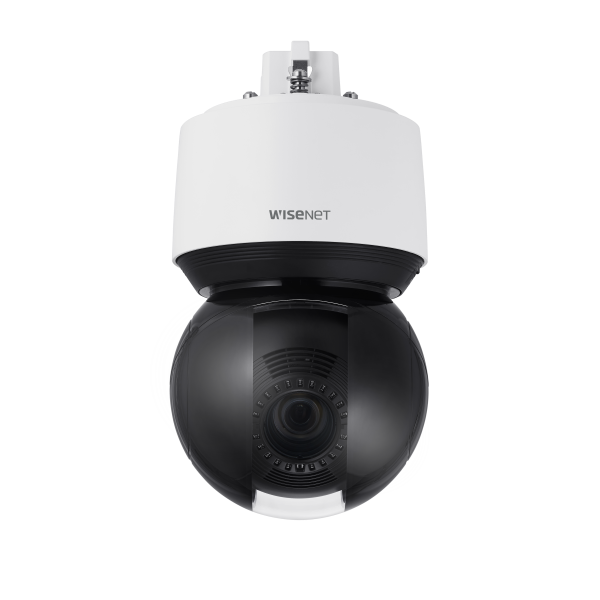

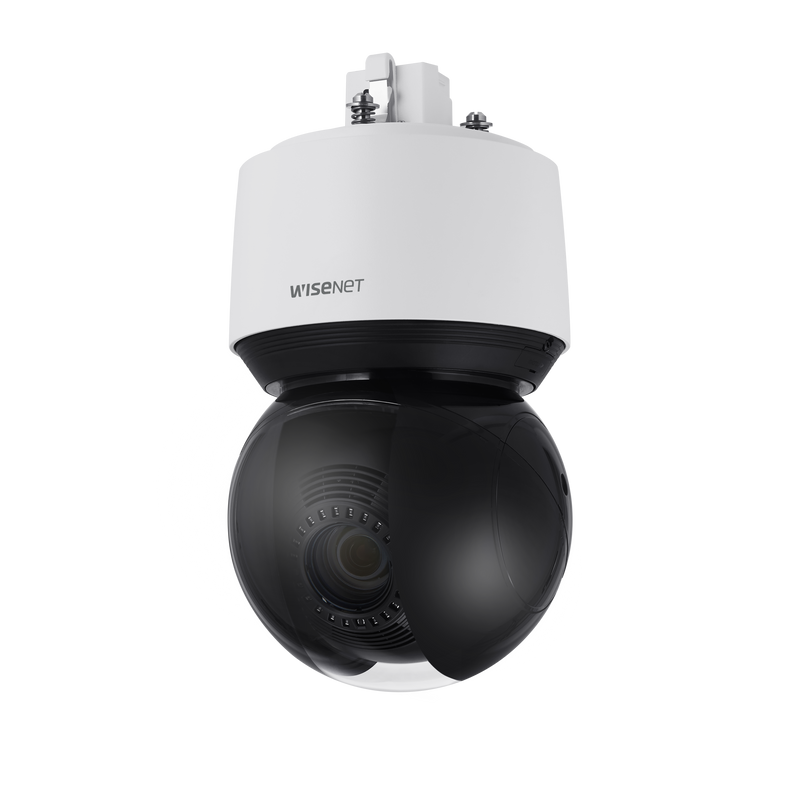

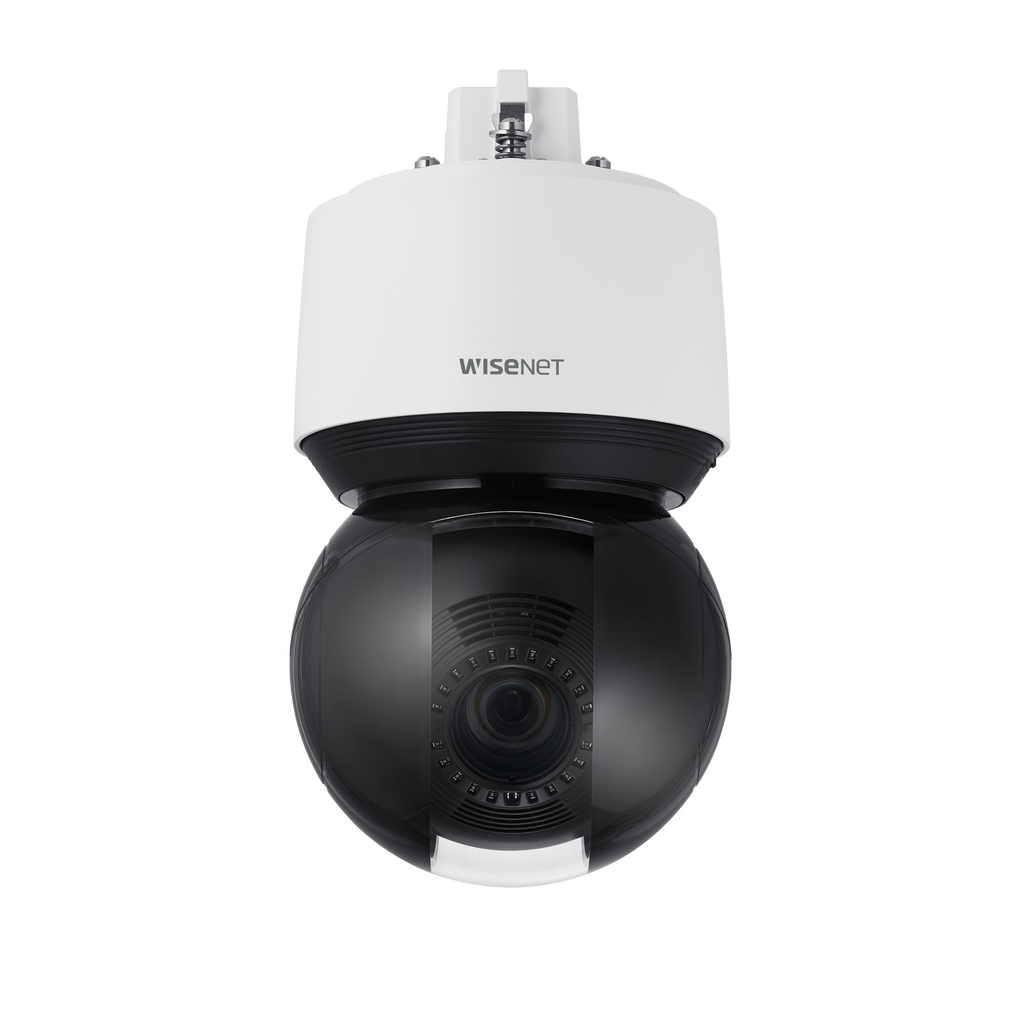

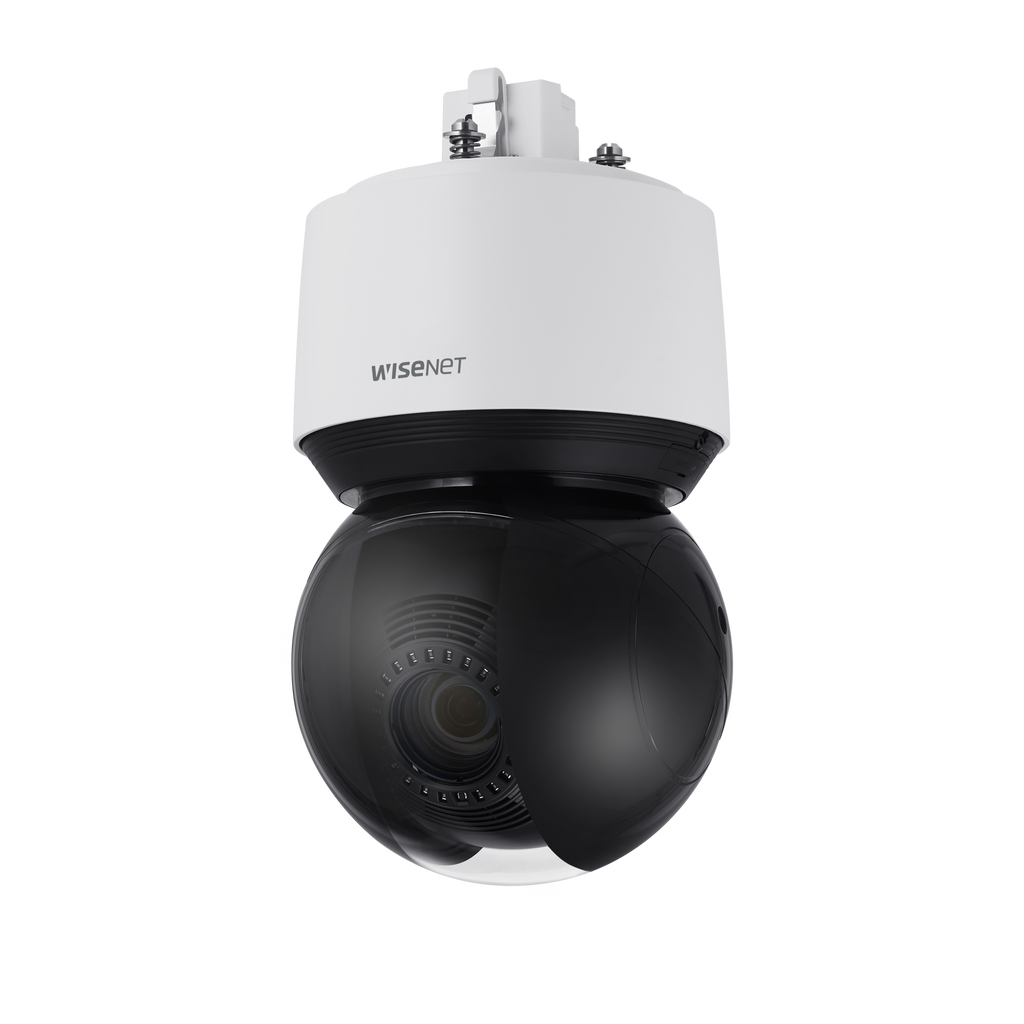

The Wisenet XNP-6400R is a high-performance 2MP outdoor PTZ camera engineered for long-range surveillance, harsh environments, and precision monitoring. Equipped with a powerful 40x optical zoom lens (4.25–170mm) and an impressive 200m IR range, it delivers exceptional clarity both day and night.
Supported by Extreme WDR (150dB), built-in gyro-based DIS, and advanced AI-powered analytics, this camera provides accurate object detection, auto-tracking, and event-triggered responses. The rugged IP66, IK10, and NEMA4X construction ensures durability against weather, dust, and impact, making it ideal for perimeter security, transportation hubs, industrial zones, and city surveillance.
With multiple streaming options, H.265/H.264/MJPEG codec support, WiseStream II compression, and PoE+ power input (IEEE 802.3bt Type 3), the XNP-6400R delivers top-tier performance with efficient bandwidth and power usage.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS, Max. 2MP (1920×1080) |
| Zoom | 40x optical (4.25–170mm), 32x digital, total 1280x |
| Field of View | H: 65.66° (Wide) ~ 1.88° (Tele) |
| Framerate | H.265/H.264 up to 60fps; MJPEG up to 30fps |
| Min. Illumination | Color: 0.05 Lux; B/W: 0 Lux with IR |
| IR Range | Up to 200m, Wise IR |
| WDR | Extreme WDR (150dB) |
| Image Enhancements | DIS (gyro), Defog, SSNRV noise reduction |
| Auto Tracking | Object auto-tracking (Person/Vehicle), Target lock |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream II |
| Streaming | Up to 10 profiles; Unicast (20 users) / Multicast (128 users) |
| Analytics | Directional, motion, face, loitering, tampering, virtual line, shock detection, fog detection |
| Privacy Masking | Up to 32 zones |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTPS, SSL/TLS, QoS, SNMP v1/v2c/v3, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS, digest authentication, IP filtering, 802.1X |
| Edge Storage | Dual microSD/SDHC/SDXC slots (up to 1TB total) |
| Pan/Tilt | Pan 360° endless (up to 700°/sec); Tilt -20° to 90° (up to 500°/sec) |
| Presets & Tours | 300 presets, swing, group, trace, tour, scheduling |
| Operating Temperature | -40°C to +50°C (startup above -30°C) |
| Durability Ratings | IP66, IK10, NEMA4X, NEMA-TS2 |
| Power | HPoE IEEE 802.3bt (Class 6, Type 3); 20W typical / 40W max |
| Construction | Aluminum body (white), polycarbonate head (black) |
| Dimensions / Weight | Ø158 × 293.3 mm; 3.2 kg |
