Description

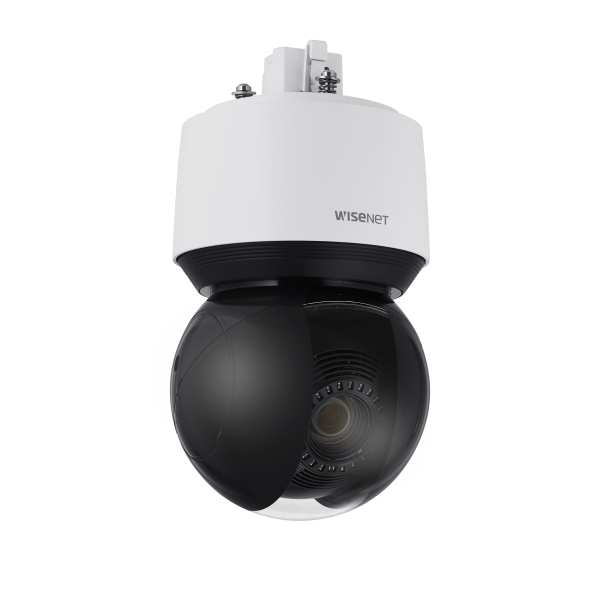

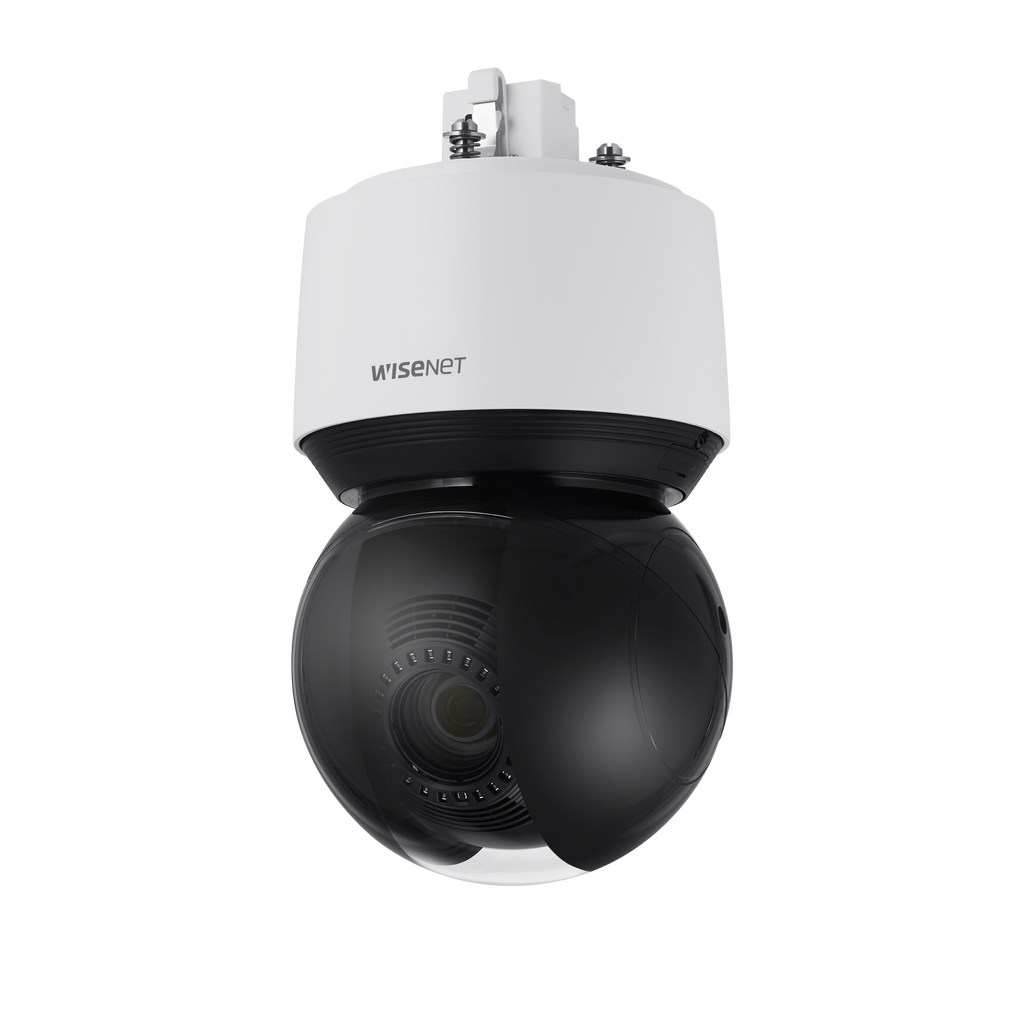

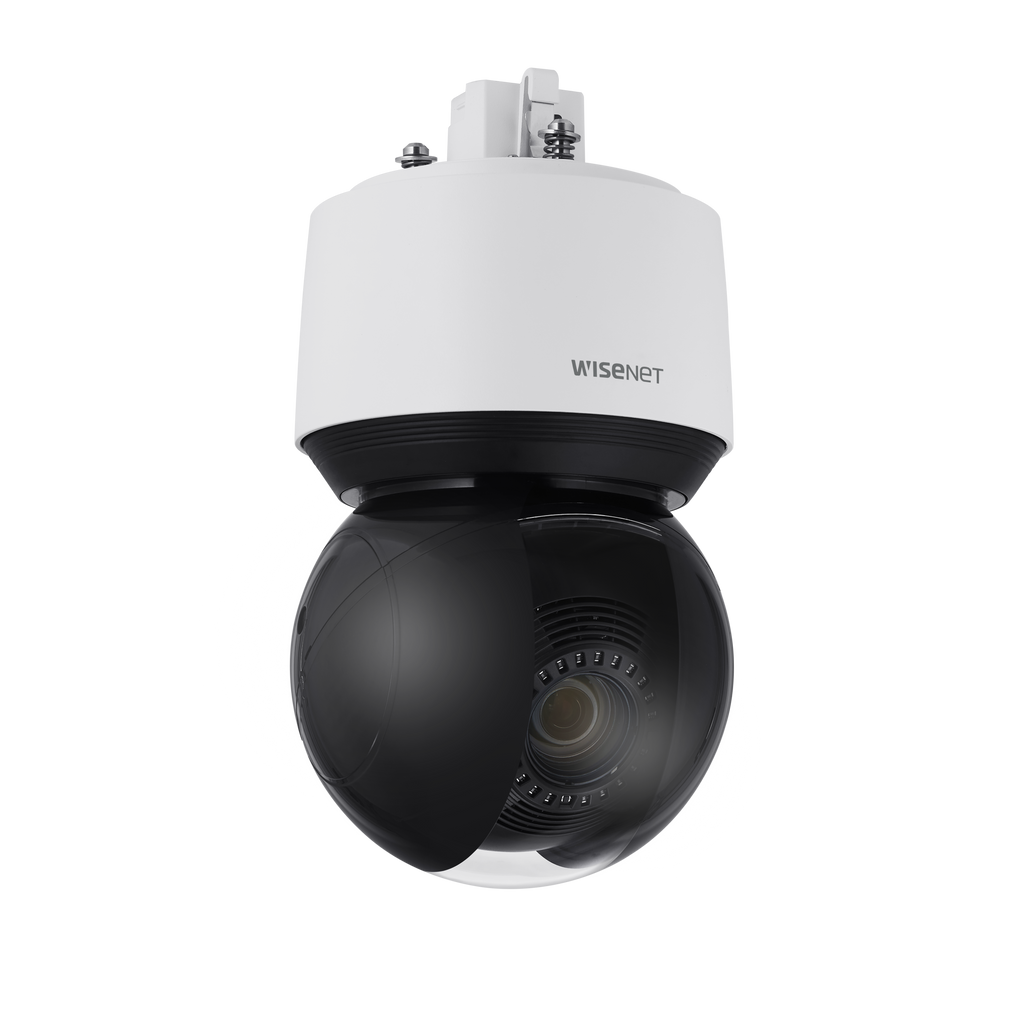

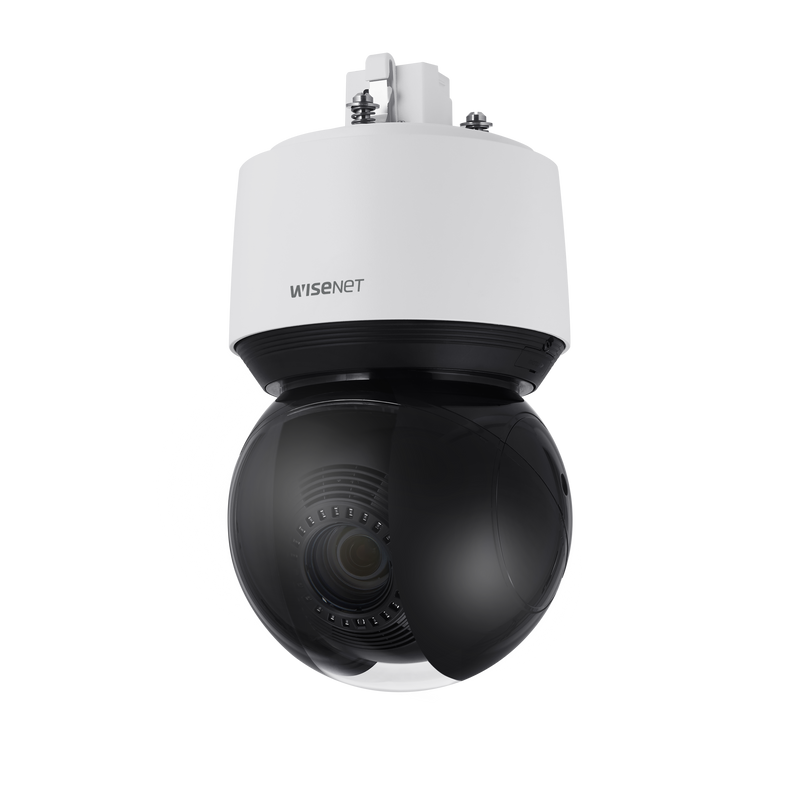

The Hanwha Vision XNP-6400 is a high-performance 2MP PTZ camera engineered for long-range surveillance, demanding outdoor environments, and mission-critical security operations. Equipped with a powerful 40x optical zoom, advanced object auto-tracking (person/vehicle), and 150dB WDR, it delivers exceptional clarity in diverse lighting and weather conditions.
Designed with the PTZ PLUS platform, the XNP-6400 features a compact and lightweight build with simplified cabling for rapid installation. Its rugged construction—rated IP66, IK10, NEMA4X, and NEMA-TS2 compliant—ensures reliable operation in harsh climates from -40°C to +50°C.
With support for H.265/H.264/MJPEG, WiseStream II compression, dual microSD edge storage (up to 1TB total), advanced analytics, and extensive cybersecurity protections, the XNP-6400 is built for both performance and resilience. Ideal for city surveillance, transportation hubs, industrial facilities, and perimeter security.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 1920×1080 (2MP) |
| Supported Resolutions | 1080p, 720p, 1280×1024, 1280×960, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max Frame Rate | H.265/H.264: 60fps (60Hz) / 50fps (50Hz); MJPEG: 30fps |
| Min. Illumination | Color: 0.05 lux (1/30s, 30IRE); B/W: 0.005 lux (1/30s, 30IRE) |
| Lens | 4.25–170mm, 40x optical zoom, 32x digital zoom |
| Aperture | F1.6 (Wide) ~ F4.95 (Tele) |
| Field of View (H) | 65.66°–1.88° |
| Field of View (V) | 39.4°–1.09° |
| Focus Modes | Auto, Manual, One-shot AF, Focus Save |
| Pan/Tilt Range | Pan: 360° endless; Tilt: 90° to -20° |
| Pan/Tilt Speed | Pan: up to 700°/sec; Tilt: up to 500°/sec |
| WDR | 150dB |
| Image Enhancements | DIS with gyro, Defog, BLC, HLC, SSDR, Flip/Mirror |
| Analytics | Motion, Tampering, Fog, Face detection, Audio detection, Sound classification, Shock detection, Virtual lines/areas, Object auto-tracking, Target lock |
| Compression | H.265, H.264, MJPEG; WiseStream II |
| Streaming | Up to 10 profiles, Unicast (20 users), Multicast |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTCP, RTSP, HTTP/HTTPS, FTP/SFTP, SMTP, SNMP v1/v2c/v3, QoS, UPnP, Bonjour, SRTP, MQTT, NTCIP 1205, more |
| API | ONVIF S/G/T, SUNAPI, Hanwha Open Platform |
| Cybersecurity | Secure boot, encrypted firmware, IEEE 802.1X, HTPM hardware security module, AES-256 SD encryption, UL CAP certification |
| Edge Storage | Dual microSD/SDHC/SDXC (max 1TB total) |
| Operating Temperature | −40°C to +50°C |
| Humidity | 0–100% RH (condensing) |
| Ingress/Impact Rating | IP66, IK10, NEMA4X, NEMA-TS2 |
| Power Input | PoE+ (IEEE 802.3at Class 4) |
| Power Consumption | Max 25W (typ. 20W) |
| Color Options | White or Black (RAL9003 / RAL9005) |
| Material | Aluminum, Polycarbonate |
| Dimensions | Ø158 × 293.3 mm (6.22 × 11.55 in) |
| Weight | 3.2 kg (7.05 lb) |
