Description

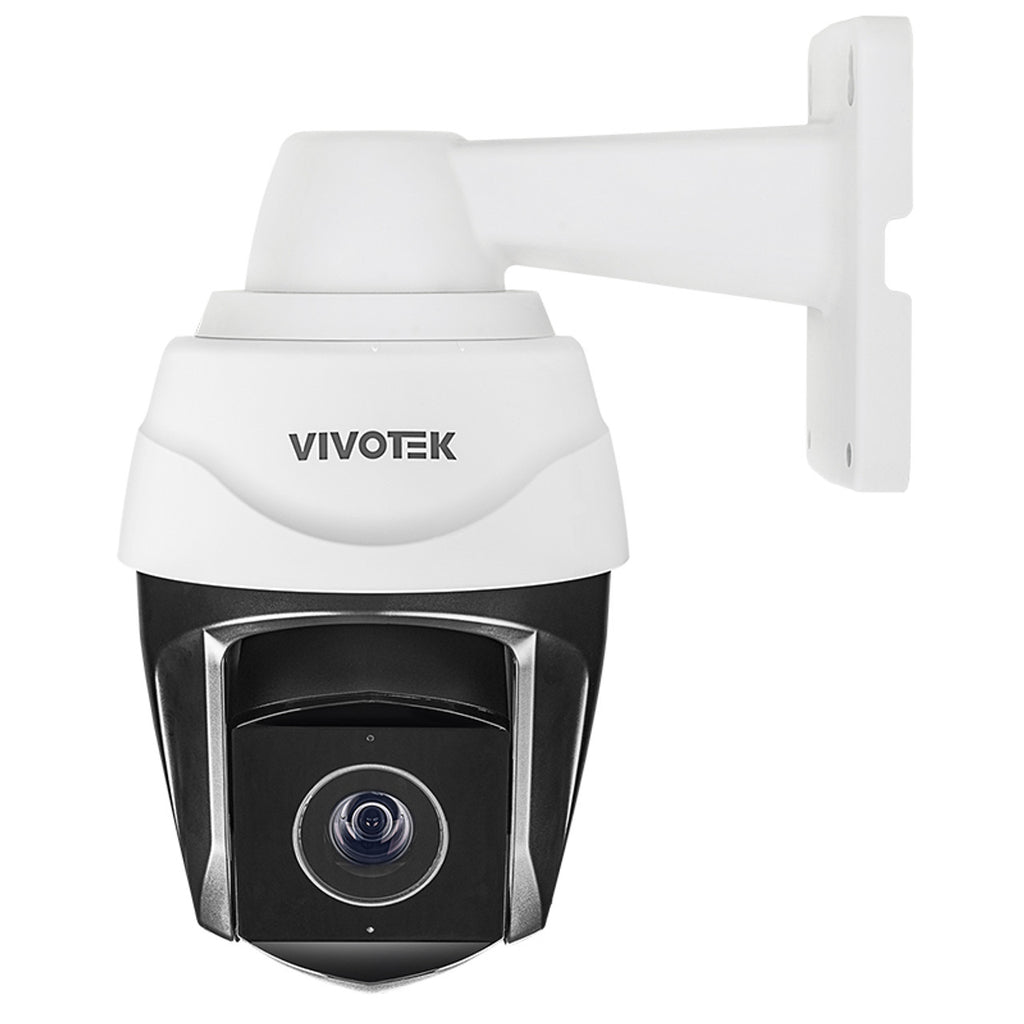

The Vivotek SD9368-EHL is a high-performance 2MP speed dome network camera designed for professional large-scale surveillance in critical outdoor environments. Equipped with a 40x optical zoom lens and advanced autofocus, it captures detailed full HD video at up to 60 fps, ensuring exceptional image clarity over wide areas or long distances. Its built-in Smart IR illuminators provide up to 250 meters of visibility in total darkness, while Smart Tracking Advanced technology with people-based deep learning enables precise tracking of moving targets for enhanced situational awareness.
Engineered for reliability, the SD9368-EHL features an IP66 and IK10-rated housing with NEMA 4X protection, making it resistant to dust, water, and vandalism. It operates flawlessly in extreme temperatures from -40°C to 60°C and includes Electronic Image Stabilization (EIS) for stable video in windy or high-vibration environments. Advanced security features such as Trend Micro IoT Security, HTTPS encryption, and signed firmware offer robust protection against cyber threats. With WDR Pro for superior image balance in challenging lighting, Smart Stream III for optimized bandwidth usage, and flexible storage options including MicroSD and NAS, this camera is ideal for city surveillance, transportation hubs, industrial facilities, and perimeter protection.
| Feature | Specification |
|---|---|
| Model | SD9368-EHL |
| Image Sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 1920 x 1080 (2MP) |
| Frame Rate | 60 fps @ 1920 x 1080 |
| Lens Type | 40x Optical Zoom, Auto Focus |
| Focal Length | 4.25 – 170 mm |
| Aperture | F1.6 – F4.95 |
| Iris Type | DC-iris |
| Field of View (FOV) | 65.70° – 1.88° (H), 39.39° – 1.09° (V), 73.03° – 2.13° (D) |
| Minimum Illumination | 0.04 lux (Color), 0.005 lux (B/W), 0 lux (IR on) |
| IR Illuminators | Built-in Smart IR up to 250 m |
| Pan Range / Speed | 360° endless / 450°/s (preset) |
| Tilt Range / Speed | -20° to 90° (auto flip) / 450°/s (preset) |
| Preset Positions | Up to 256 |
| Digital Zoom | Up to 32x |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Streams | Up to 3 simultaneous video streams |
| Dynamic Range | 120 dB (WDR Pro) |
| Image Enhancements | 3DNR, Defog, EIS, Smart Stream III, Exposure Control |
| Audio | Two-way audio (G.711, G.726), external line-in/out |
| Network Protocols | IPv4/IPv6, HTTPS, SNMP, RTSP, QoS, IEEE 802.1X, and more |
| Security Features | HTTPS, secure boot, signed firmware, Trend Micro IoT Security |
| Storage | MicroSD/SDHC/SDXC card, NAS |
| Smart Functions | Smart Tracking Advanced, Intrusion/Loitering/Line Crossing Detection, Face Detection |
| Power Input | AC 24V, DC 48V, IEEE 802.3bt PoE (Class 6) |
| Power Consumption | Max. 51W (IR on) / 26W (IR off) |
| Operating Temperature | -40°C to 60°C |
| Ingress Protection | IP66, IK10, NEMA 4X |
| Dimensions | 256 x 336 mm |
| Weight | 7.1 kg |
| Certifications | CE, FCC, UL, IK10, IP66, NEMA 4X, and more |
