Description

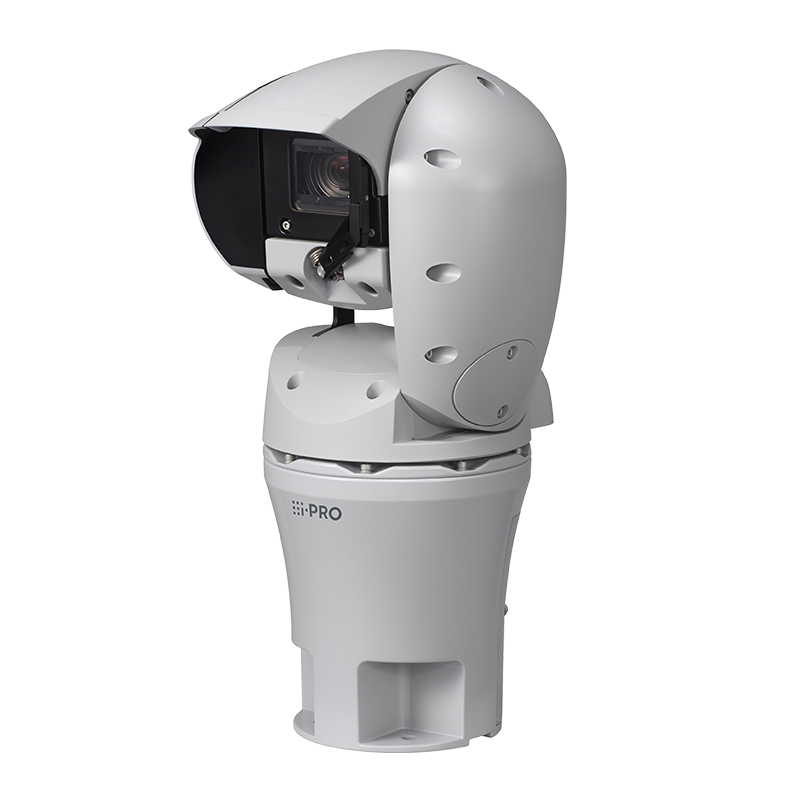

The i-PRO WV-X67310-Z4-3 is a high-performance 2-megapixel AI-powered rugged PTZ camera engineered for demanding outdoor surveillance. Built with a 40× optical zoom lens and AI auto-tracking, it delivers exceptional image clarity and intelligent monitoring across extreme environments.
Designed for reliability, it withstands wind speeds of up to 270 km/h (167 mph) and operates in temperatures ranging from −50 °C to +65 °C. The camera is certified IP66, IP68 and IK10 for superior protection against dust, water, and impact. Integrated FIPS 140-2 Level 3 Secure Element (EdgeLock SE050F by NXP Semiconductors) ensures data security and NDAA compliance.
With its Ambarella CV25M system-on-chip, the WV-X67310-Z4-3 supports up to two edge AI analytic applications such as AI Face Detection, People and Vehicle Detection, and AI Privacy Guard. This advanced platform enables real-time intelligent monitoring, reducing operator workload and enhancing situational awareness for critical infrastructure, transportation, and public-safety applications.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8-type CMOS image sensor |
| Effective Resolution | 2 megapixels (1920 × 1080) |
| Lens | 4.25 – 170 mm (40× optical zoom) |
| Digital Zoom | Up to 640× |
| Field of View (16:9) | H: 1.9° – 66° V: 1.1° – 39° |
| Minimum Illumination (Color) | 0.011 lx (F1.6, 1/30 s, AGC 11) |
| Minimum Illumination (B/W) | 0.006 lx (F1.6, 1/30 s, AGC 11) |
| Dynamic Range | Max 144 dB (Super Dynamic On) |
| Image Stabilizer | Built-in gyro sensor (30/25 fps mode) |
| Intelligent Functions | AI Auto Tracking, AI Face Detection, AI People / Vehicle Detection, AI Privacy Guard, AI Sound Classification (Gunshot, Yell, Vehicle Horn, Glass Break) |
| Max AI Apps Supported | 2 edge AI analytic applications |
| Pan / Tilt Range | Pan 360° endless / Tilt −90° to +90° |
| Pan / Tilt Speed | Manual 0.065° – 100°/s Preset up to 200°/s |
| Presets | 256 positions with Auto mode and Patrol |
| System on Chip | Ambarella CV25M |
| Video Compression | H.265 / H.264 / MJPEG |
| Max Streams | 4 simultaneous streams |
| Resolution Options | 1920×1080, 1280×720, 1280×960, 640×360, 320×180 and others |
| Audio Compression | G.711, G.726, AAC-LC |
| Network Interface | 10BASE-T / 100BASE-TX (RJ45) |
| Protocols Supported | IPv4/IPv6, HTTPS, SNMP, RTSP, SFTP, MQTT, ONVIF Profile M/S/T |
| Security | FIPS 140-2 Level 3 Secure Element (EdgeLock SE050F), GlobalSign® Certificate, IEEE 802.1X, SRTP, Signed Firmware |
| Power Supply Options | 24 V AC/DC or PoE++ (IEEE 802.3bt Type 4 Class 8) |
| Power Consumption | Approx. 61 W (AC), 60 W (DC), 54 W (PoE++ Class 8) |
| Operating Temperature | −50 °C to +65 °C (24 V AC/DC, PoE++ Class 8) |
| Humidity | 10 – 100 % (non-condensing) |
| Certifications | IP66, IP68, IK10, NEMA 4X/6P, MIL-STD-810H, UL, CE, FCC, EN55032 Class A |
| Wind Resistance | Operable up to 75 m/s (167 mph); Non-destructive up to 90 m/s (201 mph) |
| Dimensions (W × H × D) | 226 × 450 × 266 mm (8.9 × 17.7 × 10.5 in.) |
| Weight | Approx. 8.1 kg (17.9 lb) |
| Body Material | High-strength salt-resistant resin, die-cast gray (Munsell N7 semi-gloss) |
| Optional Accessories | WV-QWL503S-G, WV-QWL503-G, WV-QCN500S-G Mount Brackets; WV-QCA502 I/O Cable |
