Description

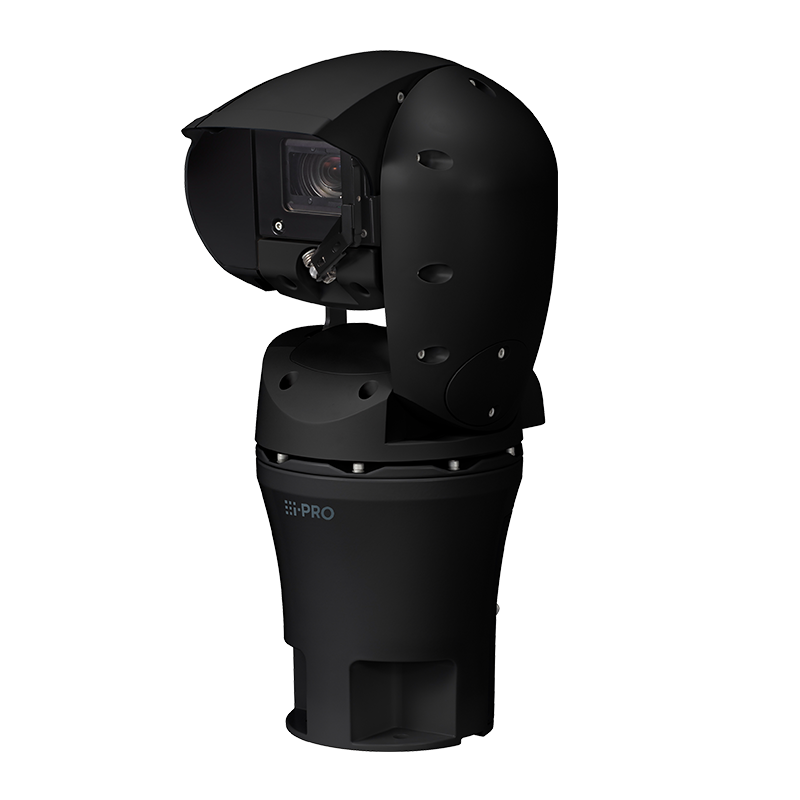

The i-PRO WV-X67310-Z4-1 is a 2MP AI-driven Rugged PTZ Camera engineered for superior performance in extreme outdoor environments. Featuring a 40x optical zoom lens and powered by the Ambarella CV25M SoC, it delivers ultra-clear, dynamic images with up to 144 dB wide dynamic range and intelligent auto exposure control.
This camera supports AI auto-tracking, AI people and vehicle detection, and up to two edge-based analytic applications, enabling real-time situational awareness for advanced security monitoring. Built to withstand harsh conditions, it’s certified IP66, IP68, and IK10, resistant to wind speeds up to 270 km/h (167 mph), and operational from -50 °C to +60 °C.
The WV-X67310-Z4-1 also incorporates FIPS 140-2 Level 3-certified Secure Element (NXP® EdgeLock® SE050F) for enhanced cybersecurity and full NDAA compliance, making it ideal for government, critical infrastructure, and enterprise deployments.
| Category | Specification |
|---|---|
| Model | WV-X67310-Z4-1 |
| Type | 2MP AI Rugged PTZ Camera |
| Image Sensor | Approx. 1/2.8-type CMOS |
| Effective Resolution | 1920 x 1080 |
| Optical Zoom | 40x |
| Digital Zoom | Up to 640x |
| Focal Length | 4.25–170 mm |
| Field of View (H/V) | 66°–1.9° (H) / 39°–1.1° (V) |
| Minimum Illumination | 0.011 lx (Color, F1.6, 1/30s, AGC:11) |
| Dynamic Range | Max. 144 dB (Super Dynamic: On) |
| Shutter Speed | 1/25–1/10,000 s (variable by mode) |
| Image Stabilizer | Built-in gyro sensor |
| AI Capabilities | AI Auto Tracking, AI Face/People/Vehicle Detection, AI Privacy Guard, AI Sound Classification |
| Max AI Applications | 2 edge AI analytic apps |
| SoC | Ambarella CV25M |
| Pan Range / Speed | 360° endless / up to 200°/s |
| Tilt Range / Speed | -90° to +90° / up to 200°/s |
| Preset Positions | 256 |
| Video Compression | H.265 / H.264 / MJPEG |
| Audio Compression | G.711 / G.726 / AAC-LC |
| Protocols Supported | IPv4/IPv6, HTTPS, SNMP, RTP/RTSP, MQTT, IEEE 802.1X, SRTP |
| Security | FIPS 140-2 Level 3 Secure Element, HTTPS, GlobalSign® certificate pre-installed |
| Simultaneous Streams | Up to 4 |
| Operating Temperature | -50 °C to +60 °C (-58 °F to +140 °F) |
| Operating Humidity | 10%–100% (no condensation) |
| Wind Resistance | Operable up to 270 km/h (167 mph) |
| Ingress Protection | IP66 / IP68 / NEMA 4X / NEMA 6P |
| Impact Resistance | IK10, IEC60068-2-75 (20J) |
| Corrosion Resistance | ISO12944-6 C5-M / ISO14993 |
| Power Source | 24V AC/DC, PoE++ (IEEE802.3bt Type 3/4) |
| Power Consumption | Up to 61 W |
| Dimensions (W x H x D) | 226 × 450 × 266 mm |
| Weight | Approx. 8.1 kg (17.9 lbs) |
| Finish | High-strength salt-resistant resin, black semi-gloss |
| Certifications | UL, CE, FCC, IEC, NEMA TS2, MIL-STD-810-H |
| Compliance | NDAA Compliant |
| Optional Accessories | WV-QWL503-B / WV-QWL503S-B / WV-QCN500-B / WV-QCA502 cable |
