Description

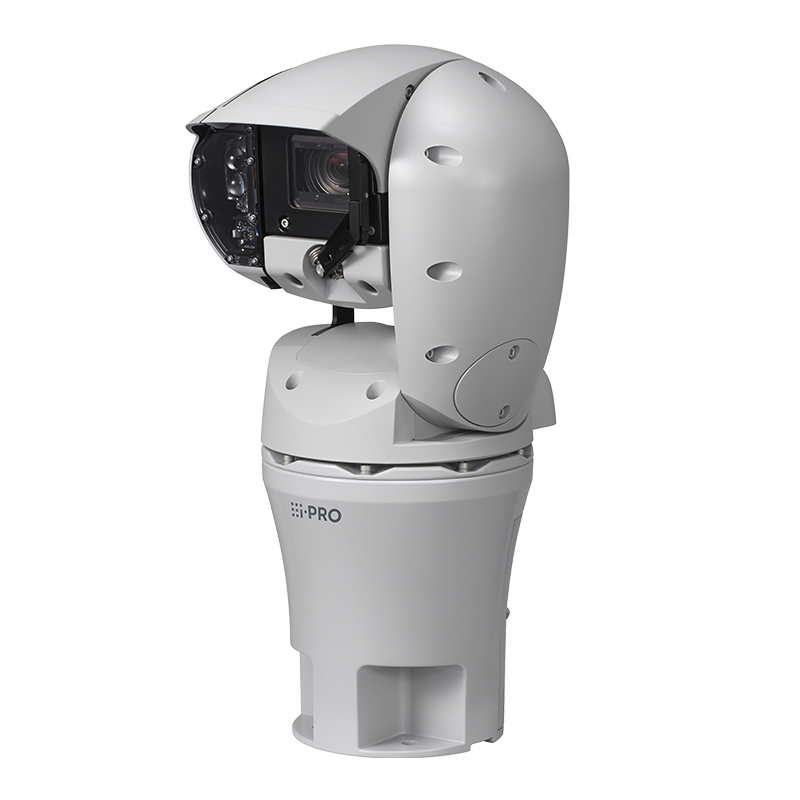

The i-PRO WV-X67310-Z4L3 is a high-performance 2MP AI-powered rugged PTZ camera engineered for extreme outdoor surveillance environments. Designed to deliver superior image clarity and reliability, this Aero Series PTZ camera features 40× optical zoom, integrated IR illumination up to 560 m, and advanced AI analytics for automated event detection and smart situational awareness.
Built for mission-critical operations, it offers IP66, IP68, and IK10 certifications, ensuring resistance to dust, water, impact, and extreme temperatures ranging from -50 °C to +65 °C. With FIPS 140-2 Level 3 Secure Element, NDAA compliance, and support for up to two edge AI applications, the WV-X67310-Z4L3 delivers robust security, intelligent monitoring, and future-ready performance for demanding surveillance infrastructures.
Ideal for airports, highways, seaports, and industrial facilities, this camera sets a new standard in resilience and AI-driven video intelligence.
| Category | Specification |
|---|---|
| Model | WV-X67310-Z4L3 |
| Image Sensor | 1/2.8-type CMOS sensor |
| Effective Pixels | 2 Megapixels (1920 × 1080) |
| Minimum Illumination | Color: 0.011 lx (F1.6, 1/30 s, AGC:11); B/W: 0 lx (IR On) |
| Optical Zoom | 40× (4.25 – 170 mm focal length) |
| Digital Zoom | Up to 640× |
| Max. IR Distance | 560 m (1837 ft) |
| Pan/Tilt Range | 360° endless pan / –90° to +90° tilt |
| Pan/Tilt Speed | Manual 0.065°–100°/s • Preset up to 200°/s |
| Preset Positions | 256 |
| Auto Mode | Auto track, Auto pan, Preset sequence, Patrol |
| Dynamic Range | Up to 144 dB (Super Dynamic On) |
| AI Analytics | AI VMD, Face Detection, Privacy Guard, People and Vehicle Detection, Occupancy Detection |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| Edge AI Support | Up to 2 apps (Ambarella CV25M SoC) |
| Video Compression | H.265 / H.264 / JPEG (MJPEG) |
| Resolutions | 1920×1080 / 1280×720 / 640×360 / 320×180 (16:9) • 1280×960 / VGA / QVGA (4:3) |
| Frame Rate | Up to 60 fps |
| Network Interface | RJ-45 (10BASE-T/100BASE-TX) |
| Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP, RTP, SNMP, MQTT, IEEE 802.1X, FTP/SFTP and more |
| Audio I/O | Input/Output terminals (pre-stripped wires, 600 Ω output) |
| External I/O | 3 × Alarm inputs, 1 × Relay output |
| Operating Temperature | –50 °C to +65 °C (24 V AC/DC, PoE++ Class 8) / –30 °C to +65 °C (PoE++ Class 6) |
| Ingress Protection | IP66 / IP68 / NEMA 4X / NEMA 6P |
| Impact Resistance | IK10 / IEC60068 compliant |
| Wind Resistance | Operable up to 270 km/h (167 mph) |
| Power Options | 24 V AC/DC, PoE++ (IEEE802.3bt Type 4 or Type 3) |
| Power Consumption | Max ~80 W (Class 8), ~50 W (Class 6) |
| Security | FIPS 140-2 Level 3 Secure Element, GlobalSign® Certificate, Signed Firmware, HTTPS Authentication |
| Certifications | UL, CE, FCC Class A, EN55032 Class A, NEMA TS2 |
| Dimensions (W × H × D) | 226 × 450 × 266 mm (8.9 × 17.7 × 10.5 in) |
| Weight | Approx. 8.1 kg (17.9 lb) |
| Construction | High-strength salt-resistant resin with clear glass front cover |
| Compliance | NDAA Compliant |
| Optional Accessories | WV-QWL503S-G, WV-QWL503-G, WV-QCN500S-G, WV-QCA502 (I/O Cable) |
